Check the interior panel first, located near the driver footwell, and test each slot with a multimeter before replacing any link. Verify voltage on both contacts to detect hidden breaks that are not visible through the plastic housing.
The engine compartment distribution unit sits close to the battery and handles high-current circuits such as cooling fan, ignition supply, and charging system. These positions typically use larger cartridge-style elements rated between 30A and 60A.
Inside the cabin, most circuits rely on 10A, 15A, and 20A blade elements assigned to lighting, power windows, wipers, and dashboard systems. Always match amperage ratings to prevent overheating wires or repeated failure during normal use.
If a specific slot fails repeatedly, inspect wiring near door hinges, under carpets, and around the engine where insulation may degrade. Systematic circuit checks help isolate faults without replacing working components.

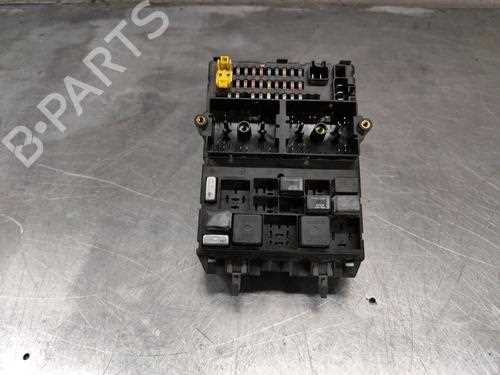

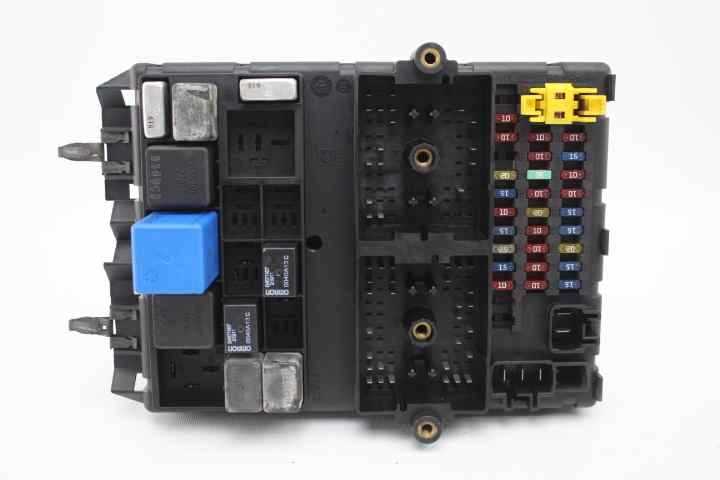

99 Grand Cherokee fuse diagram with full box layout and circuit details
Use the panel legend to match slot numbers with circuits before removing any link; this mapping shows which position feeds systems such as headlights, wipers, power windows, and control modules. Slots are grouped by function, allowing faster identification of related electrical issues.
Interior circuits typically rely on 10A, 15A, and 20A blade elements, while the engine compartment distribution unit handles higher loads with 30A–60A cartridge-style components for ignition, cooling fan, and charging system. Check both terminals of each slot with a multimeter to confirm proper current flow.
If several systems fail at once, inspect adjacent positions since related circuits are often placed together. Repeated failure in the same slot usually indicates wiring damage or a short in the connected component rather than a faulty link itself.
Location of interior and engine bay fuse boxes in 99 Grand Cherokee
Open the driver door and look at the side of the dashboard facing the door frame; the interior power distribution panel is hidden behind a snap-on cover. Pull the cover outward from the edge to expose rows of blade-style links assigned to cabin systems.
This cabin-mounted unit sits slightly below steering wheel level, making access possible without removing large trim sections. Use a flashlight to clearly see upper rows, especially when working in low light conditions.
Under the hood, locate the main distribution center near the battery. It is housed in a rectangular plastic enclosure with a removable lid secured by clips.
Inside this engine compartment unit, you will find larger cartridge-style elements and relays handling high-load systems such as cooling fan, ignition circuits, and charging system.
Access steps for the engine compartment unit:
- Release the retaining clips on the plastic cover
- Lift the lid straight up to avoid damaging seals
- Check the underside of the cover for slot identification markings
The cabin panel is protected from moisture and heat, while the engine compartment unit is exposed to temperature changes and vibration, which can affect connections over time.
Inspect terminals for discoloration, melted plastic, or looseness when accessing either location. Pay extra attention to the engine area, where heat-related wear is more common.
Keep both locations clean and free of debris, as dirt or corrosion can interfere with proper electrical contact and lead to intermittent faults.
