Check the cabin-mounted power distribution panel first: in the 1995 compact sedan by Toyota, it sits beneath the dashboard on the driver’s side. A second unit is placed in the engine compartment near the battery. Each section controls separate groups of circuits–interior lighting, ignition system, cooling fans, and charging lines–so identifying the correct panel prevents accidental shutdown of unrelated systems.
Use the labeled grid printed on the cover or inside the service manual to match each protective element with its assigned component. Ratings typically range from 7.5A to 30A; installing a higher-rated insert risks wiring damage. For example, the heater circuit usually uses a 30A link, while dashboard illumination relies on a 7.5A slot. Keep replacements identical in amperage and type.
Focus on common failure points: worn contacts in older vehicles often affect the radio, cigarette lighter, and brake lights. If multiple accessories stop working simultaneously, inspect shared power lines rather than individual consumers. A simple continuity test with a multimeter helps confirm whether the protective element has burned out or if the issue lies deeper in the wiring harness.
Keep a printed reference chart in the glove compartment for quick troubleshooting on the road. This saves time when dealing with sudden electrical faults and reduces the risk of pulling the wrong component during diagnostics.
1995 Toyota Compact Sedan Electrical Panel Layout
Use the interior circuit panel under the driver-side dash to quickly identify power distribution: the upper row typically handles lighting and signaling, while the lower section feeds ignition-related circuits and accessories; always match amperage ratings exactly when replacing a blown link to avoid wiring damage.
The engine compartment power hub sits near the battery and includes high-capacity links for the cooling fan, charging system, and main relay supply; a 30A or 40A strip usually protects the radiator fan motor, while a separate 50A line secures the alternator output, and misplacement here can lead to overheating or charging failure.
Inside the cabin, look for labeled slots such as “TAIL,” “STOP,” and “TURN,” each corresponding to rear lights, brake lamps, and indicators; typical values range from 10A to 15A, and swapping with a higher rating can melt insulation, while a lower rating may blow instantly under normal load.
For audio and interior electronics, a dedicated 15A circuit often marked “RADIO” or “CIG” supplies the stereo and accessory socket; if both stop working simultaneously, inspect this position first before checking wiring continuity or ground points.
Common Fault Locations
Repeated failures in the same slot usually indicate a short circuit in the connected component, such as a worn wire in the trunk harness or moisture intrusion in exterior lamp housings; tracing the line from the panel outward helps isolate the exact break point.
Another frequent issue appears in the ignition-linked circuit marked “IGN” or “GAUGE,” typically rated around 10A; when this link fails, the instrument cluster, warning lights, and sometimes the starter signal may stop functioning, pointing to either a faulty ignition switch or a damaged wire near the steering column.
Practical Replacement Tips
Always use a puller tool or insulated pliers when removing a blown element, verify the metal strip inside for breaks, and keep a small set of spare links (10A, 15A, 20A, 30A) in the glove compartment; after installation, turn on the associated system immediately to confirm stable operation without intermittent loss of power.
Exact location of fuse boxes in 1995 Toyota Corolla and how to access them safely
Open the driver-side door and inspect the lower dashboard panel directly above the footwell; the primary electrical panel is mounted behind a small plastic cover that snaps out with light pressure. Use a flat plastic trim tool instead of a metal screwdriver to avoid scratching the panel edges and to prevent accidental contact with live terminals.

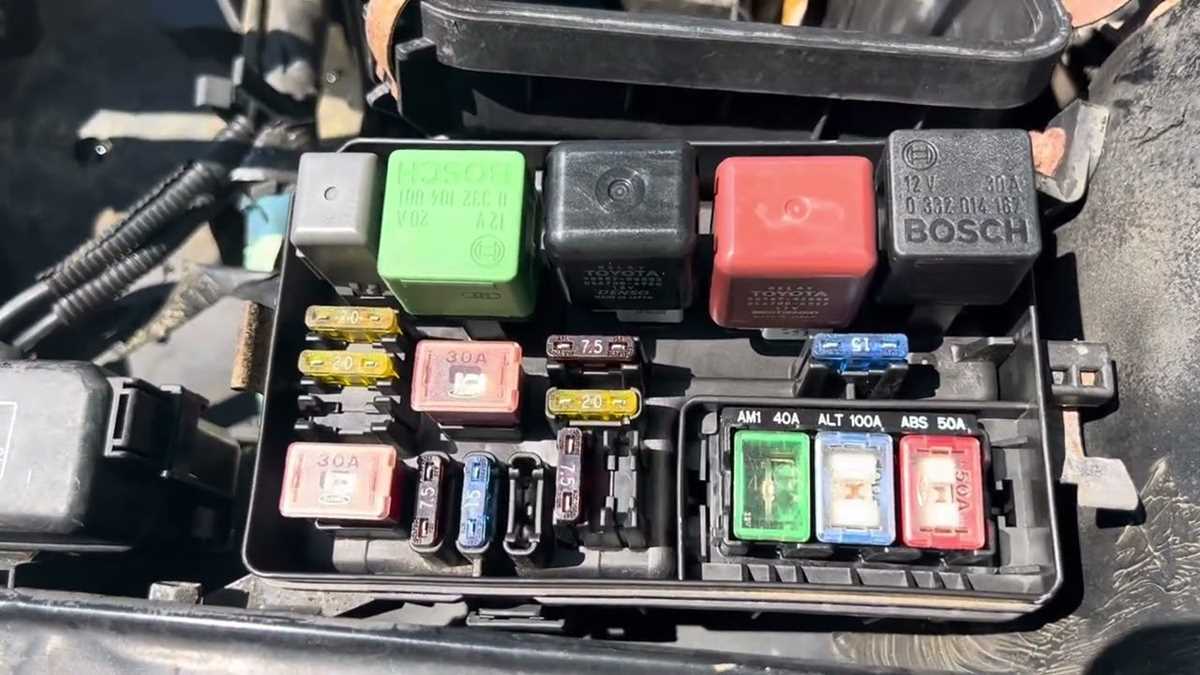

Under the hood, the second power distribution unit sits near the battery on the left side of the engine bay. It is enclosed in a rectangular black housing with a clipped lid. Release the side tabs evenly with your fingers; forcing one side can crack the casing or warp the seal, allowing moisture inside.
Before touching any component, disconnect the negative battery terminal using a 10 mm wrench. This reduces the risk of short circuits and protects onboard electronics. Wait at least 60 seconds after disconnection so residual current in capacitors dissipates fully.
Access sequence for the interior panel:
- Slide the driver seat back for clearance.
- Locate the rectangular access cover beneath the steering column.
- Insert a plastic pry tool into the side notch.
- Gently pull until clips release without bending.
- Use the built-in puller tool (usually clipped inside) to remove elements.
Access sequence for the engine compartment unit:
- Ensure the engine is off and cool to the touch.
- Release the hood latch and secure the hood prop.
- Find the black enclosure adjacent to the battery.
- Press both locking tabs simultaneously.
- Lift the lid vertically to avoid stressing hinges.
Wear insulated gloves and keep metal tools away from exposed contacts. Replace covers tightly after inspection to maintain protection against dust and moisture. If clips feel loose or brittle, replace the cover rather than forcing it back, as poor sealing can lead to corrosion and intermittent electrical faults.
