Check the driver side under-dash power distribution panel first and match each slot number with the circuit chart before replacing any blown element. Use a multimeter to verify voltage on both sides of each link, as visual inspection alone may not reveal internal breaks.
The electrical system in this compact car uses clearly labeled circuits and color-coded conductors to separate functions like lighting, ignition, and accessories. Typical ratings range from 10A for smaller loads such as interior lights to 30A for systems like power windows or cooling fans. Matching these values prevents overload and repeated failures.
Inspect terminals and contact clips inside the panel housing for corrosion, heat marks, or looseness. Poor connections can interrupt current flow without visible damage. Disconnect the battery before handling connectors and confirm all replacements match original ratings to maintain stable operation.

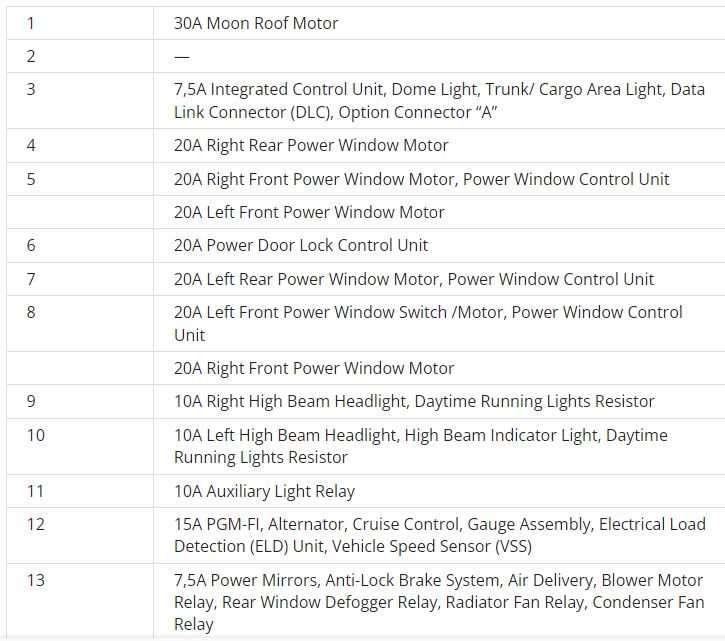

1995 Acura Integra Fuse Box Diagram with Panel Locations and Circuit Details
Locate the under-dash power distribution panel on the driver side and the engine compartment unit near the battery, then match each numbered slot with the factory circuit chart before testing. Confirm continuity with a multimeter across both terminals of each protective element.
The electrical layout divides circuits by function, each with specific amperage ratings and routing paths. Typical assignments include:
- 10A–15A for interior lighting and radio
- 20A for ignition and fuel system components
- 30A for power windows and cooling fans
- Dedicated relays for starter and main power control
Trace conductor colors from the panel to each component to confirm proper routing. Common color codes include yellow for lighting circuits, black for ground, and white with stripes for switched power lines. This method helps identify breaks or incorrect splices in older harnesses.
Check the cover of each panel for a printed circuit map showing slot numbers and component names. If missing, refer to a service manual to avoid incorrect identification during repairs or replacements.
Inspect terminals and connectors for heat damage or corrosion, especially in high-load circuits. Clean contacts and ensure tight connections to prevent intermittent electrical faults across multiple systems.
How to Locate Interior and Engine Bay Fuse Panels in 1995 Acura Integra

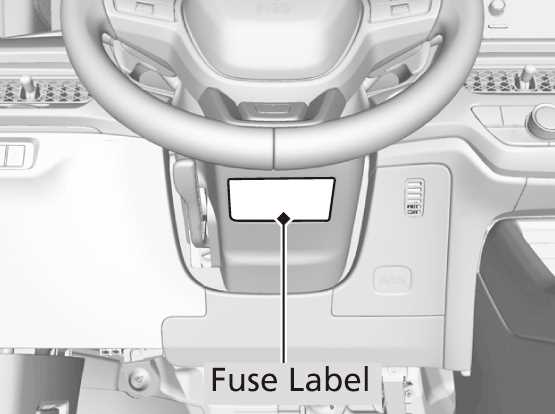

Open the driver side door and remove the lower dash cover to access the interior power distribution panel positioned near the steering column. Use a trim tool to release clips without damaging plastic edges and expose the panel with numbered slots.
Lift the hood and locate the engine compartment unit near the battery on the passenger side, protected by a plastic cover with locking tabs. Press the tabs and lift the cover to reveal high-amperage circuits connected to systems such as cooling fans, ignition, and main power supply.
Check the inside of each cover for a printed layout showing slot numbers and assigned systems. This reference helps identify circuits for lighting, fuel delivery, and accessory components without guessing or tracing wires blindly.
Inspect surrounding harnesses and mounting points for wear, heat marks, or corrosion. Clear access to both panel locations allows faster troubleshooting and reduces the risk of disconnecting the wrong circuit during repairs.
