Locate the panel behind the glove compartment for direct access to all circuitry pathways. Most units from this model year position the power distribution cluster on the passenger side, mounted low for ease of inspection. Inspect connectors for corrosion or loose terminals before attempting replacements to prevent unintended shorts.
Reference numeric labeling on each relay and protective element to identify specific circuits. Components controlling headlights, turn indicators, and HVAC systems are often grouped together, while ignition-related pathways are positioned closer to the firewall. Mark each slot with a temporary tag if you plan to remove multiple elements simultaneously.
Follow amperage ratings printed on the panel edge when swapping out protective devices. Using a higher rating can damage wiring harnesses, while a lower rating may trigger repeated interruptions. Always check continuity with a multimeter before reconnecting the harness to confirm proper function.
Keep a small flashlight or inspection mirror handy for recessed connectors and hidden screws. Accessing the rear portion of the layout often requires removing adjacent trim pieces, and having direct lighting ensures precise placement of each component. Document the original configuration with photos to avoid confusion during reassembly.
Replace worn fuses and relays with exact replacements specified for 1989 models. Substituting modern equivalents can cause intermittent faults or overheating. Secure each cap and cover tightly to maintain proper grounding and protect the circuitry from dust and moisture intrusion.

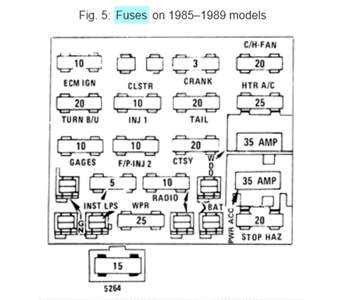

89 Camaro Electrical Panel Layout

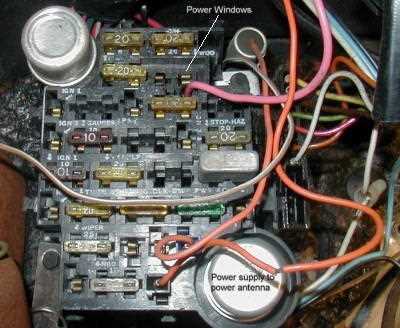

Locate the under-dash power module on the driver’s side to access the 1989 Camaro circuit layout. Each miniature protective device is labeled with amperage ratings from 10A to 30A, matching systems such as headlights, horn, and radio. Ensure the ignition is off before inspecting connections to prevent short circuits.
The engine compartment contains a secondary protective unit for high-current accessories. Terminals are arranged in a rectangular grid, with larger gauge wiring for the cooling fan and starter relay. Inspect the metal contacts for corrosion and apply dielectric grease if needed to maintain conductivity.
Interior controls like the heater blower, turn signals, and cigarette lighter draw power from the front panel. Replace any worn or blown element with an identical rating. Misplacing a higher-amp component risks melting wires, while a lower-amp device will fail under normal load.
Keep a detailed reference chart nearby. Each position corresponds to a specific electrical function, from fuel pump operation to instrument cluster illumination. Some positions are labeled with codes such as “IGN” for ignition circuits or “ACC” for accessories, allowing quick diagnostics without trial and error.
Routine checks every 12 months prevent unexpected failures. Remove the cover carefully to avoid damaging the retaining clips. Clean the surrounding area to avoid dust and moisture intrusion, which can trigger false interruptions in critical circuits.
Locating the Electrical Panel in a 1989 Camaro
Check under the dashboard on the driver’s side first; the main electrical access is mounted near the left kick panel, just above the carpet line. You may need to remove a small plastic cover secured by clips to reach the assembly.
Another placement is beneath the hood, close to the firewall on the passenger side. It is a rectangular unit with multiple colored slots for connectors. Ensure the engine is off before handling any terminals.
Accessing the compartment may require sliding the driver’s seat back for better clearance. Look for a panel labeled with miniature icons or numbers indicating circuits, which helps identify the connectors without guesswork.
- Driver’s side lower dashboard – main control unit.
- Under-hood firewall – secondary unit.
- Behind the glove compartment – auxiliary relays.
For quick identification, use a flashlight at a low angle; shadows reveal the edges of the unit more clearly. Disconnecting the battery before inspecting the assembly is recommended to avoid sparks or short circuits.
