Inspect the driver side lower dashboard panel first if interior systems such as gauges, radio, or power mirrors stop working, as this area contains the primary cabin electrical distribution unit with labeled slots and assigned current values.
The engine compartment houses a separate high-current distribution module positioned near the battery. Remove the protective cover to access large-capacity links responsible for systems like cooling fans, ignition circuits, and control modules.
Always match the amperage rating stamped on each element before replacement, with typical values including 10A for lighting, 15A–20A for accessories, and 30A–50A for motors and major components. Incorrect selection can cause overheating or wiring damage.
Use a multimeter set to continuity mode to verify failure instead of relying on visual inspection, as small breaks inside the element are not always visible. Repeated failure at the same position often points to a short circuit or overloaded component.
350Z 2003 Fuse Box Diagram and Circuit Identification Guide
Match each slot number with its assigned circuit using the printed layout on the cover to avoid confusion during diagnostics, as identical amperage values may protect completely different systems such as lighting, control modules, or power accessories.
Interior distribution points handle low- and mid-current loads including dashboard cluster, audio unit, and mirror controls, typically rated between 5A and 20A, while the engine compartment unit contains higher-capacity elements for cooling fans, ignition supply, and control electronics, often ranging from 30A to 50A; verify each position with a multimeter or test light instead of relying only on labels, since wiring changes or wear can alter actual circuit behavior.
Locations of Interior and Engine Bay Fuse Panels in 350Z 2003
Check the driver side lower dashboard area to access the main interior electrical distribution unit, positioned behind a removable plastic cover near the footwell; this section supports systems such as audio, gauges, mirrors, and interior lighting.
Remove the cover by pulling it outward, revealing a compact layout with numbered slots and a reference chart printed on the inner side. Use this chart while identifying circuits to avoid selecting the wrong position.

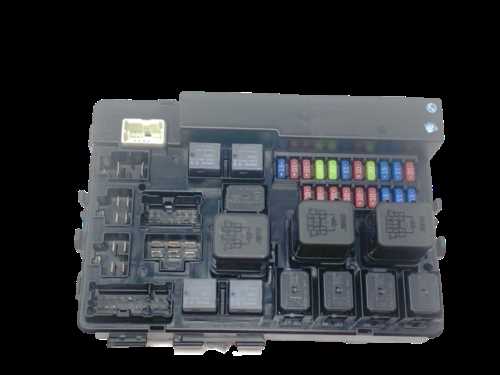

Open the hood and locate the engine compartment power distribution module near the battery, typically secured under a protective lid with clips; this unit contains high-current elements responsible for cooling systems, ignition supply, and control electronics.
Disconnect the negative battery terminal before accessing the engine unit, especially when working with circuits rated above 30A, as these lines carry higher load and can cause short circuits if handled incorrectly.
Inspect both interior and engine areas during diagnostics, since some systems depend on shared power feeds distributed across both locations, and failure in one section can affect multiple components.
