Use the factory panel map located on the rear side of the protective cover under the dashboard to quickly identify each circuit guard and switching element; this reference matches the vehicle’s VIN-specific configuration and prevents wiring mistakes.

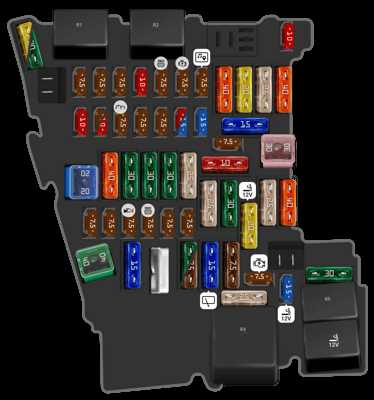

The cabin-mounted unit sits behind a removable trim on the driver’s side, slightly above the footwell. It contains low-amperage safety inserts responsible for lighting, infotainment, climate control, and driver assistance modules. Ratings typically range from 5A to 30A, and each slot is numbered in ascending order from left to right. For example, positions 3–7 often correspond to interior electronics, while slots near the outer edge handle auxiliary systems such as USB ports and seat heating.
Under the hood, a second distribution block is positioned near the battery. This section manages high-load components: radiator fan, ABS pump, and engine control unit. Here you will encounter higher values, frequently between 40A and 150A, mounted as strip-style links rather than plug-in inserts. Access requires releasing two side clips and lifting the protective lid upward.
For accurate replacement, match both amperage and color coding: beige (5A), brown (7.5A), red (10A), blue (15A), yellow (20A), and green (30A). Installing a higher-rated insert may lead to wiring damage, while a lower one will fail under normal load. If a component stops working repeatedly after replacement, inspect the connected circuit for shorting instead of swapping parts again.
Keep a printed layout in the glove compartment or save a digital copy tied to your VIN. Variations between trims–such as additional driver aids or upgraded audio–change slot assignments, so relying on a generic scheme may mislead even experienced owners.
VW Compact SUV Electrical Panel Layout: Practical Guide
Locate the primary relay panel under the dashboard on the driver’s side and verify the exact slot numbering using the printed chart on the cover; this prevents incorrect component replacement and saves time. For interior circuits, check rows labeled with low-amperage inserts (5A–15A) that typically protect lighting, infotainment, and sensors. Engine compartment protection modules use higher ratings (30A–60A) and are positioned near the battery housing, often with a secondary lid secured by clips.
Each slot corresponds to a specific circuit: for example, climate control and heated seats are commonly assigned mid-range amperage positions, while safety systems like ABS and airbags connect through dedicated channels with strict rating limits. Never install a higher-rated insert than specified, as wiring insulation may overheat before the link fails. Use plastic pullers stored inside the panel cover to remove elements cleanly; metal tools can cause short circuits if contact is made with adjacent terminals.
If multiple systems stop working simultaneously, inspect shared power lines rather than individual slots. Cross-reference the legend printed on the panel lid with wiring labels to identify grouped circuits. Moisture traces or oxidation on contacts indicate sealing issues–clean affected areas with electrical contact spray and ensure the cover is firmly closed after service.
Where to Locate All Fuse Boxes in the 2022 VW Tiguan and How to Access Them Safely
Open the driver-side door and remove the small plastic cover at the end of the dashboard to reach the primary electrical panel; it sits behind a snap-fit trim piece that can be pried off gently with fingers or a plastic tool to avoid scratches.
Inside the cabin, a second panel is positioned beneath the steering column, partially hidden by the lower trim. Access requires loosening two retaining clips and lowering the panel slightly; avoid pulling hard, as wiring harnesses are attached behind it.
Under the hood, the main power distribution unit is located near the battery on the left side. Release the locking tabs on the protective lid and lift it vertically. Ensure the engine is off and the key is removed before opening this compartment to prevent electrical arcing.
Before touching any component, disconnect the negative battery terminal using a 10 mm wrench. This reduces the risk of short circuits and protects onboard electronics from accidental damage during inspection or replacement.
Use the following steps for safe access:
- Switch off ignition and all electrical consumers
- Wait at least 2 minutes for control modules to power down
- Use only non-metallic tools when removing trim covers
- Keep moisture away from exposed contacts
Each panel contains a printed layout on the inner side of its cover. Match the numbering carefully before removing any element; incorrect removal can disable critical systems such as ABS or lighting circuits.
When pulling a fuse, use the provided plastic extractor tool typically clipped inside the panel. Grip the component straight and pull evenly to avoid bending terminals or damaging the socket.
After completing work, reinstall all covers securely and reconnect the battery terminal. Test affected systems immediately; if any warning lights appear, recheck seating and placement of each element before driving.
