Check the main power distribution center under the hood for any irregularities before inspecting interior circuits. Panels are typically secured with clips or screws near the battery, and identifying the primary terminals helps isolate individual connectors.
Label each connection clearly when disconnecting to prevent confusion during reassembly. Use a 10-amp test light or multimeter to verify voltage presence at each circuit before replacing any protective link. This prevents accidental shorts and ensures all downstream systems receive proper power.

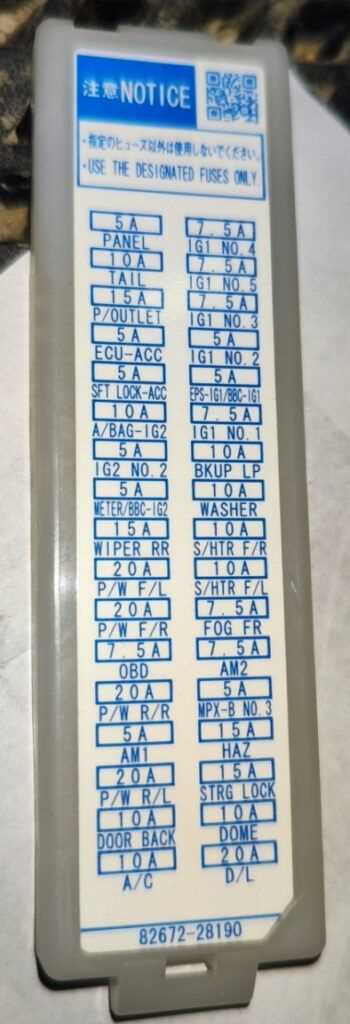

Interior panel access requires removing the lower dash cover on the driver’s side. Some auxiliary relays and circuit connectors are integrated into this module, so confirm each slot’s rating using printed labels or molded identifiers on the panel itself.
Regular inspection of corrosion or heat damage on terminals improves long-term reliability. Clean contacts with contact cleaner and ensure all retainers are secure. Document any modifications for future troubleshooting and maintain an organized approach to component replacement.
Electrical Panel Circuit Layout and Access Guide
Locate the main power center under the hood near the battery and identify the primary relay terminals before attempting any service. Panels typically have molded labels indicating amperage for each circuit, and removing the retaining clips exposes all connectors for inspection. Verify the main supply with a multimeter before touching individual lines to prevent accidental shorts.
For interior access, remove the lower driver-side dash cover to reach secondary relays and circuit slots. Keep each connector labeled during disassembly, and check for corrosion or heat damage on terminals. Use a small mirror or flashlight to inspect hidden areas, and ensure all retainers are fully seated when reassembling to maintain reliable operation across all electrical systems.
Locating the Primary Engine Compartment Circuit Panel
Open the hood and focus on the area adjacent to the battery on the driver’s side. The main electrical panel is housed in a black plastic enclosure with a snap-on cover. Check for molded labels or colored tabs indicating high-current circuits, and always confirm power is off before disconnecting any terminals to avoid sparks or damage to sensitive components.
Trace the thick wiring harnesses from the alternator and starter to locate the panel if labels are obscured. Use a flashlight to inspect connectors behind the panel for corrosion or loose pins. Once identified, note the orientation of each terminal and any protective fuses to streamline maintenance or future replacements, ensuring all connections are reinstalled securely.
