Check the cover label inside the power distribution unit first and match each slot number with its assigned circuit before removing any protective element. This prevents incorrect removal and avoids disrupting unrelated systems.
The vehicle uses multiple electrical centers located in the engine compartment and cabin, each handling specific load groups such as lighting, control modules, and high-current components. Identify the correct location before testing to avoid confusion between similar layouts.
Each slot has a defined amperage rating, typically from 5A to 40A, depending on circuit demand. Installing a higher-rated element can overheat wiring, while a lower rating may fail during normal operation. Always match the original value printed on the part.
Use a multimeter to measure voltage across contacts while activating related systems like headlights or climate controls. This approach helps pinpoint faults quickly and confirms whether the issue lies within the circuit or connected component.

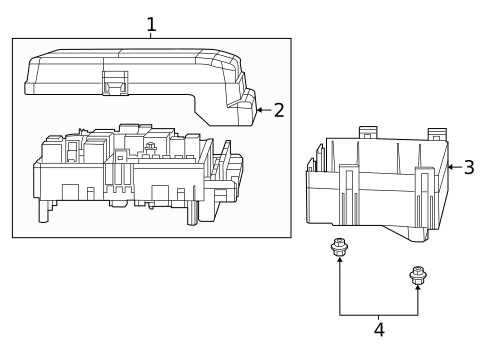

2021 Ram 1500 Fuse Panel Diagram with Relay Layout and Circuit Details
Use the cover chart inside the power distribution center to match slot numbers with circuits before removing any protective element, ensuring correct identification of systems like lighting, control modules, and auxiliary electronics.
The electrical layout separates high-current and low-current systems across engine compartment and cabin sections. Components such as cooling fans and ABS are grouped in the front area, while cabin circuits manage infotainment, switches, and comfort features.
Typical amperage ranges include 5A–10A for sensors, 15A–20A for lighting and outlets, and up to 40A for motors and heavy-load circuits. Always replace with identical ratings to avoid wiring damage or repeated failure.
Relay placement and function
Relays are positioned next to blade elements and control high-load switching for systems like fuel delivery, starter operation, and radiator fan. Each relay is identified by a printed code and fixed slot within the grid.
Test circuits using a multimeter by checking voltage across contacts while activating related systems. Consistent readings indicate proper operation, while imbalance points to a break, poor contact, or failed component.
Exact Fuse Panel Locations in Engine Bay and Cabin Areas
Open the engine compartment and locate the primary power distribution center near the battery on the right side, secured by a sealed plastic cover; release the locking tabs to access high-current circuits serving systems like cooling fans, ABS, and engine control modules.
Inside the cabin, check the driver side dashboard edge or lower dash area behind a removable trim cover; access requires opening the door fully, then pulling off the snap-in panel to reveal circuits for lighting, infotainment, and control systems, with slot numbering and circuit labels printed on the inner side of the cover for quick identification.
