Locate interior and engine compartment power distribution panels before diagnosing any electrical fault, then match each slot number with the legend printed on the cover. This prevents disconnecting the wrong circuit and speeds up troubleshooting.
The cabin-mounted panel typically includes lower-rated inserts such as 5A, 10A, and 15A, assigned to lighting, infotainment, and control modules. The engine compartment unit handles higher loads with ratings from 20A up to 80A, supporting cooling fans, ABS, and main power circuits.
Check amperage values before replacement; installing a higher-rated insert can cause overheating and damage wiring harnesses. Each circuit is designed for a specific current range, and incorrect substitution increases the risk of failure.
Use a multimeter or test light to confirm a failed insert rather than relying only on visual inspection. A broken metal strip indicates a fault, but voltage testing across both terminals provides a more accurate result.
Keep spare inserts and a puller tool inside the vehicle for quick roadside fixes. Having common ratings available allows immediate restoration of systems like wipers, lighting, or power outlets.

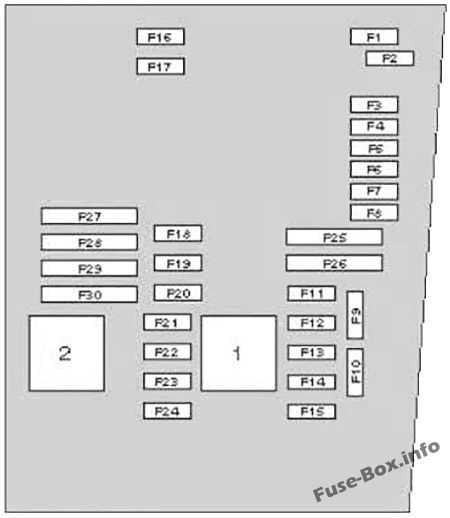

2018 Volkswagen Tiguan fuse diagram and circuit identification guide
Use the cover legend to match each numbered slot with its assigned circuit before removal, as identical amperage ratings may control different systems such as lighting, infotainment, or control modules.
The interior distribution panel contains lower current ratings from 5A to 20A, supporting dashboard electronics, interior lighting, and accessory ports. The engine compartment panel includes higher ratings from 20A up to 80A, handling cooling fans, ABS, and main electrical supply lines.
Identify each circuit using both slot number and label, not just amperage, to avoid disconnecting the wrong component during troubleshooting. Multiple slots with the same rating often serve unrelated systems, which can lead to confusion without proper reference.
Relays positioned рядом the panel control high-load operations such as starter engagement and fuel system activation. Swapping identical relay units can help verify faults quickly without additional diagnostic equipment.

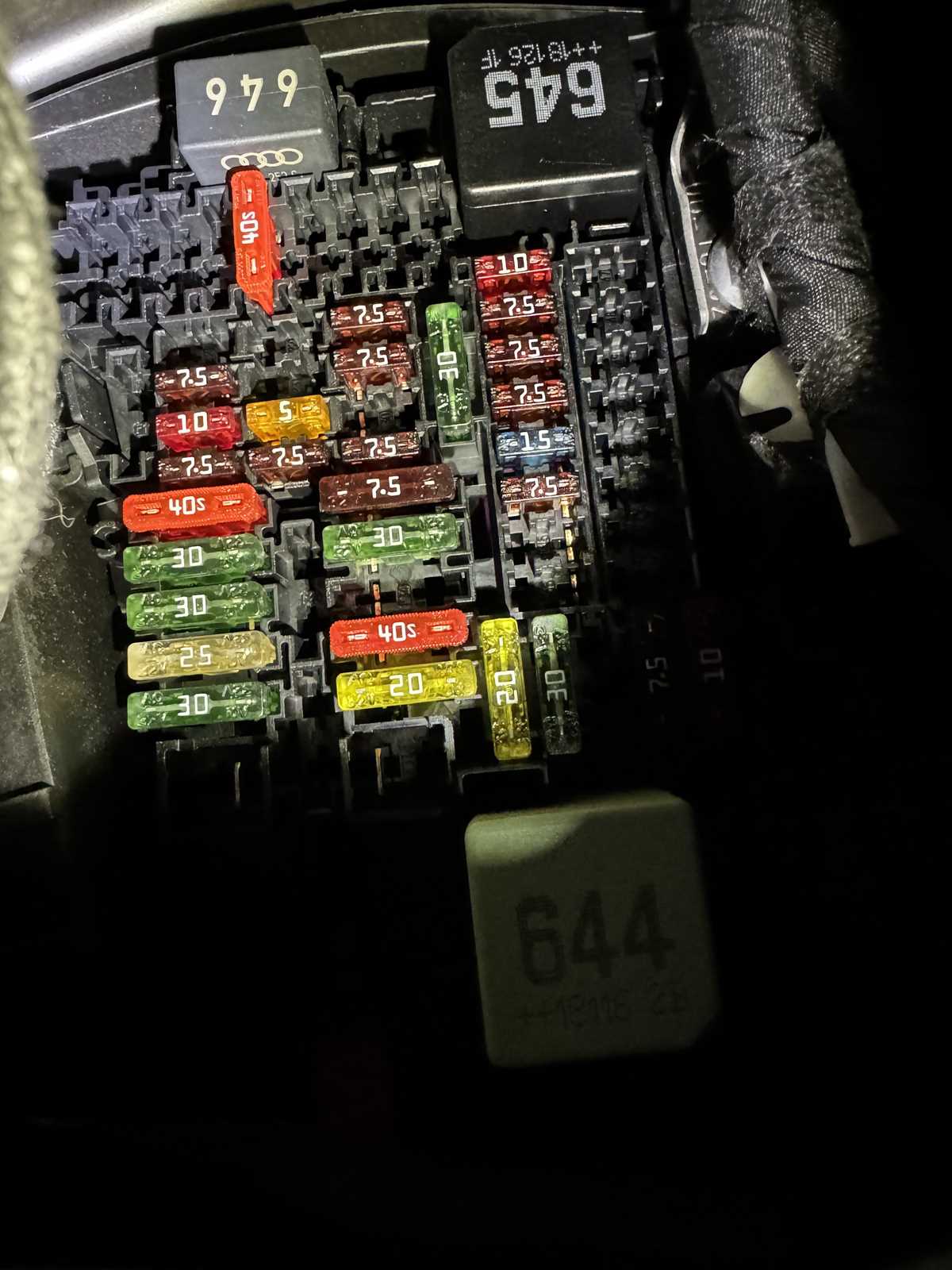

Fuse box locations in cabin and engine bay with access instructions
Open the driver-side dashboard end panel to reach the interior power distribution unit, which is typically hidden behind a removable side cover visible when the door is open. Pull the cover straight outward to release retaining clips.
This interior panel is positioned near the steering column area and handles low to mid-current circuits such as lighting, infotainment, and control modules. Access usually requires no tools, though a plastic trim tool can help avoid surface damage.
Check beneath the steering column if the side panel is not present, as some configurations place the unit behind a lower dash cover secured with clips. Pull gently along the edges to detach it.
Engine compartment access
Locate the main electrical distribution unit near the battery under the hood, typically enclosed in a sealed plastic housing with locking tabs. Press the tabs inward and lift the lid to expose high-current inserts and relay components.
Clear surrounding space if wiring or intake components restrict access, but avoid disconnecting cables unless required. Contact with exposed terminals should be avoided to prevent short circuits.
Ensure ignition is off before handling any electrical components, and disconnect the negative battery terminal if working near high-current circuits for added safety.
After completing inspection or replacement, secure all covers firmly until clips lock into place. Proper sealing prevents moisture entry and reduces the risk of corrosion or intermittent faults.
