Locate the interior power distribution panel under the dashboard on the driver side and match each numbered slot with the printed legend before removing any component. Use a multimeter to confirm continuity across terminals instead of relying on visual inspection.
The engine bay unit contains high-current links, typically rated between 30A and 60A, supplying systems such as radiator fans, ABS module, and charging circuit. Disconnect the negative battery terminal before handling these elements to avoid short circuits.
Inside the cabin, lower-rated inserts between 5A and 20A control lighting, infotainment, and electronic control modules. Follow the numbering grid precisely since adjacent slots may serve unrelated systems and incorrect placement can disable key functions.
Inspect контакты for heat marks, oxidation, or looseness, as these issues can cause intermittent failures even when the metal strip appears intact. Clean terminals and reseat components firmly to maintain stable electrical flow.

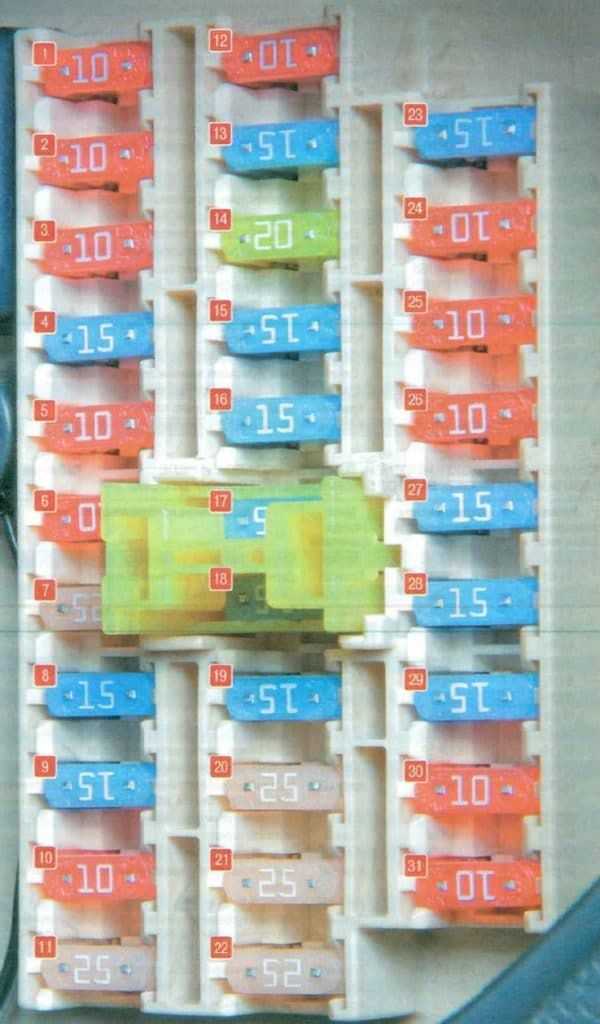

2017 Kia Forte Fuse Box Diagram with Panel Layout and Circuit Details
Check the engine bay power distribution panel first and align each numbered slot with the legend printed on the cover, then verify voltage using a test light before removing any component.
This sedan uses two main panels: one under the hood for high-load systems and another inside the cabin for electronics. The engine compartment unit typically includes 30A to 60A links for cooling fans, ABS pump, and charging circuits, while the interior panel contains 5A to 20A inserts for lighting, infotainment, and control modules.
Each slot number corresponds to a specific circuit, such as fuel pump relay, ignition supply, or power windows. Misplacing even a single insert can interrupt system operation or trigger warning lights, so always cross-check the numbering grid with a service manual.
Inspect terminals for discoloration, melting, or loose контакты, as these signs indicate overheating or poor connection. Clean contacts if needed and ensure each component is firmly seated to maintain stable electrical flow.
Engine compartment fuse box layout with slot numbers and relay positions
Remove the cover of the underhood power distribution unit and align each numbered cavity with the legend molded inside the lid, then verify voltage presence on both terminals using a test light before pulling any element.
The grid is arranged in rows where primary circuits occupy lower indices and auxiliary loads sit in higher positions. High-current links in this area typically range from 30A to 60A and support systems such as radiator fans, ABS pump, and charging circuit.
Slot grouping and circuit roles
- Low index positions feed ignition and engine control modules
- Mid-range slots power emission controls and sensor circuits
- Upper positions handle cooling systems and secondary loads
Relays are mounted adjacent to these slots and share the same numbering reference. They control switching for high-demand components such as fan motors and starter circuits, reducing load on control wiring and preventing overheating.
Inspection checklist
- Identify slot number using cover legend
- Test continuity with a multimeter
- Check for melted plastic or discoloration
- Ensure tight seating after reinstallation
Loose контакты or oxidation can cause intermittent faults under load. Clean terminals with electrical cleaner and confirm firm contact to maintain stable current flow across all circuits.
