Check the glove compartment on the driver’s side for the compact electrical panel; the interior layout identifies each circuit clearly. Labeling follows a numerical order that matches the vehicle manual, making it easier to locate malfunctioning connectors or replace protective elements without guesswork.
Under the hood, a secondary protective assembly handles high-amperage circuits like the ignition, cooling system, and lighting modules. Inspect the panel only with the engine off and the battery disconnected to prevent accidental shorts or sensor damage. Each slot is marked with amperage values and functional descriptions.
When replacing any protective component, cross-reference with the manufacturer’s chart for amperage ratings and color coding. Incorrect substitution can lead to overheating or electrical failure. Keep a set of mini-tools on hand to access fasteners and clips without bending terminals or scratching plastic housings.
For troubleshooting intermittent issues such as flickering lamps or unresponsive accessories, use a multimeter to check continuity along the panel pathways. Recording readings systematically helps pinpoint the exact module causing interruptions, reducing unnecessary part replacements.
2016 Escape Electrical Panel Layout

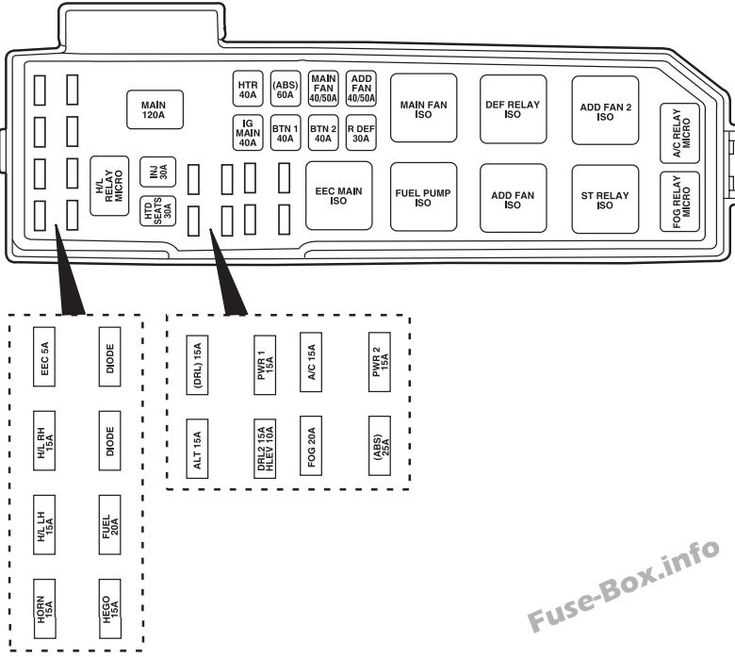

Locate the under-hood power distribution center on the driver’s side, near the battery. It houses relays for headlights, cooling fans, and the ignition system. Each slot is labeled with amperage ratings ranging from 5A to 30A, and markings indicate the exact circuit they protect.
The cabin control unit is behind the glove compartment. Remove the cover carefully to expose the mini-circuit hubs responsible for interior lights, power outlets, and the audio system. Tiny tabs secure the cover–press firmly but gently to avoid breaking them.
For headlamp circuits, identify the medium-sized protective devices marked 15A and 20A. Use a test light or multimeter to confirm continuity before replacing any unit. This prevents unnecessary replacement and ensures proper illumination performance.
Keep a printed reference of all circuit allocations inside the vehicle. Each relay and protector is color-coded; red for 10A, blue for 15A, yellow for 20A, and green for 30A. Cross-reference these colors with the label chart to pinpoint faults efficiently without trial and error.
Locating the Power Distribution Center in a Ford Escape
Check the driver’s side footwell beneath the dashboard; a rectangular panel conceals the main electrical hub. Press the retaining tabs on each side and pull the cover toward you to access the connectors inside.
Another assembly is mounted under the hood, near the battery. This cluster is secured with a hinged lid that clicks open when you lift it. It contains relays for high-current circuits such as headlights, ignition, and the cooling fan.
Inside the cabin panel, labels are printed on the interior side of the cover. These markings identify each circuit’s function, amperage, and location within the panel. Keep this guide for quick troubleshooting without removing components unnecessarily.
Under the hood, the enclosure sits slightly to the passenger side of the battery, aligned with the air intake box. Pull the tab toward the firewall and lift to reveal slots for each connector. This position provides easy access for replacements and inspection.
For panels located inside the cabin, crouch low and use a flashlight if needed. The mounting is shallow but wide, allowing you to see both the clips and the individual connectors without straining your arms.
Each relay and connector in both compartments is designed for tool-free removal. Apply gentle pressure to the release tabs and pull straight out. Avoid twisting, which could damage the terminals or the housing.
After accessing either cluster, verify the corresponding circuit by cross-checking the printed layout. Replace any malfunctioning element with the exact amperage rating to maintain proper electrical function across all systems.
