Check the driver side instrument panel first for most electrical faults, then inspect the engine compartment power distribution unit near the battery for high-current circuits. Lighting, infotainment, and seat controls often rely on components rated between 10A and 30A.
The interior panel includes clearly labeled slots tied to systems such as power windows, dashboard electronics, and accessory outlets. Match each slot with its amperage marking before replacement to prevent wiring damage or repeated failure.
Under the hood, the main distribution unit handles circuits for cooling fans, starter operation, and charging system. These links typically range from 40A to 80A. Inspect for heat discoloration, loose fitment, or corrosion, as these signs indicate poor electrical contact.
Use a multimeter or test light to verify voltage on both sides of each connection. Power present on only one side indicates a failed element, allowing quick identification without removing multiple components.

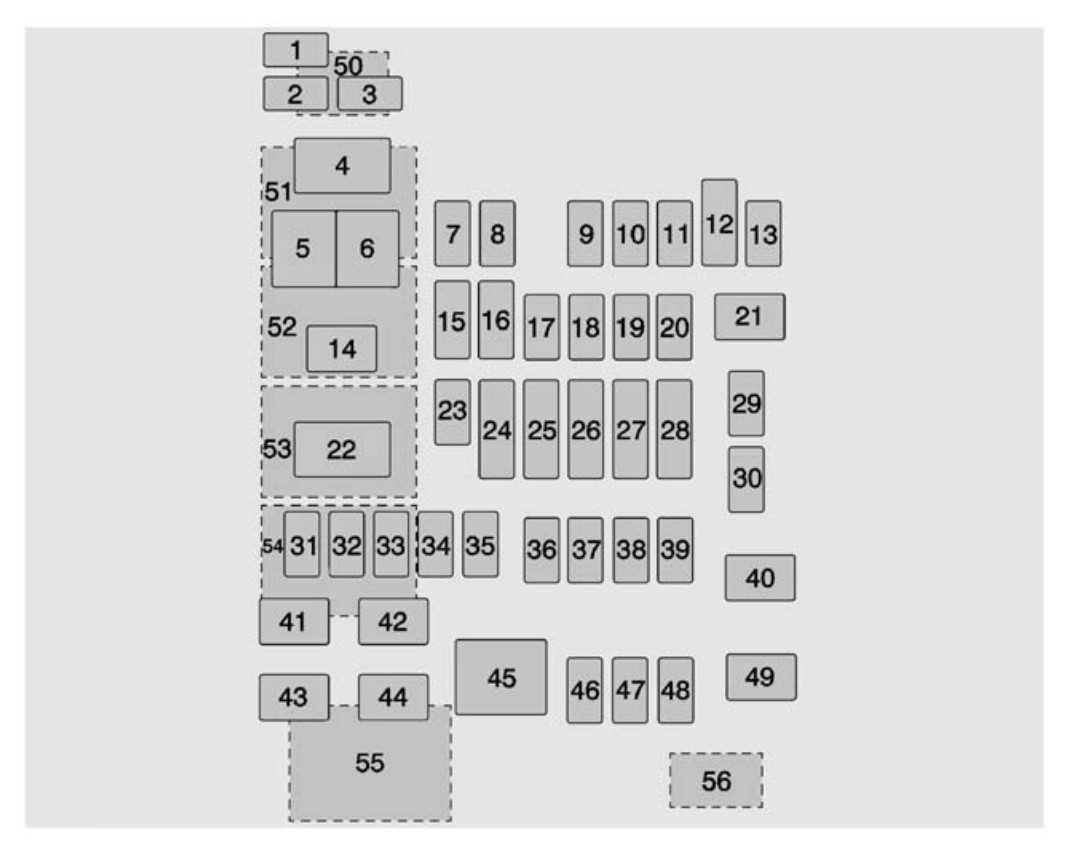

2015 Tahoe Fuse Diagram with Panel Locations and Circuit Assignments
Open the driver side instrument panel cover and identify each slot using the numbering printed on the inside label before removing any component. This prevents disconnecting the wrong circuit during diagnostics.
The interior panel groups circuits by function, with common assignments including:
- 10A – instrument cluster and control modules
- 20A – power outlets and infotainment system
- 25A – power windows and door locks
- 30A – power seat adjustment motors
Check voltage on both terminals using a test light; a working element shows power on each side, while a failed one shows voltage on only one side.
Inspect the engine compartment distribution unit near the battery, which contains high-current protection elements for major systems. These circuits handle components that draw significant power during operation.
Typical high-load assignments include:
- 40A–60A – cooling fan assembly
- 50A–70A – ignition and control modules
- 70A–80A – charging system output
- 30A–40A – starter relay circuit
Ensure each component is firmly seated and inspect terminals for corrosion or heat marks to avoid intermittent electrical faults.
Where the interior and engine bay fuse boxes are located on 2015 Tahoe
Check the driver side dashboard end panel by opening the door fully and removing the plastic cover to access the interior electrical center. This location houses protection elements for cabin electronics, including infotainment, lighting, and seat controls.
The cover is secured with clips and can be removed by hand without tools. Pull evenly from the edge closest to the door hinge to avoid breaking the retaining tabs.
Inside this panel, each slot is aligned in vertical rows with amperage values printed next to them. Use the printed layout on the back of the cover to match each position with its assigned circuit before performing any checks.
Engine compartment power distribution location
Open the hood and look near the battery on the driver side to find the main power distribution unit. This enclosure is a rectangular black housing with a removable lid secured by side latches.
Press the locking tabs and lift the cover upward to expose high-current elements and relays controlling systems like cooling fans, ignition supply, and charging output.
Access and visibility tips
Ensure the ignition is off before opening either panel to reduce risk of short circuits. Use a flashlight to clearly view markings, especially in the engine compartment where shadows can hide slot numbers.
Keep the cover nearby while working, since it contains the reference layout needed to correctly identify each protected circuit and avoid incorrect replacements.
