Check the cab power distribution box under the driver side dash first, as most electrical faults originate there. Use a test light or multimeter to confirm voltage at each slot before removing any protective link, and always match the amperage rating stamped on the plastic housing.
This model uses multiple electrical distribution blocks positioned in the cabin and sometimes behind access panels. Each slot feeds specific systems such as headlights, HVAC controls, trailer connections, and instrument cluster. A labeled circuit map allows quick identification of which component is tied to a failed line, reducing downtime during roadside checks.
Typical amperage values range from 5A for interior electronics up to 30A or higher for heavy-load systems like blower motors. Pay attention to grouped circuits, as several slots may share a common power source. If repeated failures occur, inspect wiring harnesses for abrasion near mounting brackets and firewall entry points rather than replacing links repeatedly.
Access covers are secured with clips or screws, and a printed layout is often attached inside. If missing, cross-reference wire colors and connector positions to trace circuits manually. Keeping a spare set of correctly rated links and a simple voltage tester in the cab helps resolve most electrical interruptions without workshop tools.
2015 Peterbilt 389 Fuse Panel Diagram and Circuit Identification

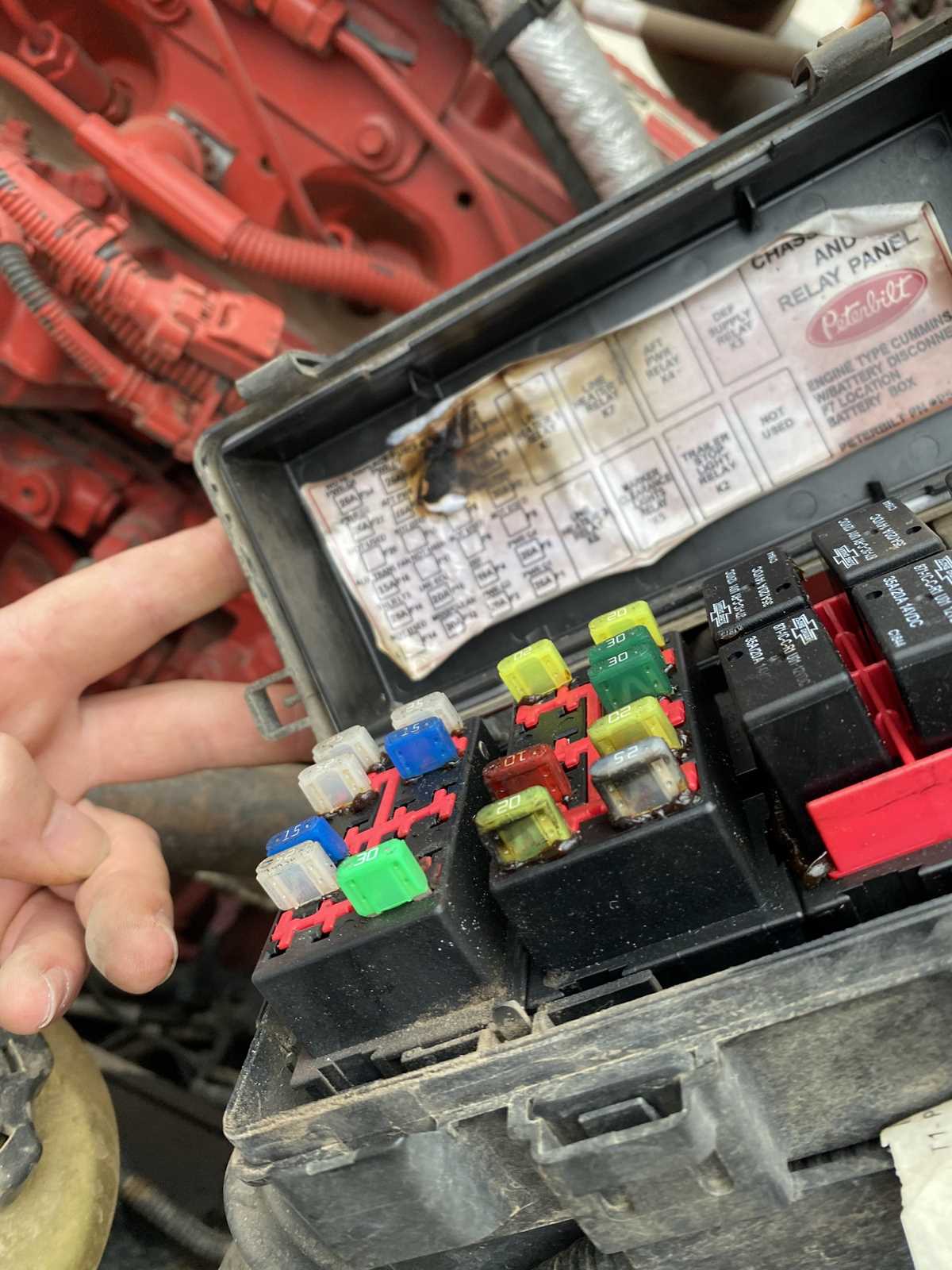

Locate the main power distribution box beneath the driver side dashboard and match each slot to its assigned circuit using the printed layout or stamped markings on the cover. Focus first on high-load lines such as lighting, HVAC motors, and trailer connectors, as these are the most common failure points.
Use the circuit layout reference to identify functions quickly:
- Headlight and marker light circuits usually grouped with 15A–20A ratings
- HVAC blower and climate controls often assigned 25A–30A slots
- Instrument cluster and switches protected by 5A–10A links
- Trailer power and auxiliary systems connected to higher capacity positions
Trace each circuit by wire color and connector position if labels are worn or missing. For example, red or orange wires typically indicate constant power, while yellow or blue may relate to switched systems. Use a multimeter to confirm voltage at both input and output sides of each slot, checking for drops that signal a failed link or loose contact.
Exact location of fuse panels in the 2015 Peterbilt 389 cab and sleeper
Check under the driver side dashboard first, as the primary power distribution block is mounted behind a removable trim panel near the steering column. Remove two to four screws or release clips to access it.
This front cabin unit contains most circuits tied to driving functions, including lighting, gauges, and ignition-fed systems. It is positioned slightly left of the brake pedal and may be partially hidden by wiring bundles.
Open the access cover carefully, as wiring harnesses are routed tightly around the block. Use a flashlight to read markings inside the cover or along the plastic housing.
Additional cabin locations
A secondary electrical block can be found behind the passenger side kick panel or glove compartment area. This unit often supports auxiliary systems such as radio, interior lighting, and accessory ports.
Some configurations include another small distribution unit mounted above the driver footwell, closer to the firewall. This one handles relays and lower amperage circuits tied to control switches.
Inspect behind trim panels rather than forcing access, as hidden fasteners are common in this model’s interior.
Sleeper compartment placement
In sleeper-equipped versions, an additional power distribution box is installed along the side wall, typically below the bunk or inside a storage compartment. Remove the panel cover to expose it.
This rear unit manages climate control, sleeper lighting, and power outlets. Access is usually gained by removing a carpeted or plastic cover secured with screws or quarter-turn fasteners.
