Locate the primary electrical panel behind the driver’s side engine cover to gain access to all main circuits. Panels are secured with two locking tabs; gently lift them to expose the array of relays and connectors. Always disconnect the negative battery terminal before removing any components to prevent accidental shorts.
Label each circuit using the engraved identifiers on the panel cover before performing replacements or inspections. The panel contains dedicated slots for headlights, ignition systems, and auxiliary power circuits. Use a 12-volt tester to verify live connections before handling relays or wires.
Inspect all connections for corrosion or loose terminals as moisture accumulation is common near the firewall. Apply dielectric grease to metal contacts to maintain conductivity. Replace any worn fuses with exact amperage ratings to avoid electrical overload.
Plan the routing of auxiliary wiring carefully when adding aftermarket accessories. Avoid crossing high-heat areas near the exhaust manifold and secure cables with insulated clips. Verify each new connection functions before reassembling the panel cover.
Electrical Panel Layout and Circuit Guide
Access the primary electrical panel behind the driver-side console and inspect connections for wear or corrosion. Identify relays controlling critical systems such as the ignition, lighting circuits, and auxiliary power. Secure loose wires with proper clips and ensure each terminal is fully seated to maintain consistent current flow.
Follow a step-by-step check for circuit integrity:
- Use a multimeter to verify voltage on each connector
- Document amperage ratings for replacements
- Clean oxidized contacts with electrical-safe cleaners
- Test each relay under load conditions before reassembly
These measures prevent short circuits and prolong the lifespan of the panel components
.

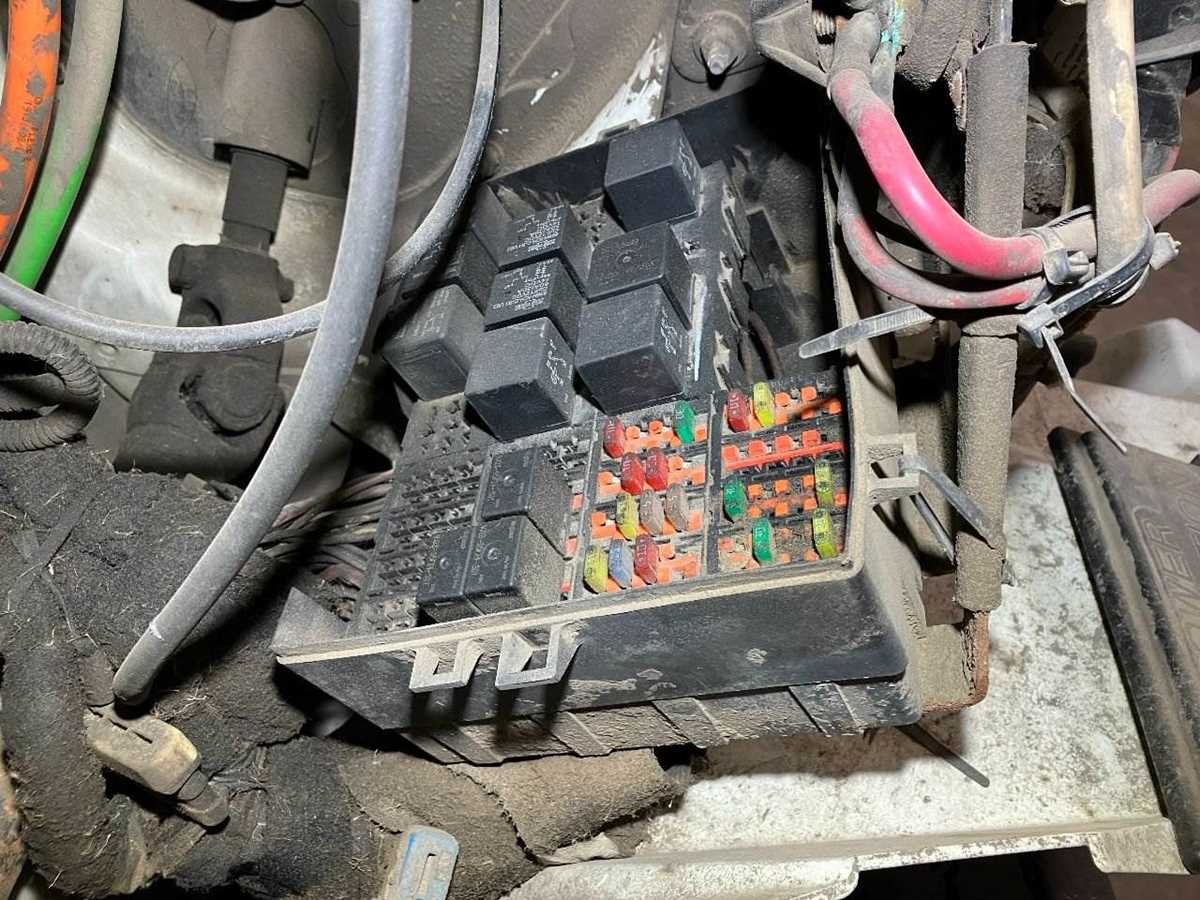

Main Engine Compartment Power Center Location and Access
Locate the primary power center near the passenger-side inner fender under the engine cover. Ensure the engine is off and the battery terminals are disconnected before attempting any inspection to avoid electrical hazards.
Identify all connectors and relays by their color-coded labels. Each circuit is marked with amperage ratings, which helps prevent accidental overload during maintenance or replacement. Keep a small flashlight handy for better visibility in tight spaces.

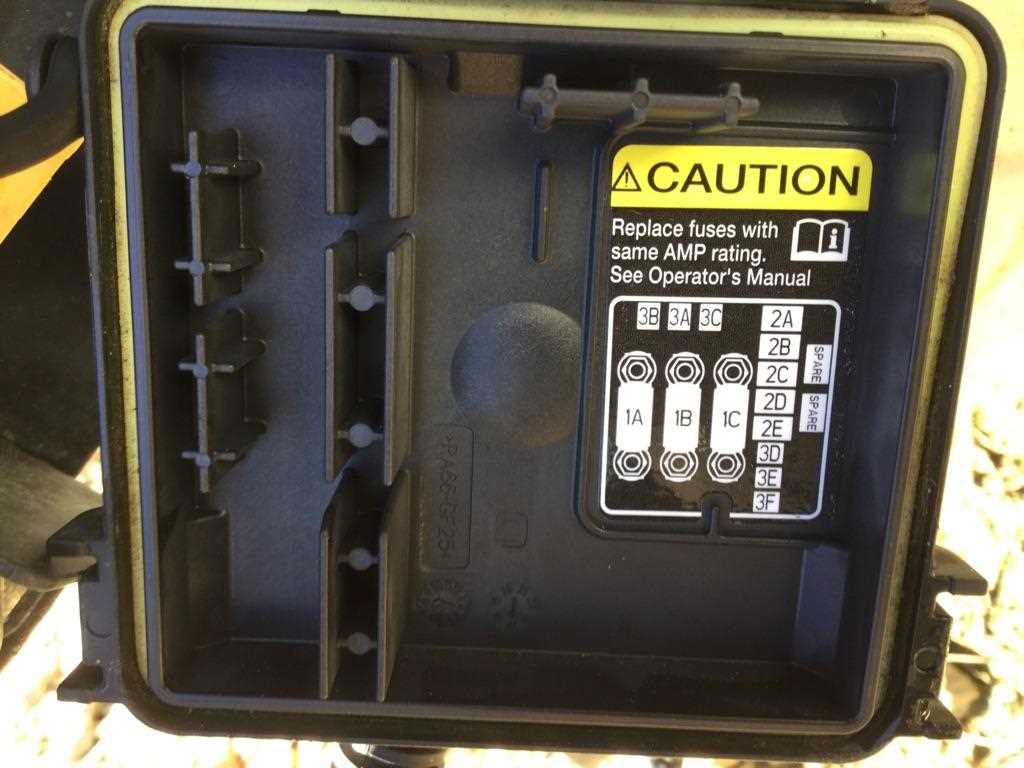

Access the panel by removing the protective cover secured with clips. Check that all mounting points are intact and gently lift the cover without forcing any latches. Loose or broken clips can compromise protection from moisture and debris.
Inspect for corrosion or damaged wiring at each terminal. Use dielectric grease on contacts after cleaning to maintain a stable connection and reduce the risk of intermittent faults in critical systems like the ignition or cooling fan circuits.
Before closing the panel, verify all components are seated properly and that the cover aligns with the surrounding trim. Test each high-current relay and monitor voltage readings after reconnecting the battery to confirm correct operation across engine compartment circuits.
