Open the driver side dashboard panel first and check the printed layout card to match each slot with its assigned circuit before removing any component.
The interior panel contains low and medium amperage elements, typically from 5A to 30A, supporting systems like lighting, audio, and power outlets. Each position is tied to a fixed function, and using the wrong rating can lead to wiring damage or repeated failure.

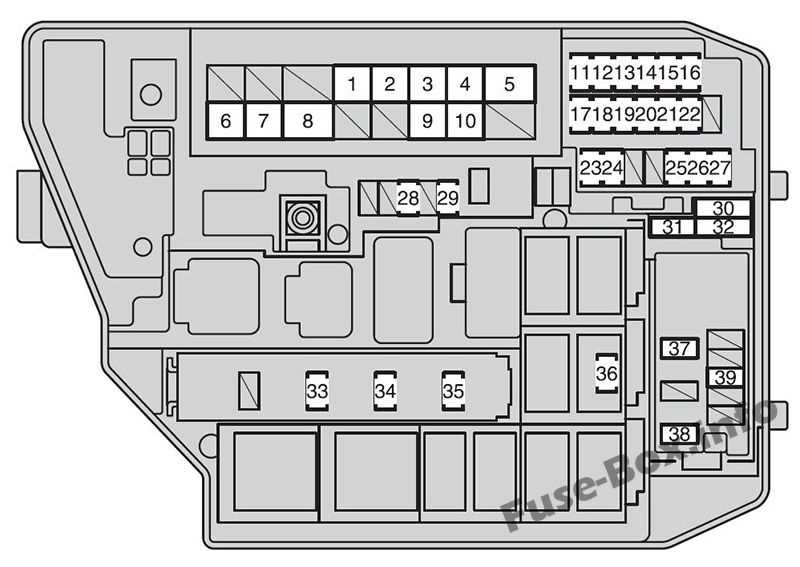

Under the hood, a secondary power distribution unit near the battery handles high-current circuits such as cooling fan, ABS, and charging system. If multiple systems stop working at once, inspect this area immediately.
Use a multimeter to test continuity across each element instead of relying only on visual checks, as internal breaks may not be visible. Always align slot number, function, and amperage rating before installing a replacement.
2014 Toyota Corolla Fuse Diagram and Circuit Layout Guide
Use the slot numbering on the panel cover to match each position with its assigned system, checking circuits like headlights, radio, and fuel pump first when troubleshooting.
Each slot carries a fixed amperage rating, typically between 5A and 40A, depending on load requirements. Lower values serve cabin electronics, while higher ratings support systems such as ABS and cooling fan. Always confirm both the slot number and amperage before removal.
Do not rely on color coding alone, since previously installed parts may not match factory specifications, leading to confusion during repairs.
Test continuity using a multimeter across the internal metal strip and replace only with identical ratings to maintain stable operation and avoid overheating or repeated faults.
Where fuse panels are located in 2014 Toyota Corolla and how to access them

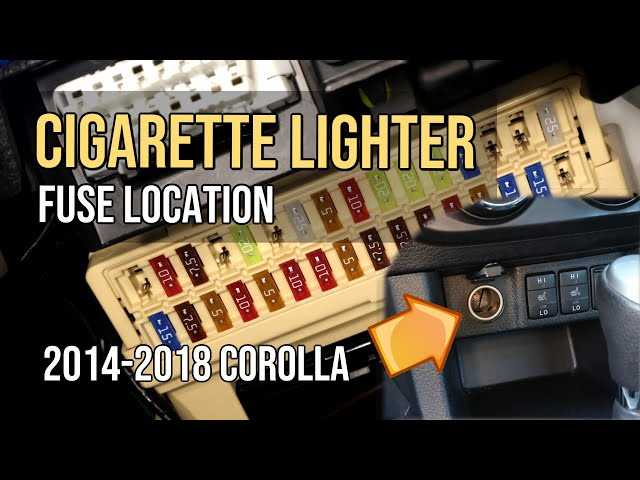

Open the driver door and remove the side dashboard cover to reach the main interior electrical panel positioned at the end of the instrument cluster.
Pull the cover outward using gentle pressure on the plastic tabs, then expose the rows of circuit protection elements and relays arranged by slot number and amperage.
Access under the hood requires these steps:
- Locate the power distribution unit near the battery
- Release the locking clips on the plastic cover
- Lift the lid straight up without tilting
- Inspect terminals with a flashlight
Disconnect the negative battery terminal before handling any components and reinstall all covers securely after inspection to protect connections from moisture and debris.
