Check the side dashboard panel accessible from the driver door area first, as many electrical issues originate there; remove the cover and verify each slot with a multimeter to confirm current flow before pulling any component.
The engine compartment power distribution unit is located near the battery and contains high-load protection links for systems such as cooling fans, ABS, and ignition. These components typically range from 30A to 60A, and incorrect replacement can lead to wiring damage or malfunction.
Interior circuits manage lighting, infotainment, climate controls, and power accessories. A failed insert often shows a broken metal strip or visible burn marks. Pay attention to frequently used systems like power outlets and window controls, as they are more prone to overload conditions.
Keep spare inserts and a puller tool in the glove compartment for quick checks. Matching each slot to its assigned circuit using the panel legend reduces errors and helps restore proper function without unnecessary replacements.
2013 VW Beetle Fuse Diagram with Fuse Box Layout and Circuit Details
Locate the side dashboard panel on the driver side and use the printed legend on the cover to match each slot with its assigned circuit; confirm voltage using a multimeter before removing any insert.
Low-amperage positions between 5A and 15A usually supply interior lighting, infotainment, and control modules, while 20A to 30A slots handle power windows, seat adjustment, and accessory outlets.
The engine compartment power distribution unit sits near the battery and contains high-load protection links for systems such as cooling fans, ignition, and braking modules.
High-current elements typically range from 30A to 60A, and each position corresponds to a specific circuit path indicated on the inner cover layout.
Check each insert visually for a broken metal strip or heat discoloration, as these signs indicate overload or short circuits.
Use a continuity tester to verify each component instead of relying only on visual inspection, since some failures are not immediately visible.
Ensure each insert is firmly seated after inspection, as loose contact can interrupt current flow and cause intermittent electrical issues.
Follow the panel layout carefully when replacing components to avoid mismatched ratings that can damage wiring or connected systems.
Fuse box locations in dashboard and engine bay with access steps
Open the driver door and remove the side dashboard cover to reach the interior electrical panel; the access point is exposed when the door is fully open.
- Insert a plastic trim tool into the gap
- Gently pry the cover outward
- Pull straight to release retaining clips
Use a flashlight to view the slot layout clearly, as the panel is recessed and partially shaded by surrounding trim.

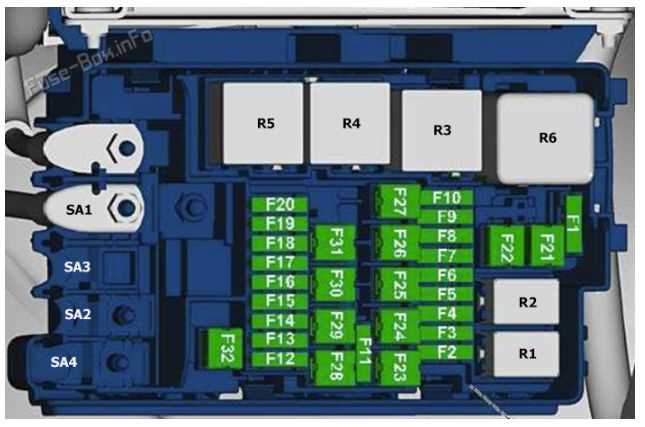

Engine compartment power distribution unit
Release the hood latch and locate the main power center near the battery; it is enclosed in a rectangular plastic housing designed to protect high-current components.
- Press the side locking tabs
- Lift the cover upward without force
- Check the internal layout printed inside the lid
Safe handling and inspection
Disconnect the negative battery terminal before touching high-load elements, inspect contacts for corrosion or heat marks, and ensure each insert is fully seated to maintain stable electrical connection across all systems.
Keep the cover securely closed after inspection to protect internal components from moisture and debris.
