Locate the main cabin electrical assembly behind the driver-side kick panel. Remove the retaining clips and cover carefully to expose all circuit connections. Ensure the vehicle ignition is off before touching any terminals to prevent short circuits or electrical shocks.
Label each terminal using colored tags or numbers when inspecting or disconnecting wires. This practice allows accurate reassembly and prevents accidental misrouting of circuits that power critical systems like lighting, HVAC, and auxiliary electronics.
Check for corrosion, loose connectors, or burnt contacts along the assembly. Tighten any fasteners and clean terminals using a non-abrasive electrical contact cleaner. Consistent maintenance reduces the risk of sudden electrical failures during operation.
Maintain a reference sheet for relay functions and circuit assignments for troubleshooting. Mark each relay and circuit according to its load to quickly identify the source of an issue without dismantling the entire assembly, saving both time and effort.
Location and Access of the Cabin Electrical Panel

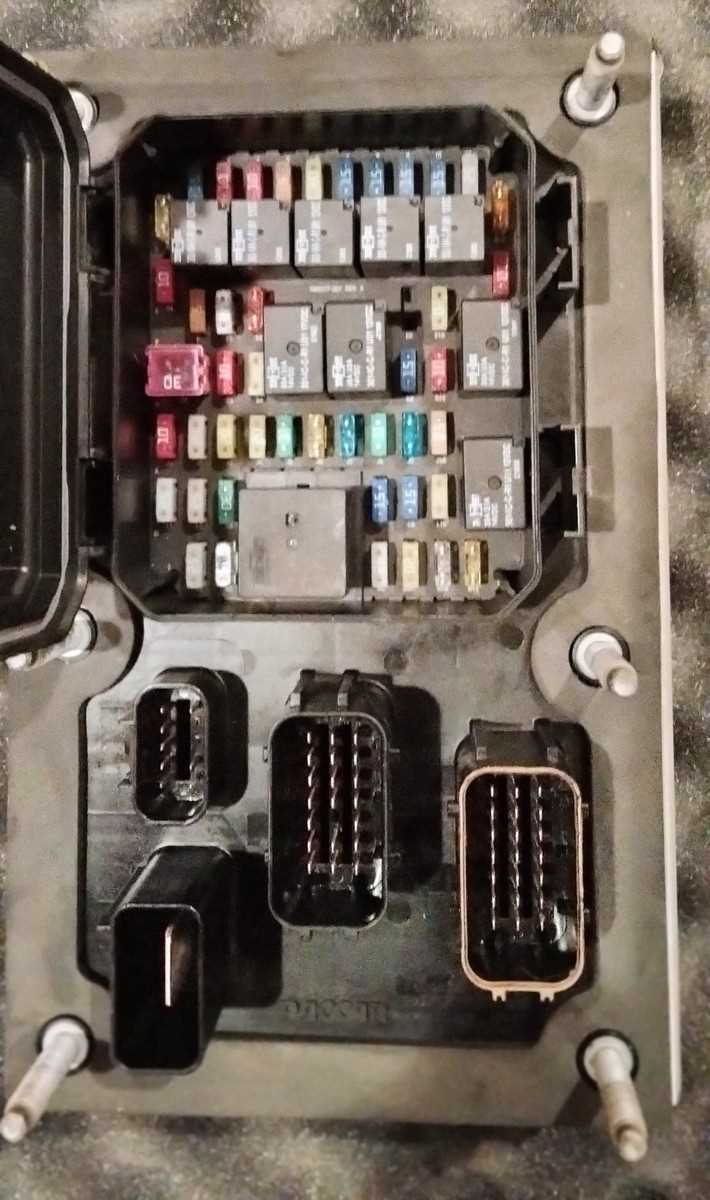

Access the main cabin electrical assembly by opening the driver-side lower dash compartment. Remove the securing clips and carefully pull the cover away to expose all circuits and relays for inspection or maintenance.
Use a flashlight to identify circuit rows and relay positions once the cover is removed. Document or label each connection before performing any disconnections to prevent misrouting wires and maintain proper functionality of lighting and control systems.
Check for obstructions such as air ducts or trim panels that may limit access. Loosen screws and retainers as needed to provide sufficient workspace, ensuring terminals and relays can be reached safely without force.
Inspect the assembly for signs of wear, corrosion, or loose connectors. Clean terminals with electrical contact cleaner and tighten any loose connections before reassembling the cover to restore reliable power distribution to all cabin circuits.
Keep a reference sheet nearby listing each relay and circuit assignment. This allows quick identification during troubleshooting or upgrades and reduces the risk of errors when reconnecting wires or swapping relays under the dash.
Identification of Circuits and Relay Functions
Label each circuit before testing by using the reference chart attached to the assembly. Identify high-current circuits first such as headlights, starter motor, and HVAC blower to prevent accidental overload during inspection.
Relays are typically rectangular components within the distribution module. Check the markings on each relay to determine coil voltage and contact rating, ensuring they match the intended circuit load.
Use a multimeter to verify continuity across each circuit. Measure voltage at both ends while activating the switch or key to confirm proper flow and detect open or shorted wiring.
- Headlamp circuits: Confirm 12V presence at input and ground continuity at output.
- Fuel pump relay: Activate ignition and observe relay click while measuring voltage at the pump connector.
- Cabin lights: Test with all switches on, checking individual bulbs for current draw.
Document each relay function in a table for reference:
| Relay | Function | Activation Signal |
|---|---|---|
| R1 | Main lights | Ignition on |
| R2 | Starter motor | Key switch start |
| R3 | Fuel pump | Ignition on |
| R4 | AC compressor | Climate control on |
Check for relays that may have failed mechanically or electrically. Swap suspected faulty relays with known good ones of the same rating to isolate malfunctioning circuits without altering other wiring.
Use color codes and terminal numbers to track individual conductors. Cross-reference with relay and circuit assignments to ensure accurate troubleshooting and to maintain consistent connectivity across the cabin electrical system.
Troubleshooting Common Electrical Issues with the Panel
Check for blown circuits first by using a digital tester at each connection point. Replace only the faulty circuit instead of multiple components to avoid unnecessary replacements.
Loose or corroded connections often cause intermittent failures. Inspect all terminals for discoloration or looseness and clean or tighten them to restore consistent current flow.
Identifying Relay Malfunctions
Relays that fail to click or show irregular voltage readings can disrupt critical functions. Swap suspect relays with known operational ones and monitor the corresponding system response to confirm the issue.
Document all tests in a table to track patterns and recurring faults. This helps pinpoint specific circuits or relays that fail under certain conditions:
| Component | Symptom | Test Result |
|---|---|---|
| Main lights | Intermittent operation | Voltage drops at switch |
| Starter motor | No response | Relay not clicking |
| Fuel pump | Engine cranks but no fuel | Low voltage at pump |
| HVAC blower | Runs only at high speed | Resistor pack faulty |
Voltage and Continuity Checks
Use a multimeter to verify consistent voltage at input and output terminals. Trace continuity across each conductor to detect broken or shorted wires, and isolate the faulty section before replacement or repair.
