Locate the main electrical distribution panels in the cab and engine area, then match each numbered slot with its assigned circuit using the cover legend. Inspect high-load circuits first, including starter supply, lighting, and HVAC systems.
Each slot is marked with a specific amperage rating and supports a defined electrical path. Common assignments include control modules, dashboard electronics, air system controls, and auxiliary equipment. Incorrect ratings can lead to overheating or repeated shutdown of connected systems.
Check for loose contacts, corrosion, or heat damage at each connection point. Heavy-duty operation exposes wiring to vibration and temperature changes, which can weaken connections over time.
Use a multimeter to verify voltage across both terminals during operation. This helps detect internal breaks or unstable current flow that cannot be identified through visual inspection alone.

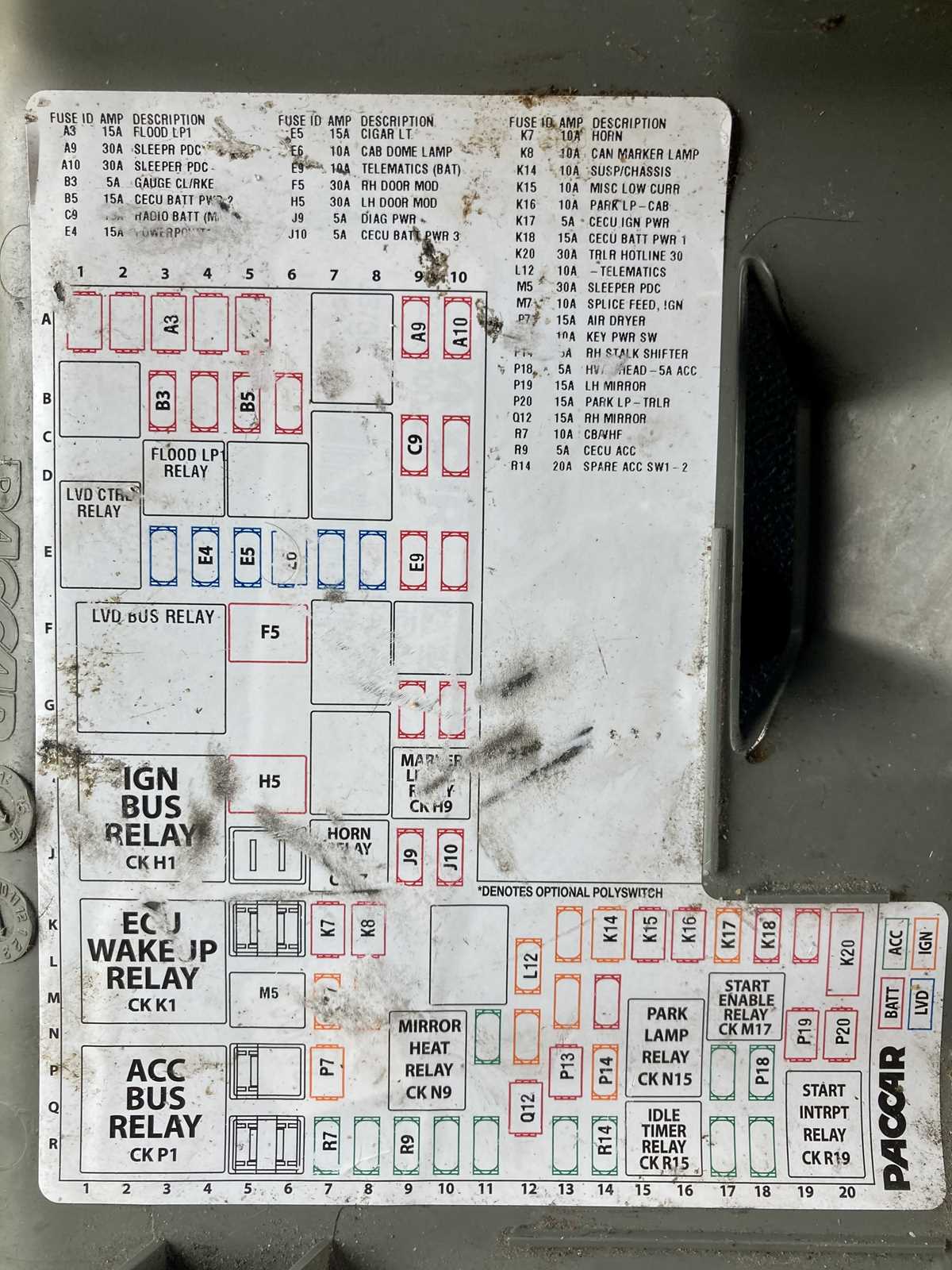

2013 Kenworth T680 fuse diagram with slot numbers and circuit assignments
Match each numbered slot in the cab and engine electrical panels with its circuit using the printed cover legend, then verify amperage ratings before any replacement. Check primary power circuits first, including starter relay, alternator feed, and lighting systems.
The slot layout groups circuits by function. Lower positions typically handle dashboard electronics, control modules, and communication systems, while mid-range slots supply HVAC units, air system controls, and driver interface components. Higher-amperage positions support motors, compressors, and external lighting. Each slot is calibrated for a specific load, and mismatched ratings can cause overheating or repeated interruptions.
Test voltage across both terminals with a multimeter while the circuit is active to confirm continuity. If a replacement element fails again, inspect connected wiring for insulation damage or short circuits rather than repeating installation.
Kenworth T680 fuse box locations in cab and engine compartment areas
Check the driver-side dash area first, where the main interior electrical panel is mounted behind a removable trim cover near the steering column. This location supports low and mid power circuits such as instrument cluster, infotainment system, and climate controls.
In the engine compartment, locate the sealed power distribution unit positioned close to the battery and main wiring harness. This section handles high-current systems:
- Starter and charging circuits
- Cooling fan motors
- Exterior lighting
- Air system components
Access panels carefully by releasing clips or fasteners without applying excessive force. Inspect the inside cover for slot identification labels before removing any component.
Keep both locations free of moisture and debris, as contamination can reduce contact quality and lead to unstable electrical operation.
