Open the engine compartment and inspect the main power distribution center near the battery, as it controls high-load systems like starter relay, cooling fans, and trailer tow circuits. Use the printed layout on the cover to match each slot with its assigned component before removal.
The panel contains multiple high-amperage links and relays arranged in rows with clear numbering. Check the amperage rating stamped on each element to confirm compatibility before replacing a damaged part.
Always disconnect the battery before working with high-current circuits to prevent short circuits or accidental contact. If a replacement fails again, inspect wiring harnesses and connected modules for faults instead of installing a higher-rated element.

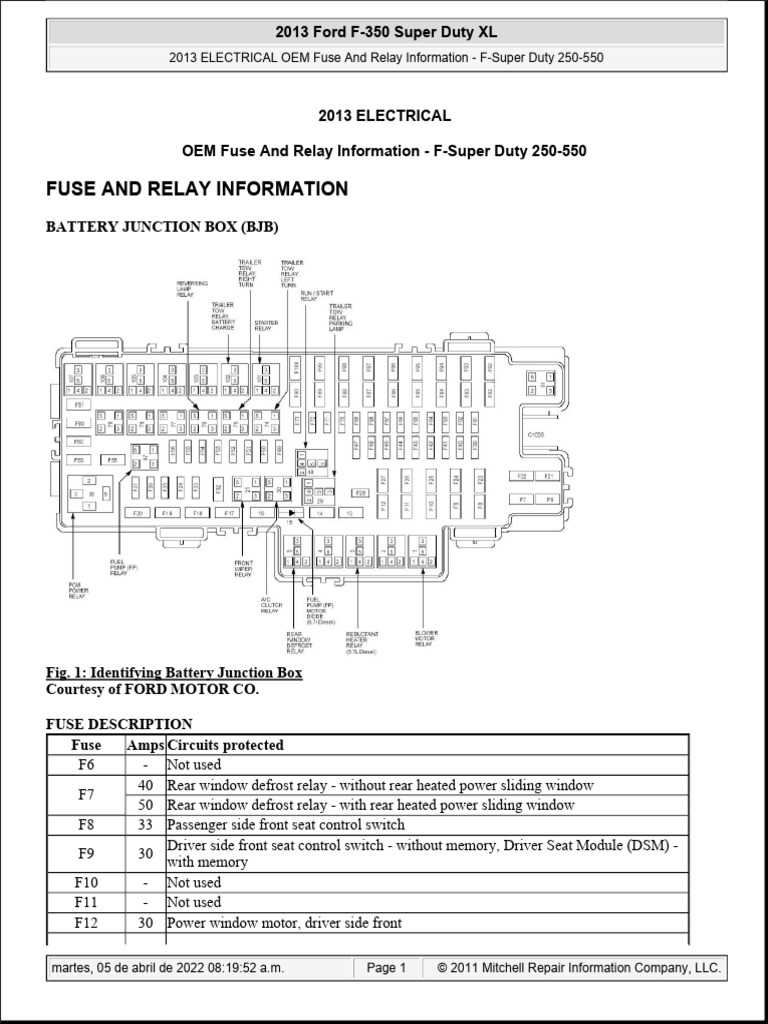

2013 Ford F350 Under Hood Fuse Box Diagram and Layout Guide
Lift the engine cover and locate the primary power distribution center near the battery on the driver side, then use the printed scheme inside the lid to match numbered slots with systems like starter circuit, trailer tow module, and cooling fan assembly before removing any component.

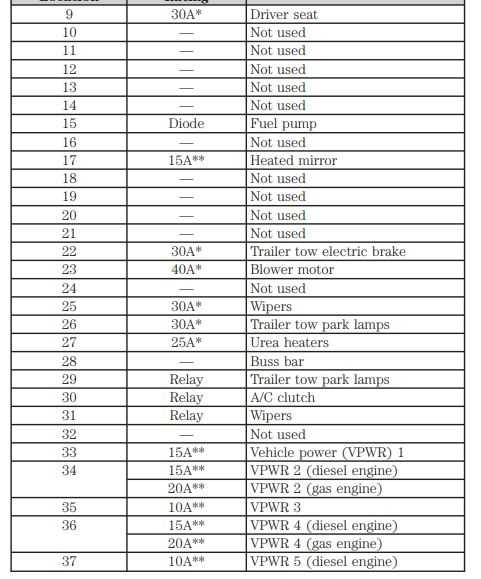

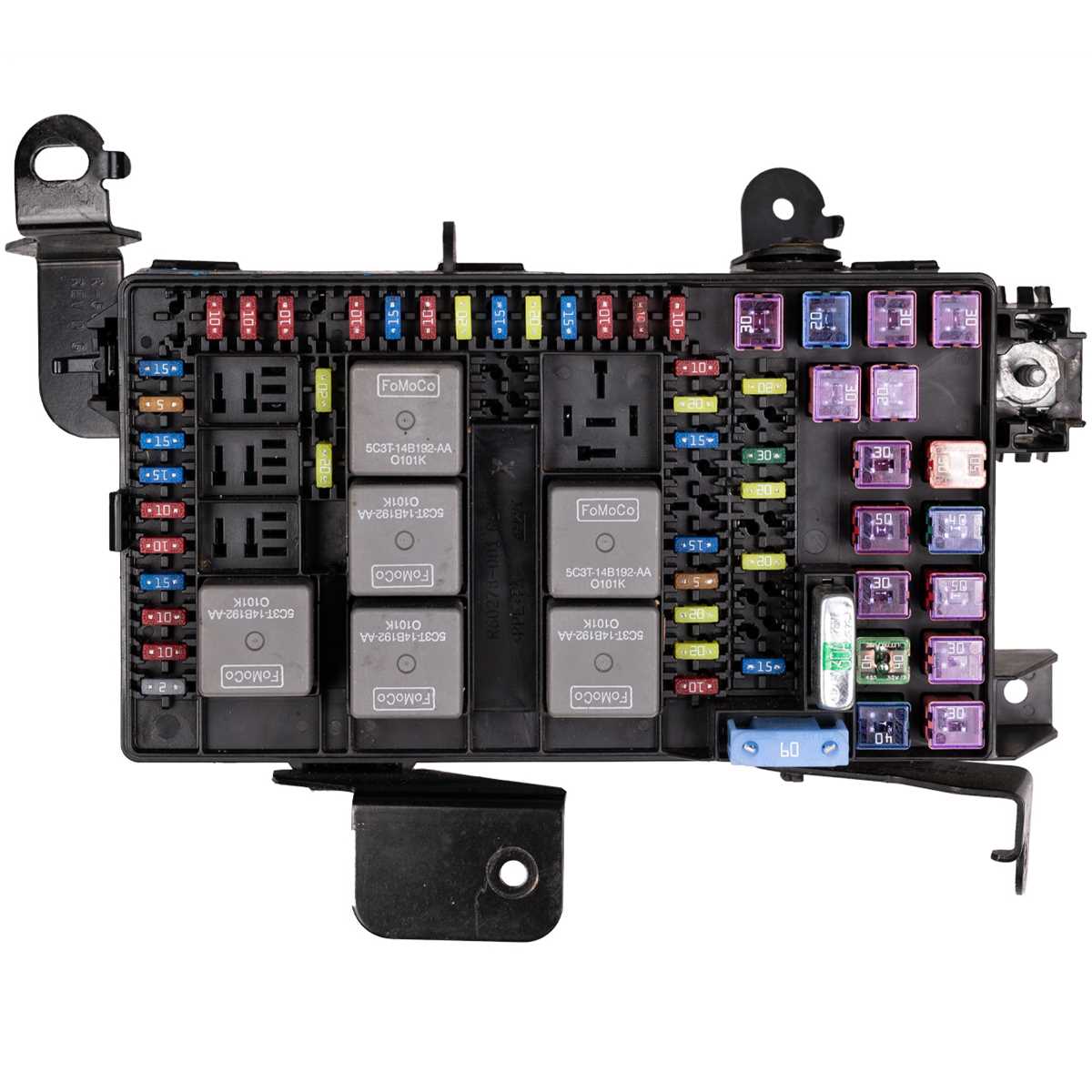

The layout is organized into high-amperage links and relay units placed in grouped rows; 30A to 60A elements typically serve heavy loads such as blower motor and ABS pump, while relay blocks control ignition, fuel delivery, and air conditioning clutch. Each position is labeled with a number that corresponds to the reference chart, allowing precise identification without trial removal.
Inspect the metal strip inside each element for breaks or burn marks, and confirm continuity with a multimeter if damage is not visible; repeated failure in the same slot indicates wiring issues, corrosion at connectors, or a failing component drawing excessive current.
Exact Position of Under Hood Fuse Panel in 2013 Ford F350 Engine Bay
Open the engine compartment and look on the driver side next to the battery, where the main power distribution center is mounted inside a rectangular plastic housing with a snap-on cover. This unit is fixed to the inner fender and remains visible without removing major components.
The cover has two locking tabs on the sides; press them inward and lift to access the internal layout. The printed scheme on the underside of the lid shows numbered positions that correspond to circuits such as starter relay, trailer brake control, and cooling fan system.
Clear space around the unit before opening, as nearby wiring harnesses and intake components can restrict access. Avoid pulling cables or shifting connectors while working in this area.
In some configurations, an additional distribution block may sit closer to the firewall, supporting secondary circuits. Check for a smaller panel with a separate cover if certain systems are not listed in the main unit.
Always keep the cover aligned and sealed after inspection to prevent moisture or debris from entering and affecting electrical contacts.
If access feels limited, remove the battery cover or intake duct temporarily to create more working space, then reinstall all parts securely after completing the inspection.
