Use the wiring layout chart for this side-by-side vehicle to identify each protection element and its circuit before touching any component. The panel with safety links is mounted under the front service cover, slightly offset toward the driver’s side. Each slot corresponds to a specific system: ignition relay feed, lighting circuit, cooling fan, fuel delivery, and auxiliary accessories. Typical ratings range from 10A for control circuits to 30A for high-load components, so matching amperage is mandatory to prevent overheating or repeated failures.
Access requires removing the front hood latch and lifting the panel cover; inside, a printed legend outlines slot positions and current ratings. If the legend is worn or missing, refer to a verified electrical chart for this model series. Pay attention to shared grounds and relay positions, as several circuits rely on common return paths. Misidentifying a slot can disable multiple systems simultaneously, especially in the case of the ECU supply and fuel pump relay feed.
For troubleshooting, use a multimeter set to continuity and voltage mode. Check each protective link by probing both terminals; a healthy element shows continuity and battery voltage on both sides when energized. If voltage appears only on one side, the link is open. For intermittent issues, inspect for corrosion on terminals and slight discoloration that indicates heat stress. Keep spare links of 10A, 15A, 20A, and 30A in a sealed kit to ensure quick replacement in field conditions.
2013 Arctic Cat Wildcat 1000 Fuse Box Diagram: Practical Guide
Check the power distribution layout under the front hood panel and verify each circuit slot against the printed scheme on the cover before replacing any element; mismatched amperage leads to repeated failures and wiring damage. Use a test light or multimeter to confirm voltage on both sides of each protective link rather than relying on visual inspection alone.
The electrical layout is divided into grouped circuits that control ignition, lighting, fuel delivery, and auxiliary outputs. Each position is marked with a number and a rated current value, typically ranging from 10A to 30A. A missing or blown insert will often correspond to a specific malfunction such as no crank, dead headlights, or inactive cooling fan. Keep a set of spare inserts with correct ratings in the storage compartment to avoid temporary workarounds that can overheat wiring.
Common Circuit Assignments
- Ignition and ECU supply – usually mid-range amperage, linked to starting and engine control
- Lighting system – separate lines for low/high beams and rear lamps
- Fuel pump relay feed – dedicated slot, failure results in crank without start
- Cooling fan – higher current rating due to motor load
- Accessory terminals – often unused or reserved for add-ons like winches or GPS units
When diagnosing faults, isolate the problem by removing one protective insert at a time and checking system response. If a replacement burns out immediately, inspect the downstream wiring harness for shorts against the frame or melted insulation near high-heat zones such as the exhaust side. Pay attention to ground connections; loose or corroded grounds can mimic a blown protective element.
Replacement and Maintenance Tips
- Always match the original current rating stamped on the insert
- Clean contact points with electrical cleaner before installation
- Secure the cover tightly to prevent moisture intrusion
- Label any modified circuits if aftermarket equipment is installed
- Inspect the panel after off-road rides involving water or mud
Consistent inspection of the electrical panel prevents unexpected shutdowns on trails. A small crack in the housing or debris buildup can lead to intermittent faults that are difficult to trace without a clear understanding of the circuit layout and load distribution.
Where the Electrical Panel Is Located and How to Access It Safely

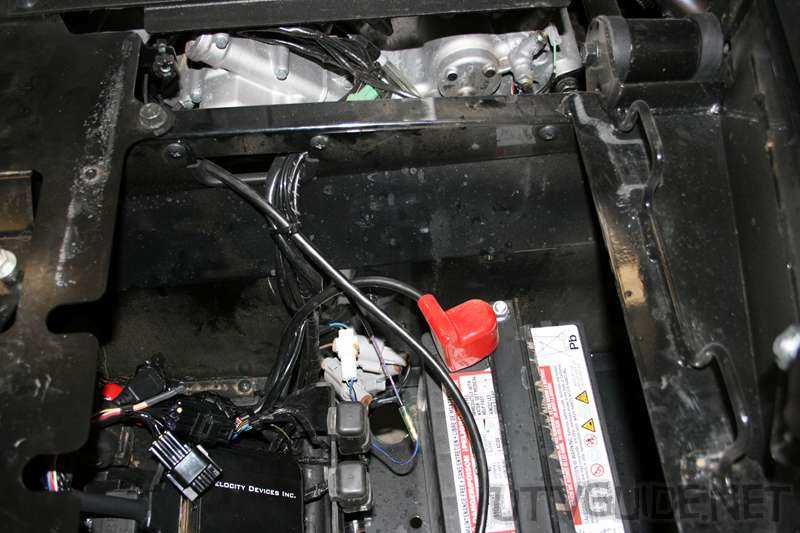

The electrical control module sits beneath the driver’s seat. Lift the cushion carefully to expose the protective cover, which is secured with two Phillips screws. Avoid pulling on wiring while removing the cover.
Before handling any connectors, disconnect the negative terminal of the battery to prevent short circuits. Use insulated tools to loosen fasteners and prevent accidental sparks.
The protective housing is compact and positioned against the chassis on the right-hand side. This location keeps it away from water and debris, but still within easy reach for maintenance or inspection.
Warning: Do not attempt to pry the panel open with sharp objects. This can damage terminals or the surrounding wiring harness, leading to electrical failures.
Once the cover is removed, labels on the internal fuses and relays provide guidance on which circuits they protect. Keep a small flashlight handy to read tiny text, especially under low light conditions.
After completing any checks or replacements, ensure all components are seated properly before reinstalling the cover. Loose connections can cause intermittent power loss or overheating.
Access Tips
Wear gloves to avoid skin contact with metallic terminals. Double-check that the battery remains disconnected until the panel is fully secured back in place.
Routine inspections can prevent sudden electrical issues. Keep the area clean and free of dirt, which can corrode connectors over time. A light spray of contact cleaner on terminals may improve conductivity if signs of oxidation appear.
