Locate the primary power distribution module beneath the dashboard on the driver’s side. This unit manages all critical circuits including lighting, climate control, and infotainment. Access requires gently removing the lower trim panel to avoid damaging connectors or clips.
Identify individual circuit assignments using the printed legend on the interior cover. Each slot corresponds to a dedicated system: engine management, horn, wipers, or auxiliary outlets. Verify amperage ratings before replacing any protective element to prevent overheating and electrical faults.
Service recommendations include labeling wires when detaching any harnesses to simplify reassembly. Check for signs of corrosion or melting around terminals, which can indicate intermittent failures or prior overcurrent events.
For troubleshooting unexpected shutdowns, use a multimeter to test continuity across connectors. Always disconnect the battery before performing any inspection to reduce the risk of shorts or accidental activation of sensitive modules.
Secondary distribution panels in the engine compartment support high-current circuits such as cooling fans and starter systems. Confirm each relay position and rating against the manufacturer’s reference guide before reinstalling covers.

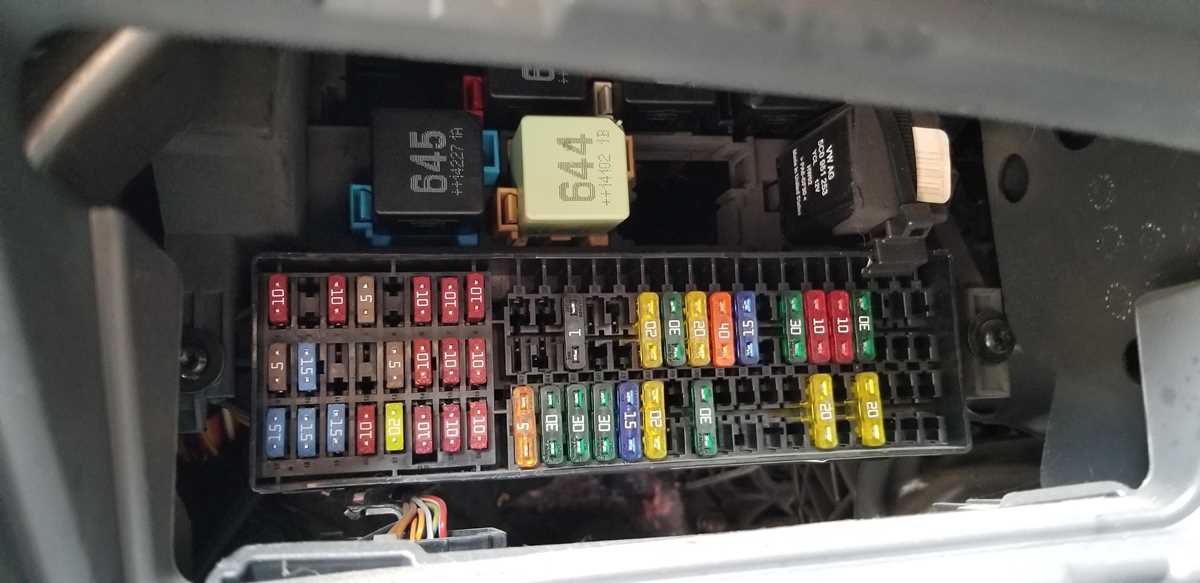

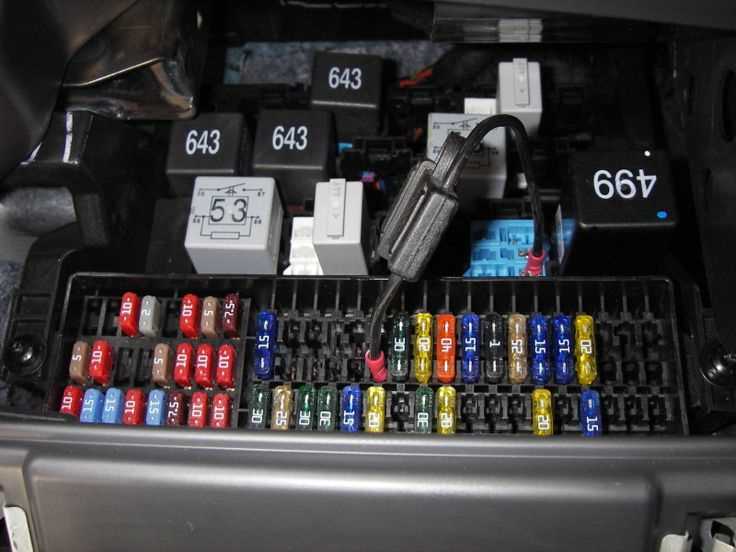

2012 VW Jetta GLI Fuse Box Diagram

Locate the primary electrical control panel beneath the dashboard on the driver’s side. Each miniature safety device is numbered and corresponds to a dedicated system, including lighting, climate control, and infotainment.
Passenger compartment wiring includes a secondary array near the glove compartment. Check position 14 for interior illumination circuits and 21 for rear defroster operation.
Under-hood protection modules sit adjacent to the battery. Slot 5 handles engine management electronics, while 12 safeguards the radiator fan and auxiliary cooling components.
Colored markers indicate amperage: red for 10A, yellow for 20A, blue for 15A, and green for 30A. Using the wrong rating risks component failure or melted connectors.
Replacement should match the exact miniature protective unit type. Pull gently with pliers if necessary, avoiding metal contact with terminals to prevent short circuits.
For diagnostics, a multimeter set to continuity can confirm a faulty unit. Touch one probe to each terminal; a beeping tone signals intact circuitry.
Keep a reference chart in the glove compartment. Quick identification of the electrical element and its corresponding miniature device saves time during roadside repairs or routine maintenance.
Locating the Power Control Panel in the 2012 VW GLI
Access the primary electrical panel by opening the driver-side lower dashboard compartment. Release the side clip and carefully pull the cover outward; the panel is mounted directly behind. Each slot is numbered, allowing quick identification of circuits related to lighting, audio, and climate control systems.
For the secondary control hub, lift the hood and inspect the right-hand side near the battery. The protective casing snaps off with a gentle squeeze on the tabs. Inside, a row of mini relays and fuses manage engine electronics, sensors, and auxiliary components. Keep a flashlight handy to see the printed markings on the back of the casing.
Tips for Quick Identification
- Check the inset labels on the cover for amperage ratings.
- Use a small magnetic tool to retrieve any misplaced connectors.
- Document positions with a smartphone photo before removing any modules.
- Replace the cover carefully to avoid damaging locking tabs.
