To resolve electrical issues, first locate the main control panel inside the cabin, positioned near the driver’s footwell behind a small cover. This panel manages the interior functions such as lighting, HVAC, and infotainment systems. To access it, remove the cover carefully without damaging the clips, which could cause difficulties during reassembly.
Next, inspect the larger panel under the hood, usually located near the battery area. This unit handles more powerful systems, including the engine management and air conditioning components. Ensure that each fuse is correctly seated and the labeling matches the correct system to avoid confusion when replacing any components. Always use the correct amperage for replacements as specified in the owner’s manual to prevent damage to the electrical circuits.
2012 F350 Electrical System and Wiring Layout
The main electrical control unit in the cabin is located beneath the driver’s side dashboard, just to the left of the footwell. To access it, remove the cover carefully, making sure not to damage the plastic clips that hold it in place. This panel controls interior systems such as lighting, power windows, and infotainment, so understanding its layout is key for diagnosing issues in those areas.

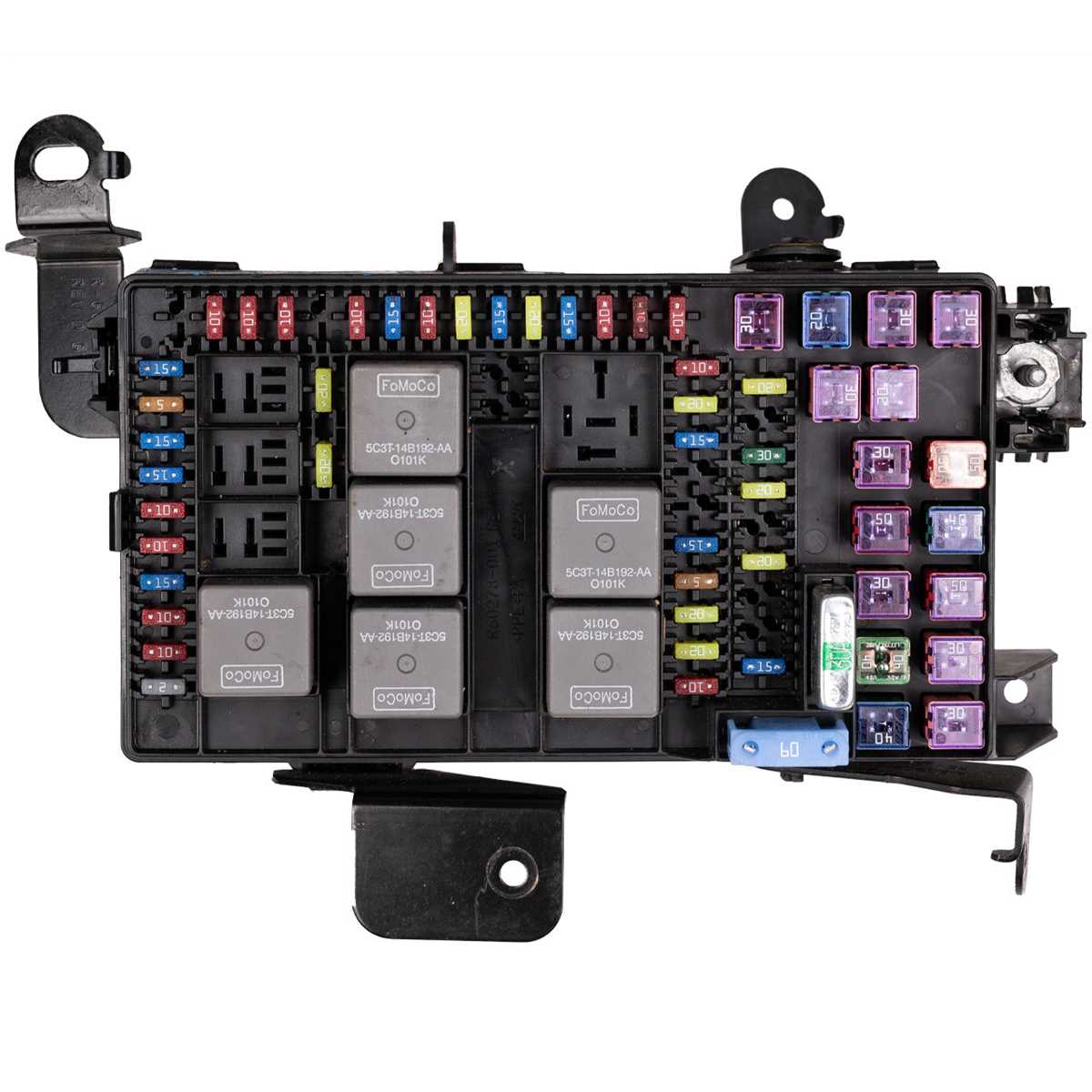

The second important unit is found in the engine compartment, near the battery area. This panel controls larger systems like the air conditioning, engine management, and cooling fans. The unit is more complex than the one inside the cabin, with additional fuses and relays that handle high-power components. When working with this panel, always disconnect the battery to avoid accidental shorts or electrical damage.
Each slot in these units is labeled, making it easier to identify the specific circuit that may be faulty. For example, the interior panel has dedicated slots for lighting, HVAC, and other convenience features. The larger panel under the hood is usually marked with labels for the engine and cooling systems. Make sure to verify the labeling against the owner’s manual to ensure accurate identification.
It’s important to use the correct amperage when replacing a blown component. Installing a fuse with a higher rating could lead to overheating or potential damage to the wiring system. The amperage ratings for each circuit are often marked directly on the panel cover or in the vehicle’s manual. Always double-check the manual for the proper specifications before installing a new fuse.
Replacing and Diagnosing Faults
If a fuse has blown, first identify the malfunctioning component by checking the relevant circuit on the label. You can then use a fuse puller or needle-nose pliers to carefully remove the damaged unit. After replacing the fuse, test the system to ensure proper functionality. If the new fuse blows immediately, there could be a short circuit or underlying issue that requires further investigation.
Preventive Maintenance Tips
Regularly inspect the panels to ensure they remain secure and free from debris. Dust or dirt buildup can interfere with electrical connections and lead to malfunctioning systems. Also, consider periodically checking the fuses to spot any potential issues before they cause a complete failure. Properly maintaining these panels will prolong the life of your vehicle’s electrical components.
How to Locate the Interior Fuse Panel in 2012 F350
The interior electrical control unit is positioned beneath the dashboard on the driver’s side, near the left footwell. To access it, start by removing the small cover panel that protects the unit. Use a flat tool, like a panel removal tool, to gently pry it open without damaging the clips. The panel controls many in-cabin features, so locating it is vital for troubleshooting lights, windows, and other electrical systems inside the vehicle.
After removing the cover, you’ll see a series of fuses and relays arranged in a grid-like layout. Each fuse slot is labeled, indicating the corresponding circuit it controls. For instance, you may find circuits for the headlights, dashboard lights, or audio system. These labels can save you time by quickly directing you to the faulty circuit.
Once the cover is removed, ensure that the area around the panel is clear of any obstacles, such as mats or other vehicle components, to allow full access. Using proper lighting will also help identify the labels and avoid mistakes when handling the components. In some cases, the cover may need to be removed completely to access the entire set of fuses.
If the cover is resistant or difficult to remove, make sure you are pulling the right release clips. Some panels are secured by more than one clip, so gently work around the edges until you can fully remove it. Avoid using excessive force to prevent damaging the plastic or connectors.
Inspection Tips for the Interior Panel
After accessing the panel, inspect the fuses for any signs of damage, such as burn marks or broken components. This can help you quickly identify the problematic fuse. For fuses that appear intact but aren’t working properly, consider using a fuse puller or a pair of needle-nose pliers to test them more thoroughly.
Reassembly and Maintenance
Once you’ve completed the inspection or repairs, replace the cover by aligning it properly with the mounting points and gently pressing it back into place. Ensure that all clips snap securely to avoid the cover becoming loose over time. Regularly check this panel as part of your vehicle’s maintenance routine to keep all electrical systems functioning properly.
