Locate the electrical panel layout before replacing any protective element to avoid mismatching amperage and causing further faults in onboard systems. Always verify the correct slot tied to the malfunctioning component using a reference chart.
This compact hatchback uses multiple power distribution panels placed under the dashboard and inside the engine compartment. Each panel contains grouped circuits linked to systems such as headlights, wipers, radio unit, and engine control module. Knowing the exact position of each group reduces troubleshooting time.
Use a multimeter to check continuity across the metal strip inside each protective insert. A broken connection usually indicates overload or short conditions. Replacing the insert without fixing the root cause often leads to repeated failure, especially in circuits with moving components like window regulators.
Pay attention to current ratings marked on each element, typically ranging from 5A to 30A in interior panels and higher values in the engine area. Installing a higher-rated piece can allow excess current to pass, increasing the risk of wiring damage and control unit failure.

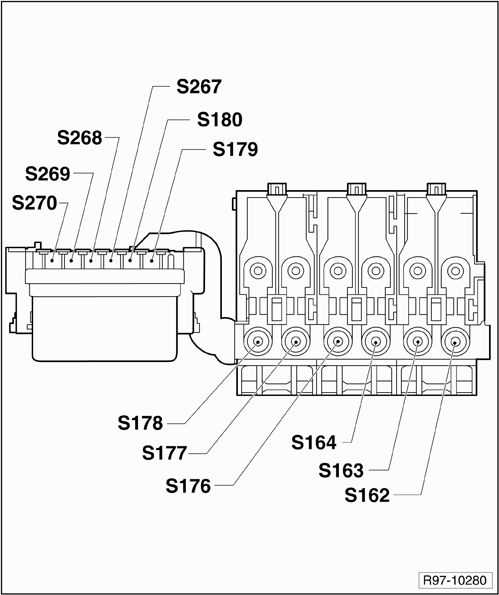

2011 VW Polo Fuse Box Diagram with Panel Locations and Circuit Assignments
Check the panel map printed inside each cover to match circuits with their assigned slots before removing any protective insert. This prevents installing the wrong amperage and avoids damage to wiring or control units.
The vehicle uses two primary power distribution areas: one inside the cabin on the driver side behind a removable trim panel, and another in the engine compartment near the battery. Each section is divided by function, separating low-load electronics from high-current systems.
Interior Panel Circuit Allocation
Cabin-mounted slots handle most comfort and control features:
- 5A–10A: dashboard lighting, instrument cluster, control switches
- 15A: audio system, accessory outlets, central locking
- 20A–25A: window motors, wiper system
Use the exact rating shown on the slot label to maintain stable operation of electronic modules.
Engine Compartment Circuit Allocation
Under-hood section supports higher load components tied to engine operation:
- 30A–40A: radiator fan, ABS pump
- 40A+: blower motor, main power supply circuits
- Relays: ignition system, fuel delivery control
High-current sections require extra caution, especially during removal or inspection.
Inspect each metal strip inside the insert under good lighting; a visible break indicates failure. If the same slot fails repeatedly, trace the connected circuit for damaged insulation or moisture exposure rather than replacing the component again.
Where Each Fuse Box Is Located in 2011 VW Polo and How to Open Them
Remove the side cover on the driver’s dashboard to reach the interior electrical panel; use a plastic trim tool to gently pry the edge and release the clips without cracking the panel.
The main cabin unit sits behind this removable trim and contains low-amperage circuits for interior systems. Pull the cover straight outward, then tilt it slightly to fully detach. A small chart is usually fixed on the inner side, showing slot positions and circuit roles.
Open the hood to access the engine compartment distribution unit positioned near the battery. Press the locking tabs on both sides of the plastic lid, then lift it upward. This section contains higher-rated elements linked to engine cooling, braking systems, and main electrical supply lines.
Switch off ignition and remove the key before opening any panel. Disconnect the battery when working near high-current circuits to reduce the risk of accidental short contact, especially in the engine area where exposed terminals are close together.
