Check the panel cover label first to match each slot with its circuit before removing any protective element, as incorrect replacement can lead to system faults or wiring damage.
The heavy-duty pickup uses two main electrical distribution units: one inside the cabin and another under the hood. The interior block is typically positioned beneath the dashboard on the driver side, while the engine compartment unit sits near the battery. Each contains a mix of blade-type protectors and relays controlling lighting, HVAC, control modules, and power accessories.
Pay attention to amperage ratings stamped on each component, usually ranging from 5A for control circuits up to 50A or more for high-load systems like cooling fans and power seats. Always match the rating exactly, since higher values can overheat wiring, while lower ones may fail under normal load.
Use a multimeter to test continuity across metal contacts rather than relying on visual inspection alone, as internal breaks are not always visible. This approach helps identify faults in circuits such as radio, trailer wiring, or ignition systems without unnecessary removal of multiple elements.

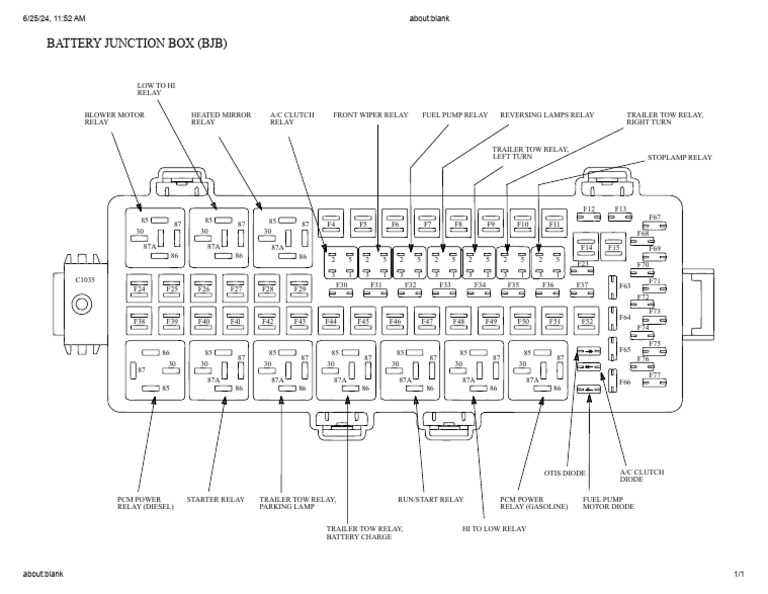

2010 F350 Fuse Diagram with Panel Locations and Circuit Details
Locate the interior power distribution unit under the driver side dash and verify each slot using the label printed on the cover before removing any component.
The cabin unit controls low to medium load systems and uses mini blade elements arranged in rows. Common assignments include lighting circuits, audio system, instrument cluster, and accessory sockets. Ratings typically range from 5A to 30A depending on load requirements.
- 5A–10A: control modules, dashboard electronics
- 15A–20A: radio, outlets, interior lighting
- 25A–30A: power seats, window motors

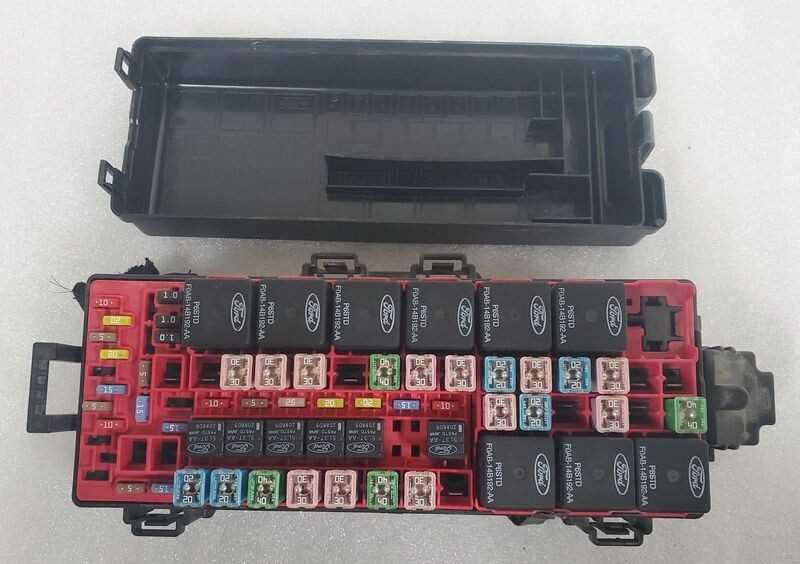

Access the engine compartment unit by opening the hood and locating the sealed housing near the battery on the driver side. Release the side clips to remove the lid and reveal larger cartridge-style protectors and relays.
High-current circuits are managed here, including cooling fans, starter relay, trailer power feed, and anti-lock braking system. These components often range from 30A up to 60A or more, depending on configuration and installed options.
- Identify the faulty circuit using the cover layout
- Remove the element with a puller tool
- Check continuity using a multimeter
- Install a replacement with identical rating
Trace wiring colors from each slot to confirm circuit paths; red wires often indicate constant battery supply, while yellow or blue may correspond to switched ignition circuits.
Keep contact points clean and free of corrosion, as poor connections can lead to intermittent faults such as flickering lights or non-responsive accessories.
How to identify interior fuse panel slots and their functions in 2010 F350
Read the legend printed on the panel cover to match each slot number with its assigned circuit before touching any component.
The cabin electrical block is arranged in a grid with numbered positions. Each position corresponds to a specific system such as radio, instrument cluster, power outlets, or lighting circuits. The numbering sequence usually runs left to right and top to bottom, making it easier to trace a specific slot using the reference chart.
Use the amperage marking on each blade element to confirm its role, since lower values like 5A or 10A typically support control modules, while higher values like 20A or 30A handle motors and accessory power lines.
Identify circuits by combining three details: slot number, color of connected wires, and rating stamped on the top. For example, a 15A element connected to yellow or blue wiring often links to ignition-switched systems, while constant power feeds are commonly paired with red wiring.
Test each slot with a multimeter by probing both terminals; a working component shows continuity, while a broken one reads open. This method avoids misdiagnosis caused by hairline breaks that are not visible.
Keep track of removed parts and return them to the same position, as swapping locations can disrupt multiple systems and complicate further troubleshooting.
