If you’re facing electrical issues in your vehicle, start by checking the main electrical panel located in the rear compartment. This panel controls many of the critical electrical components, and knowing its layout can save you time during troubleshooting.
To access this panel, you’ll need to remove any covers or panels blocking it. In most cases, the panel is easily accessible once you remove the trunk liner or a plastic cover. Refer to the owner’s manual to identify the exact location of the panel and how to remove any obstructions.
Once you’ve located the panel, make sure to examine the connections carefully. Check for any loose or corroded connections, which can cause electrical issues. If a fuse has blown, replacing it with the correct amperage fuse should restore functionality to the affected circuit.
In addition to fuse replacement, it’s important to regularly inspect the wiring and connections for signs of wear or damage. Over time, wires can degrade, leading to short circuits or complete failure of electrical components. Regular maintenance and quick fixes can prevent larger problems from occurring down the line.
2010 Chrysler 300 Trunk Electrical Panel Guide

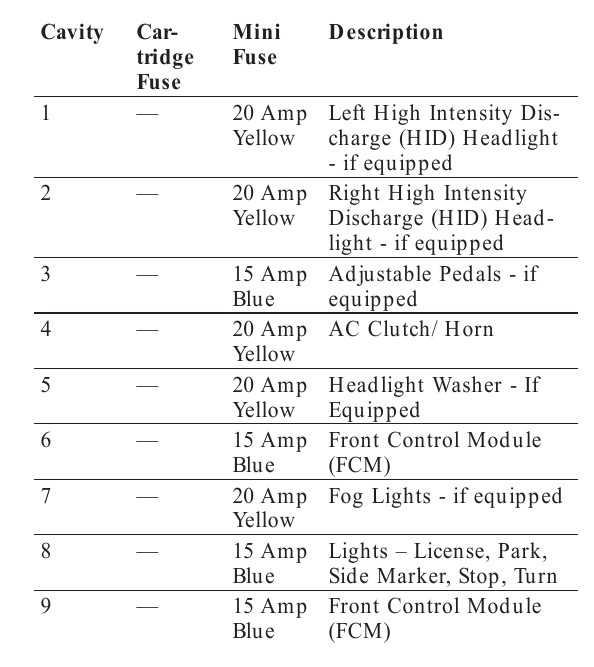

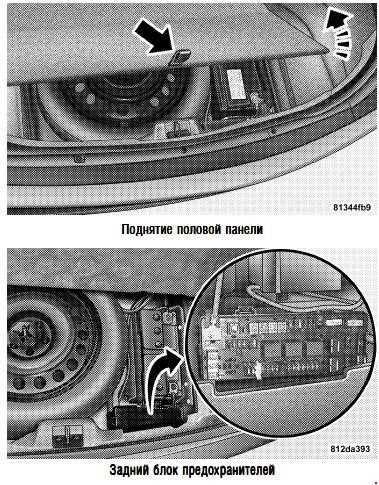

Start by locating the electrical panel in the rear compartment, where critical circuits for lights, power systems, and various accessories are managed. The panel is typically positioned near the rear seat area or beneath a protective cover that must be removed for access.
To ensure easy access, remove the lining or plastic covers that may obstruct the panel. It is recommended to use a plastic pry tool to prevent damaging any interior components. The panel will usually be mounted against the wall or floor of the compartment, secured with screws or clips.

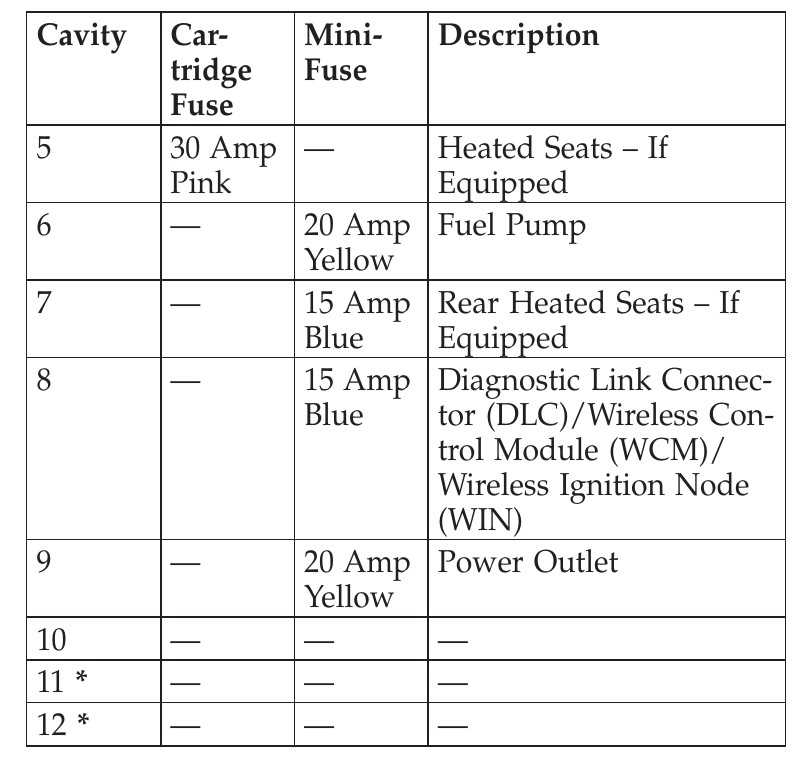

Once exposed, check the panel for any loose connections, burnt-out connectors, or blown circuits. A quick inspection can identify the cause of electrical malfunctions. Replace damaged components with parts that match the original specifications to avoid further issues. Always refer to the vehicle’s manual for the correct fuse amperage and part numbers.

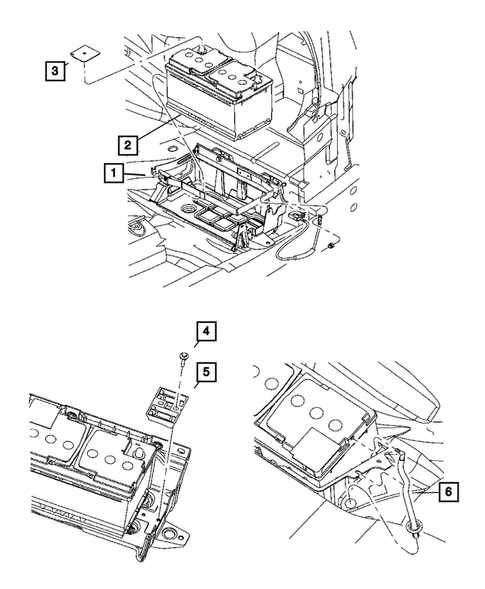

How to Locate the Electrical Panel in a 2010 Chrysler 300
To find the electrical panel in the rear section, open the compartment and inspect the area near the side or floor. The panel is generally housed behind a plastic cover or trim piece that must be removed before you can access it.
Begin by removing the carpet lining or any protective covers using a plastic trim tool. Look for a panel secured with screws or clips. In most cases, the panel will be mounted along the side wall or near the rear seat area. Check both sides if you cannot immediately locate it in one spot.
Once the cover is removed, carefully inspect the panel for any visible signs of damage or wear. It is advisable to have a flashlight or work light to better view the area. Replace the cover after completing any maintenance tasks to prevent dirt or debris from entering the panel.
