Check the interior panel at the driver-side lower dash before touching any electrical part: the cabin unit usually carries low-amperage links for the radio, accessory socket, blower control, meter cluster, and central locking, while the engine-bay unit handles higher-load circuits such as cooling fans, ABS supply, headlamps, and charging support. Use the amperage printed on the plastic body of each link, match it exactly, and pull the suspect piece with a plastic extractor rather than metal pliers.
On this Mitsubishi sedan, the fastest way to identify the correct layout is to compare cabin-side labeling with the under-hood legend, because trim level, market, and transmission can shift slot assignments. A 10A position may protect interior electronics in one version, while another trim may assign that cavity to mirror control or a spare location. Never install a higher-rated insert; a 15A replacement in a 10A slot can overheat wiring before the protective element opens.
For no-crank complaints, inspect the engine-compartment relay and high-current protection points first, then verify battery voltage at rest; anything near 12.6V is healthy, while readings around 12.0V or lower can mislead diagnosis by creating relay chatter and false module faults. For dead cabin accessories, test both sides of the small blade insert with a multimeter or test light while the circuit is energized. A visual check alone misses hairline breaks that are hard to spot through tinted plastic.
Pay close attention to repeated failures in the same slot. If the replacement burns out again right after ignition-on, the fault is usually downstream: chafed insulation near the firewall, moisture in a lamp connector, a shorted accessory socket, or an aftermarket audio lead tied into the wrong feed. Disconnect added equipment first, then retest. That approach isolates the problem faster than swapping relays or replacing random electrical parts.
This guide focuses on slot location, amperage values, relay positions, and practical testing points so you can trace faults without stripping half the dashboard. The goal is simple: identify the correct panel, confirm the protected circuit, and restore power without risking harness damage or module failure.
Mitsubishi compact sedan power-distribution map: exact link positions and circuit identification

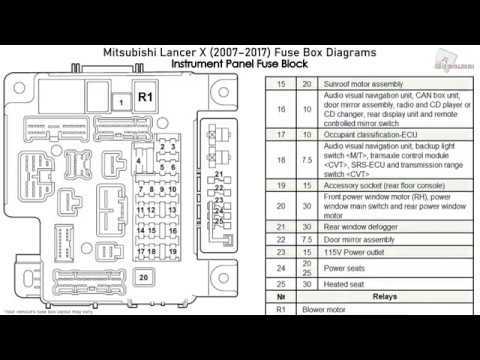

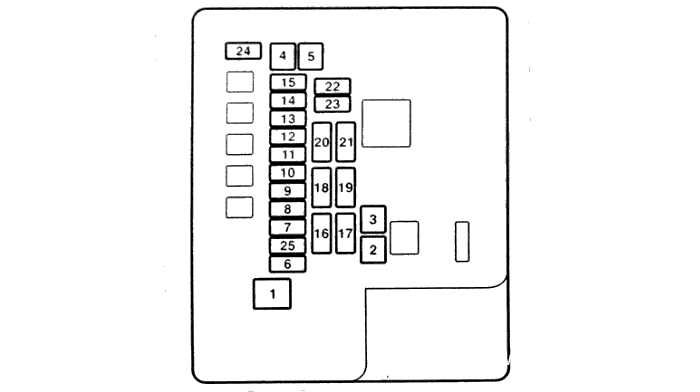

Check the cabin panel first: it sits behind the small trim cover at the lower left side of the dashboard, beside the driver’s knee area. The slot layout is arranged in horizontal rows, and the quickest way to identify the needed circuit is by amperage and function together: 7.5A usually serves low-load control lines such as mirrors or electronic modules, 10A often protects lighting and audio branches, 15A is commonly assigned to sockets, washers, or horn lines, and 20A–30A is used for motors such as the blower.

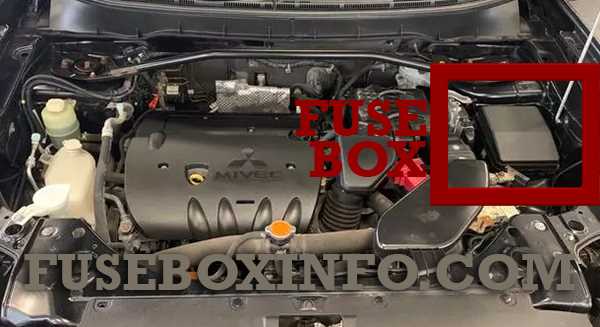

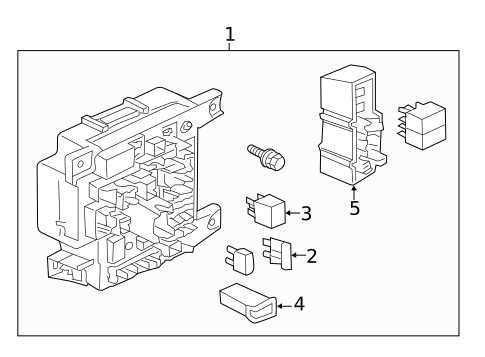

Under the hood, the power center is mounted near the battery. This unit carries the high-load protection links for cooling fans, ABS, headlamps, charging, ignition supply, and engine management. Large cartridge-style elements here are normally rated far above the mini blade type inside the cabin, so a visual check for melting around the plastic housing matters as much as continuity testing. If a headlight, fan, or starter-related supply fails, inspect this engine-bay section before touching the interior panel.
The passenger-compartment chart is easier to read if you split it by function instead of by row number. Lighting circuits are grouped around tail lamps, stop lamps, interior lamps, and turn indicators. Comfort systems include power windows, central locking, mirrors, and HVAC controls. Driving and control lines include meter cluster, SRS, ABS signal feed, engine control unit supply, and transmission logic. This method cuts diagnosis time because one failed feature often shares a branch with one or two related loads.
For the cabin unit, common service targets are the cigarette lighter / accessory socket line, radio memory feed, heater blower supply, wiper motor protection, and central locking. If the socket is dead but the audio presets still stay stored, test the accessory branch first rather than the constant-memory circuit. If the blower works only on one speed, the problem is more often the resistor pack; if it does not run at all, then the related protection link, relay, motor connector, and ground point all need checking in sequence.
The engine-bay section usually contains dedicated positions for radiator fan motor, condenser fan, electronic throttle or engine-control feed, horn, front lamp supply, anti-lock brake unit, and main ignition distribution. A no-crank condition with normal cabin electronics can point to the starter relay path or a high-amperage strip near the battery terminal assembly. If both cooling fans stay inactive during overheating, test for battery voltage on the fan circuits directly at this compartment rather than relying only on visual inspection.
Use a multimeter, not just a pull-and-look method. With ignition off, place the black lead on chassis ground and probe both test points on top of each blade-type protector; voltage on one side only means the link is open. No voltage on either side means the circuit is not being fed in that key position. This distinction matters on switched branches such as HVAC, wipers, and accessory outlets, because many of them energize only with ACC or ON selected.
Replacement must match the original amp value exactly. A 10A slot gets 10A only; installing 15A or 20A to stop repeat failure risks melted wiring, damaged connectors, or module failure farther downstream. If the new link blows at once, disconnect the load on that branch and re-test: for example, unplug the washer pump, blower motor, horn, or audio unit one at a time. A repeated short after all loads are disconnected points to harness damage, often near hinge areas, sharp brackets, or aftermarket splices.
For fast fault isolation, use this order: confirm the failed feature, locate its interior or engine-bay position, verify amp rating, test both top contacts with the correct key state, swap only the matching relay where relevant, and inspect grounds before replacing parts. This model’s electrical layout is straightforward once the circuits are grouped by lighting, comfort, engine management, and motor loads rather than by row alone.
