Open the engine compartment panel near the battery and check the printed layout on the cover to match each slot with its assigned circuit before removing anything. Verify amperage ratings such as 20A for fuel system and 40A for cooling fan to prevent incorrect replacement and wiring overload.
This power distribution center handles high-current systems including ignition coils, ABS module, radiator fan, and charging circuits. Disconnect the negative battery terminal before touching internal components to reduce the risk of short circuits or accidental activation of relays.
Each position is labeled with a number that corresponds to a specific function like starter relay, PCM power, or trailer tow circuits. Inspect the metal strip inside each element for breaks or discoloration, and confirm continuity with a multimeter instead of relying only on visual signs.
2009 F150 Fuse Box Diagram Under Hood with Layout and Circuit Details
Check the power distribution panel next to the battery and read the printed scheme inside the cover to identify each slot by number and function before removal. Match amperage values like 30A for blower motor and 50A for ABS pump to avoid installing incorrect components.
This compartment contains high-current protection elements and relays responsible for engine control module supply, fuel pump operation, cooling fans, and trailer wiring circuits. Always switch off ignition and disconnect the battery ground cable before accessing internal parts to prevent electrical spikes.
Each numbered position corresponds to a specific circuit, including starter relay, alternator output link, and powertrain control feed. Visual inspection should focus on the internal metal strip; a break or dark mark indicates failure. For accuracy, use a multimeter to confirm continuity across terminals.
Relays are grouped within the same panel and control switching for systems like headlights, AC compressor, and ignition. Swap identical relays from non-critical circuits to test functionality before replacing them.
Common circuit assignments include ignition system power, radiator fan control, battery charging line, and trailer tow connectors. Follow the labeled layout closely to trace faults quickly and prevent damage to wiring harnesses.
Exact location of under hood fuse box and how to access the cover safely

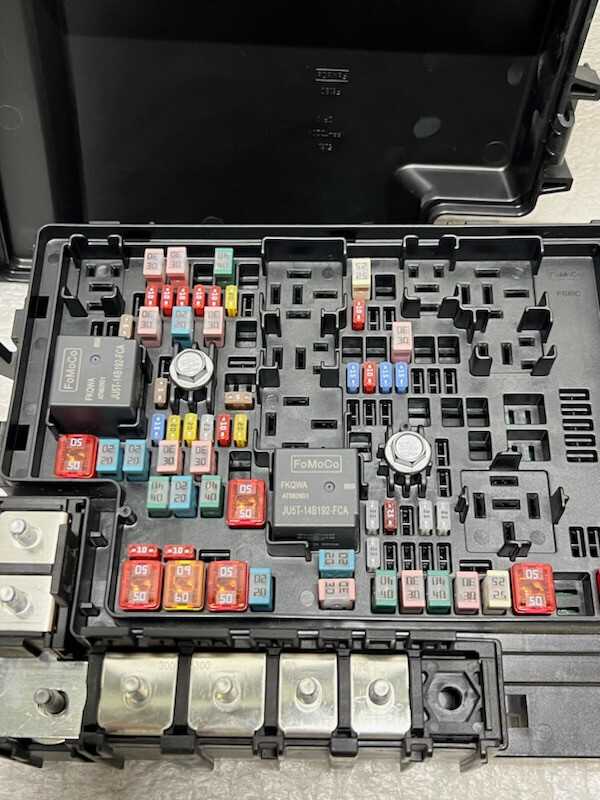

Locate the power distribution unit on the driver side of the engine bay, positioned next to the battery and close to the fender edge. Identify the rectangular plastic housing with a snap-on lid, which contains high-current protection elements and relays for major vehicle systems.
Release the cover by pressing the locking tabs on both sides and lifting upward evenly. Avoid using excessive force, as the clips can break and lead to poor sealing. Disconnect the negative battery terminal before opening to prevent accidental contact with live circuits and reduce the risk of shorting sensitive components.
Follow these steps for safe access:
- Turn off ignition and remove the key
- Disconnect battery ground cable
- Press side clips and lift the lid carefully
- Check the underside label for slot identification
- Store removed parts in a clean, dry place
