Check the driver-side kick panel first: the interior block sits behind a removable cover near the lower dashboard and contains most low-current links for lighting, audio, and control modules. Verify power on both контакты of each slot using a multimeter instead of relying on visual checks.
Under the hood, locate the main power distribution unit next to the battery. This box manages high-load circuits such as radiator fan, ABS, ignition supply, and charging system. Each position is numbered and tied to a specific component group.
Match amperage ratings exactly. Common values include 7.5A, 10A, 15A, 20A, and 40A. Installing a higher-rated link risks wire damage, while a lower rating may fail during normal operation. Keep a set of spare blade links for quick replacement during diagnostics.
If the same slot fails repeatedly, inspect the connected circuit for shorts or worn insulation, especially around sliding doors, under seats, and near hinge points. Targeted testing of each branch helps isolate the source without replacing working components.
Full box layout and circuit assignments for a late-2000s minivan electrical system

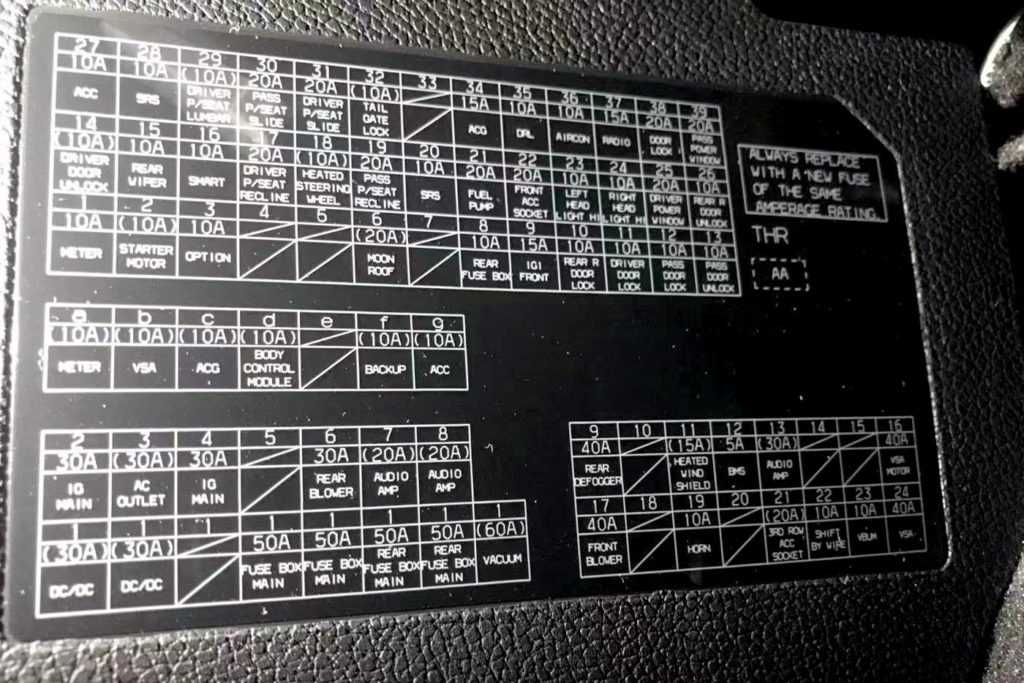

Use the cover label as the primary reference point: it maps slot numbers to circuits and helps identify which component is tied to each position before removal. Cross-check numbering with a wiring chart for accuracy.
The cabin-mounted block includes low to mid amperage elements supporting interior lighting, infotainment, power sliding doors, and dashboard systems. Most slots range from 7.5A to 20A and are grouped by function to simplify tracing.
Under-hood distribution focuses on high-current потребители such as cooling fans, ABS pump, ignition feed, and charging system. These positions often use 30A to 60A cartridge-style links placed in a sealed enclosure near the battery.
Typical slot grouping inside the cabin panel
- 7.5A – instrument cluster and warning indicators
- 10A – audio system and interior accessories
- 15A – brake lights and power outlets
- 20A – sliding door motors and window controls
Each position has a defined power path: input from the supply rail and output toward the component. Check voltage on both sides to confirm continuity; power on one side only signals a failed element.
Main circuits handled in the engine compartment unit
- Cooling fan relay and motor supply
- ABS control module and pump
- Alternator output protection
- Ignition and engine control feed
Repeated failure in one slot often indicates wiring damage or a shorted device. Inspect harness sections near door tracks, under seats, and around the engine where heat and movement increase wear.
Location of interior and engine bay fuse boxes in 2008 Odyssey

Open the driver-side lower dash panel to access the cabin-mounted block; it sits to the left of the steering column behind a removable cover. Pull the trim panel straight outward to reveal rows of blade-style links assigned to lighting, audio, and control modules.
Lift the hood and look near the battery on the left side of the engine compartment. The main power distribution unit is enclosed in a black plastic housing with clips; inside are larger cartridge links and relays handling high-load systems such as cooling fans and ABS.
Use a flashlight for the interior section due to limited visibility, and check the engine compartment enclosure for moisture or corrosion. Access conditions differ: the cabin block is compact and shielded, while the under-hood unit is exposed to heat and vibration, which can affect connections over time.
