Check the power distribution layout first by opening the under-hood module near the battery and the interior block behind the lower dash panel on the driver side. Match each slot number with its circuit role using the factory chart printed on the cover or service manual to avoid pulling the wrong component.
Use a test light or multimeter to confirm voltage on both terminals of each blade insert before replacing anything. A good element will show continuity and power on both sides, while a failed one typically shows voltage on only one terminal. This quick verification prevents unnecessary part swaps.
Pay attention to amperage ratings stamped on each piece, ranging from 10A for accessories like radio or interior lights to 40A or higher for systems such as cooling fans or power seats. Never install a higher-rated replacement, as this can lead to wiring damage or component failure.
Locate relay positions within the same modules for systems like fuel pump, starter, and horn. Swap with an identical relay from a non-critical circuit to test operation before purchasing a new unit. This method helps isolate faults without additional tools.

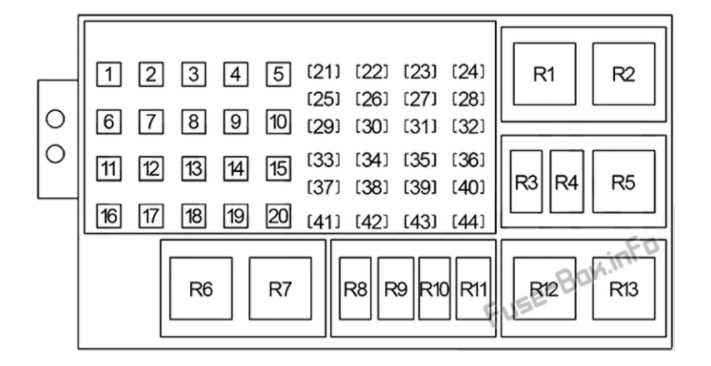

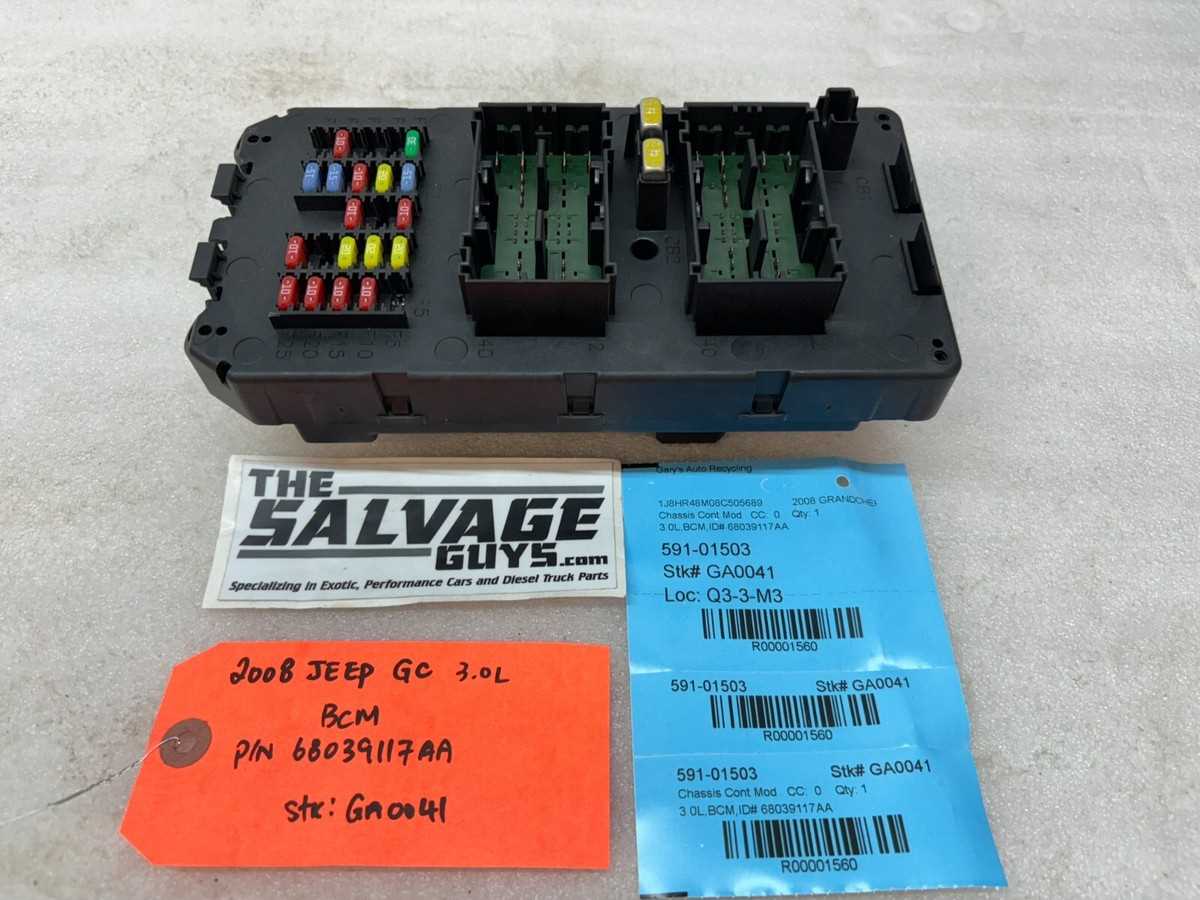

2008 Grand Cherokee Fuse Box Diagram with Locations and Circuit Details
Locate the under-hood power distribution center next to the battery, then compare cavity numbers with the legend printed inside the cover to identify each circuit before removal. Always verify the slot index to avoid disabling unrelated systems.

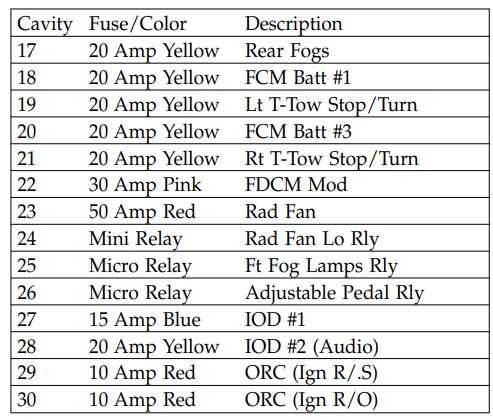

Main circuits are grouped by function, with higher amperage inserts (30A–60A) handling systems like radiator fan, ABS pump, and ignition feed, while lower ratings (10A–20A) supply interior lighting, audio unit, and control modules. Each position is labeled with a number and function code, which should match service documentation for accurate identification.
Typical circuit distribution
- Cooling fan relay and power feed located in the front row of the engine compartment module
- Fuel pump relay positioned near the center section for quick access
- Headlamp and exterior lighting circuits grouped along one side
- Cabin electronics supplied through the interior junction block under the dashboard
Inside the cabin, the junction unit behind the lower dash panel contains circuits for HVAC control, power outlets, and instrument cluster. Use a puller tool to remove each insert cleanly, then check the metal strip for breaks or discoloration before installing a replacement with identical rating.
Exact location of interior and engine compartment fuse boxes in 2008 Grand Cherokee
Open the hood and check the power distribution center mounted directly beside the battery on the passenger side; it is covered by a black plastic lid with locking tabs, and the internal layout map is printed underneath that cover for quick reference when identifying circuits.
Inside the cabin, remove the lower dash trim panel on the driver side to access the junction block positioned near the steering column; it sits slightly above the footwell area, secured within a bracket, and can be reached by pulling off the protective cover to expose rows of blade inserts and relays tied to interior systems such as HVAC, radio, and instrument cluster.
