Access the power distribution panel from the driver-side lower dash area and confirm each circuit identifier against the printed legend on the cover. In medium-duty trucks of this series, the panel typically includes grouped blade protectors rated from 5A to 30A, with relays positioned in a separate row. Pay attention to circuits responsible for ignition feed, exterior lighting, HVAC blower, and auxiliary ports, as misidentification can lead to cascading faults.
Use a multimeter to check continuity and voltage presence rather than relying solely on visual inspection. Oxidation on contacts or micro-fractures in the element can mimic an intact state. For accurate tracing, follow harness color codes–common combinations include red/white for constant battery supply and yellow/black for switched ignition lines. Cross-reference these with stamped markings on the panel housing to avoid confusion.
Disconnect the negative terminal before removing any protective elements to prevent short circuits. When replacing, match amperage ratings precisely; installing a higher-rated component can damage wiring insulation and downstream modules. If repeated failure occurs on the same line, inspect load devices such as lighting assemblies or control modules for excessive current draw.
For deeper diagnostics, map each slot to its corresponding system by noting relay click responses during key-on cycles. This helps isolate functions like starter engagement, fuel delivery, and cabin electronics. Keep a printed or digital reference of the layout nearby, as factory markings may fade over time, especially in high-temperature environments.
2007 International 4200 Fuse Box Diagram: Practical Guide
Check the power distribution chart printed on the inner cover of the electrical panel before touching any circuit–this label maps each slot to its protected system and prevents accidental shutdown of critical units like ignition or ABS. Use a multimeter set to continuity mode to verify a suspected blown element instead of relying on visual inspection alone; hairline breaks are common and easy to miss. Match amperage strictly (e.g., 10A, 15A, 20A) and never install a higher-rated insert, as this risks wiring damage. Keep a small puller tool in the cabin to remove components without bending contacts, and label any replaced positions with a marker to track recurring faults.
Locate the main panel under the dashboard on the driver’s side, then cross-reference positions with the service manual page dedicated to electrical routing. Typical layout includes grouped circuits for lighting, HVAC, engine control, and auxiliary equipment. Follow this sequence when diagnosing a failure:
- Turn off ignition and disconnect the battery negative terminal.
- Identify the circuit slot using the printed chart.
- Remove the protective insert with a puller.
- Test continuity or resistance; replace if open.
- Inspect contacts for corrosion or heat discoloration.
- Reconnect battery and verify system operation.
For repeated outages in the same slot, trace the wiring harness for abrasion near mounting brackets and check grounding points along the chassis rail. Keep spare inserts of common ratings in a sealed container to avoid moisture exposure.
Exact Location of Fuse Boxes in the 2007 International 4200 and How to Access Them Safely

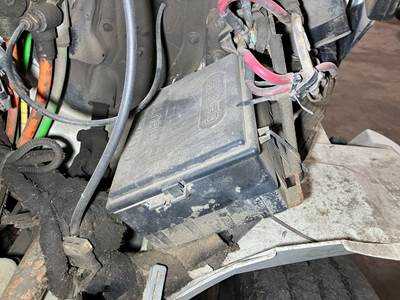

Check under the driver-side dashboard first: the primary electrical panel sits behind a removable trim cover just below the steering column, slightly offset toward the left kick panel. A second unit is mounted in the engine compartment on the driver’s side firewall, enclosed in a weather-sealed housing with snap latches. A third distribution panel may be installed behind the passenger-side dash section, accessible by removing a rectangular plastic cover secured with clips rather than screws.
Disconnect the negative battery cable before opening any electrical compartment; this prevents accidental short circuits while handling relays or blade elements. Use a plastic trim tool to pry open interior panels to avoid cracking the surrounding dashboard material. For the engine bay unit, release the retaining clips evenly and lift the lid straight up; moisture seals can stick, so apply steady pressure instead of forceful jerking. Keep a flashlight angled from above to clearly read circuit labels, which are often printed in small font inside the cover.
Wear insulated gloves and avoid touching metal contacts directly, especially if the system was recently powered. After accessing the panels, verify amperage ratings before replacing any component–installing a higher-rated insert risks wiring damage. Reattach all covers firmly to maintain protection from dust and vibration, and reconnect the battery only after confirming that no tools or loose parts remain inside the compartments.
