Locate the main electrical panel behind the glove compartment on the passenger side. It contains all circuit controls for lighting, ignition, and auxiliary systems. Accessing this panel requires removing two screws and gently pulling the cover outward. Each slot is labeled with the corresponding amperage and component function, allowing precise identification of blown or weak links in the system.
Check each circuit using a digital multimeter set to continuity mode. Measure the voltage across terminals to verify active connections. Circuits controlling the radio and HVAC typically use 15-20 amp connectors, while critical engine systems are protected by 25-30 amp modules. Keep a spare set of connectors rated for the exact amperage to replace any faulty units safely.
Follow proper replacement procedures by turning off the ignition and disconnecting the battery negative terminal before removing any component. Insert the new unit in the exact orientation, ensuring secure fit and contact. After installation, test each system sequentially to confirm restoration of power to all monitored devices without tripping other circuits.
Regular inspection of the panel every 6-12 months prevents unexpected electrical failures. Clean terminals with a non-corrosive contact cleaner and check for discoloration or heat damage, which signals overcurrent conditions. Maintaining the panel in good condition ensures reliability of all connected components for safe operation of the vehicle.
Location of the Electrical Panel
Access the main power control unit by opening the passenger-side glove compartment. Remove the two retaining screws at the bottom and gently pull the compartment outward. The panel sits directly behind this space and contains all low and high amperage modules for vehicle circuits.
Under the hood, there is a secondary relay and protection module on the driver’s side near the battery. This section handles high-demand systems such as the cooling fan, starter, and ignition circuits. Secure latches hold the cover in place and must be pressed simultaneously to release it safely.
For vehicles with auxiliary towing packages or aftermarket lighting, additional miniature modules are mounted along the frame rail under the dash. Each is labeled with its amperage rating and circuit function, allowing for quick identification without removing multiple connectors.
Inspect connections visually before operating the vehicle. Look for discoloration, loose terminals, or melted insulation, which indicate previous overloads. Keeping the access points clean and firmly seated prevents intermittent electrical faults and maintains consistent performance of all onboard electronics.
Circuit Identification and Ratings
Check each module’s rating printed on the top of the housing. Low-power circuits such as interior lighting and radio typically use 10-15 amp units, while engine control and ignition systems rely on 20-30 amp modules. Accurate identification prevents overloading and ensures proper operation of every connected component.

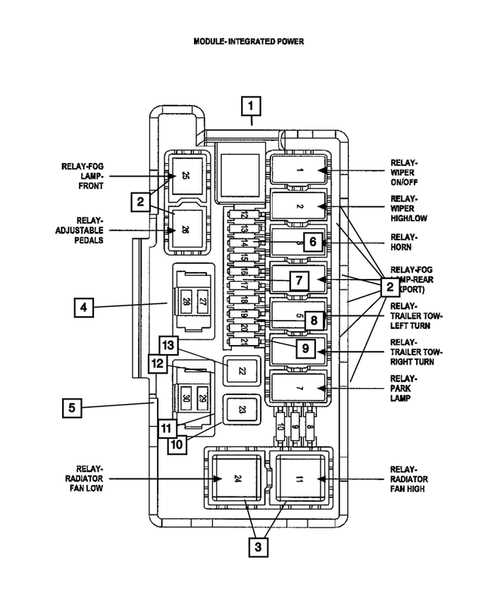

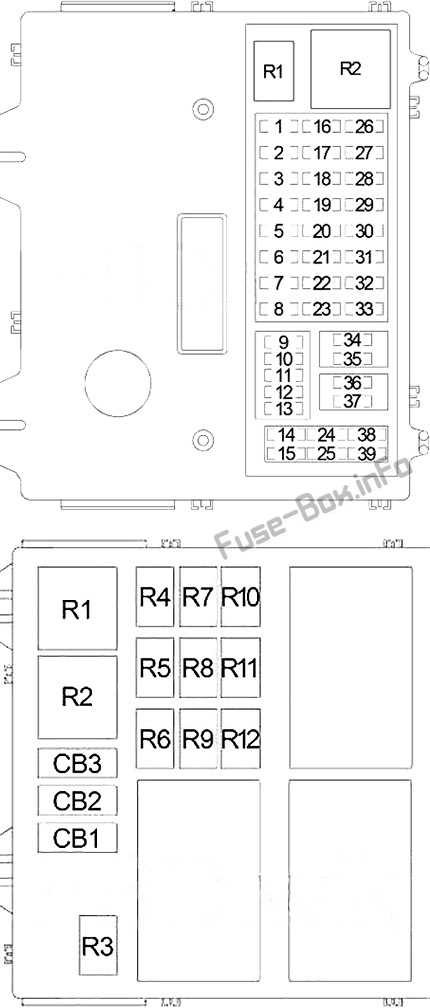

Use the label inside the cover to match each slot with its assigned circuit. The legend lists the amperage, component name, and location reference. Modules controlling accessories like power seats, mirrors, and sunroof are usually grouped together and clearly numbered for quick replacement.
Test suspect circuits with a digital multimeter or continuity tester before replacing any component. Insert a new module only if the measurement confirms an open or faulty link. This method minimizes unnecessary replacements and keeps all electrical systems functioning without interruptions.
Step-by-Step Guide to Replacing and Checking Modules
Disconnect the battery negative terminal before touching any electrical control units to prevent short circuits. Use a 10mm wrench and secure the terminal away from the post to avoid accidental contact.
Locate the access panel under the glove compartment. Remove the two screws at the bottom and pull the cover outward. Check that all modules are clearly visible and labels are readable for correct identification.
Inspect each unit visually for discoloration, melted connectors, or broken filaments. Modules showing any signs of overheating should be replaced immediately to prevent further damage to connected circuits.
Use a digital multimeter set to continuity mode to test each circuit. Touch the probes to both ends of the module; a continuous beep confirms functionality. Open circuits indicate the unit must be replaced.
Remove the defective module by gently pulling it straight out of its slot. Avoid twisting or forcing it, as this can damage the terminals and surrounding connectors.
Insert a replacement module with the same amperage rating. Ensure the orientation matches the slot and that the module is fully seated. Lightly press to verify it is secure but avoid excessive force.
Reconnect the battery negative terminal and start the vehicle. Test all systems associated with the replaced unit, including lights, ignition, and auxiliary electronics, to confirm proper operation.
- Keep spare units of common amperages (10, 15, 20, 25, 30 amp) in the vehicle for emergencies.
- Perform visual inspections every 6 months to catch potential issues early.
- Replace modules only with the exact rating to maintain circuit protection.
