Check the owner manual layout and panel cover legend first to identify each circuit position before removing any protective element. This pickup uses multiple power distribution blocks, including one under the hood and another inside the cabin, each assigned to specific systems such as lighting, ignition, and electronic modules.
Match amperage ratings with the correct slot to avoid damaging wiring or connected components. Typical values include 10A for control modules and sensors, 15A for lighting circuits, and 20A to 30A for motors like wipers or power windows. Always confirm the rating printed on the top of each insert before replacement.
Use a multimeter to test voltage across both terminals while the related system is active. If current appears only on one side, the internal link is broken. If no power is present, inspect relays, switches, and upstream wiring connected to that position for faults.
2006 Lincoln Mark LT Fuse Diagram with Panel Locations and Circuit Details

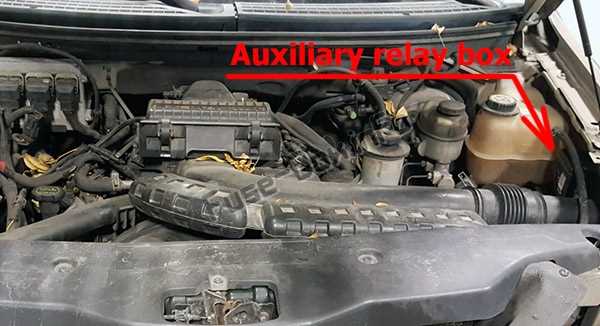

Inspect both the engine bay and interior power distribution units to locate all protected circuits, as this truck splits electrical loads between a high current module under the hood and a cabin-mounted block near the driver side kick panel.
The underhood unit handles heavy loads such as cooling fans, ABS, and charging system links, while the interior section controls lighting, infotainment, and accessory lines. Each position is numbered and paired with a printed legend on the cover, allowing quick identification of the correct circuit without removing multiple components.
Use amperage ratings and slot numbering together to verify the correct connection point before replacement. High current positions often range from 30A to 50A for motors and control modules, while smaller circuits range from 10A to 20A for switches, sensors, and interior features.
Activate the related system, then probe both контакты with a test light or multimeter. A reading on one side only indicates a broken link, while no voltage suggests upstream issues such as a relay fault or wiring break.
Keep the cover diagram clean and readable, as faded labels can lead to incorrect placement and damage to connected systems.
Where to find fuse panels in a 2006 Lincoln Mark LT and how to open them safely
Check under the hood near the battery first where the main power distribution unit is mounted inside a sealed plastic housing, then locate the interior unit on the driver side near the kick panel or lower dash area for cabin-related circuits.
Open each unit carefully following these steps:
- Disconnect the negative battery terminal before access
- Release locking tabs on the cover without forcing them
- Lift the lid straight up to avoid breaking hinges
- Use a flashlight to view slot numbering and labels clearly
- Keep the cover nearby to reference circuit assignments
Avoid using metal tools near exposed contacts to prevent short circuits.
