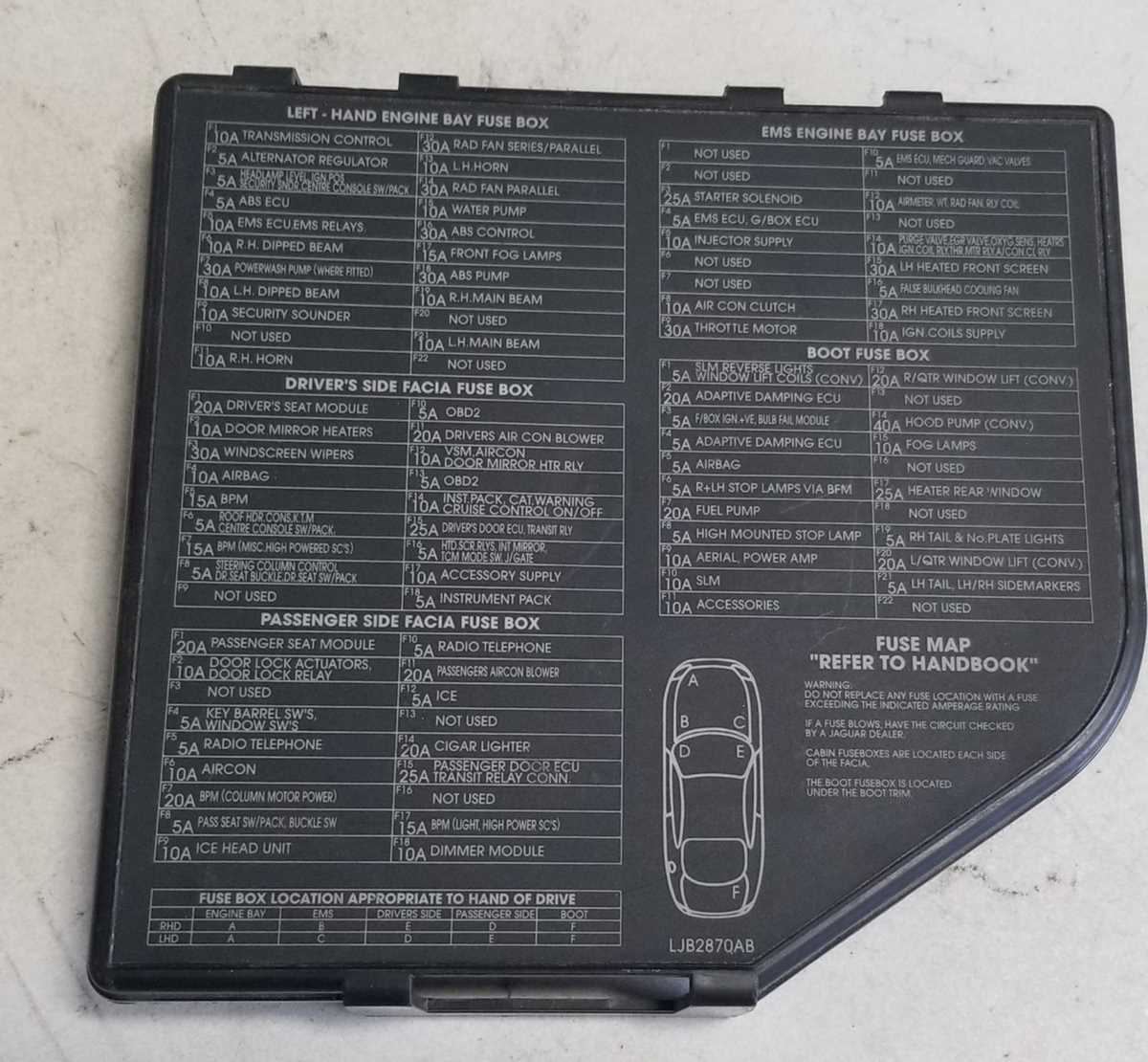

Inspect the right-side trunk compartment and driver-side dashboard panel first, as primary electrical distribution units are split between these locations. Remove the covers to access the printed slot maps that link each position to its assigned system.
Check amperage ratings on each protective element, typically ranging from 5A for control circuits to 30A or higher for motors and seat adjustments, and match them exactly during replacement to prevent wiring damage.
Use a multimeter on exposed contact points to verify continuity without removing components, which helps detect internal breaks that are not visible through the casing.

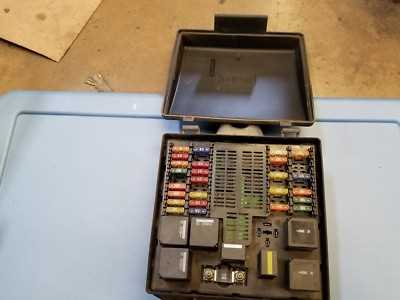

The engine compartment distribution center contains larger cartridge-style links and relays for systems like cooling fans, ignition control, and powertrain modules. Use the labeling inside the cover to identify each relay by code and function.
2006 Jaguar XJ8 Fuse Box Diagram and Circuit Layout Guide
Check both the trunk-mounted and dashboard-side electrical panels to locate the correct circuit path, using the printed layout charts inside each cover to match slot numbers with system functions such as lighting, seat control, and infotainment.

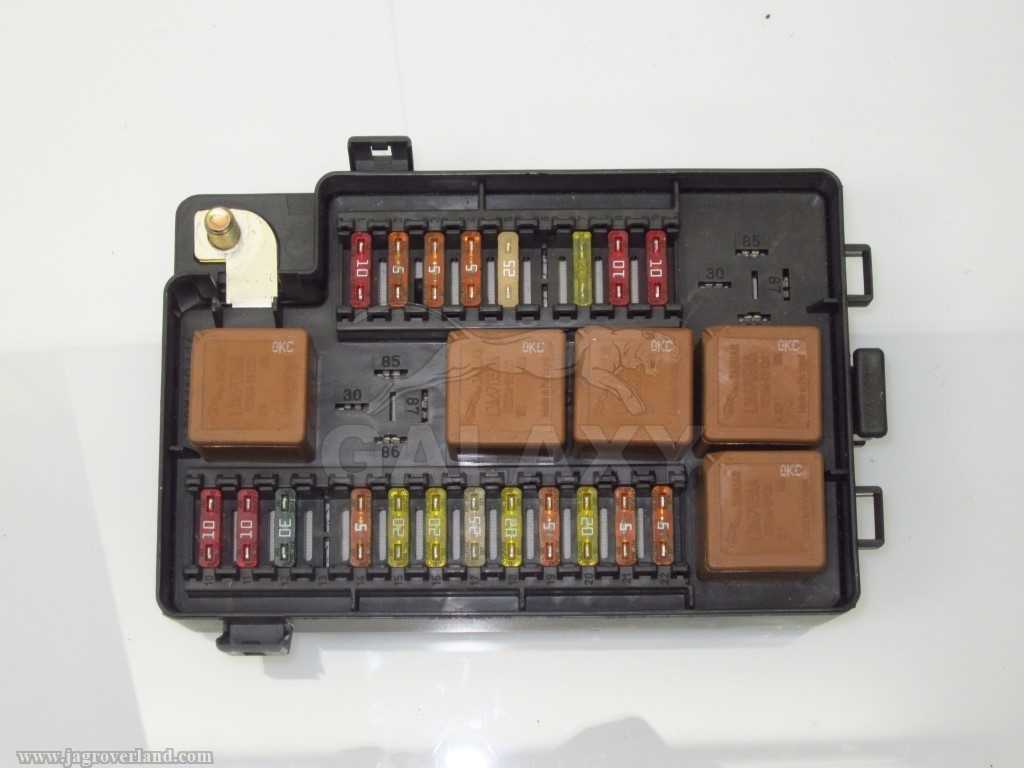

Identify each protective element by its amperage marking and circuit label, then verify continuity with a multimeter across exposed contacts before replacement; larger cartridge links in the engine compartment handle high-load systems like cooling fans and powertrain modules, while smaller blade types inside the cabin support control units and accessory circuits.
Cabin fuse box location and detailed function of each fuse slot
Open the driver side door and remove the side dashboard cover to access the interior electrical panel; the slot map printed on the back of this cover links each position to its assigned circuit such as lighting, audio system, and seat controls.
Positions marked with labels like DOME, AUDIO, and SEAT correspond to interior lights, infotainment unit, and power seat motors, while lower-rated slots around 5A handle sensors and control modules, and mid-range values such as 10A or 15A support accessories and climate controls.
Use a multimeter on the exposed metal contacts to check continuity before removal, and match both amperage and slot position during replacement to maintain proper load distribution across dashboard systems.
