Access the internal power distribution panel under the dashboard on the driver’s side and verify the exact slot assignment using a labeled chart printed on the cover. Each position corresponds to a specific circuit, including lighting, ignition, audio system, and climate control. Matching the slot number with the correct amperage rating prevents damage to wiring and connected components.
Under the hood, a second relay and protection panel controls high-load systems such as the cooling fans, fuel pump, and starter. Check both panels when diagnosing electrical faults, as issues often originate outside the cabin. For example, a non-working radiator fan may be linked to a relay in the engine compartment rather than the interior section.
Use a multimeter to confirm continuity instead of relying solely on visual inspection. Burned elements may appear intact while failing under load. Always replace with identical amperage values; installing a higher-rated component can lead to overheating and potential harness damage. Keeping a printed layout reference in the glove compartment reduces troubleshooting time during roadside situations.
2006 Impala Fuse Box Diagram: Practical Guide to Locations and Troubleshooting
Check the interior power panel under the dashboard on the driver’s side first; it handles lighting, audio system, and cabin electronics. Remove the cover and inspect the label printed on its backside–each circuit is mapped with amperage values such as 10A for radio or 15A for accessory outlets. If a component stops working, match its function to the labeled slot, pull the element with a plastic extractor, and inspect the metal strip for breaks. Replace only with identical rating to avoid wiring damage.
The engine compartment distribution unit sits near the battery and controls higher-load systems like cooling fans, ABS, and ignition. Lift the protective lid and locate the relay cluster alongside the blade-type protectors. For example, cooling fan circuits often use 30A units, while ignition-related lines may rely on 20A. If the vehicle fails to start or overheats, swap suspected relays with identical ones from non-critical systems as a quick diagnostic method. This allows verification without specialized tools.
Common Fault Patterns
Blown elements usually indicate overload or short circuits rather than random failure. A repeatedly failing 15A slot tied to the cigarette lighter often points to damaged wiring or a faulty charger. In contrast, intermittent loss of dashboard illumination may trace back to loose seating in the panel rather than a burned component. Always press replacements firmly into place and check for corrosion or discoloration in the контакты, as heat buildup leaves visible marks.
Quick Troubleshooting Routine
Step 1: Identify the non-functioning system and locate its assigned slot via the cover legend.
Step 2: Remove and visually inspect the element; a broken internal strip confirms failure.
Step 3: Test with a multimeter if damage is unclear–continuity should read near zero resistance.
Step 4: Replace using the same amperage rating; never install a higher value.
Step 5: If failure repeats, trace wiring or connected devices rather than continuing replacement.
Accurate identification and consistent rating selection prevent electrical faults from spreading to control modules.
Exact locations of electrical panel units and safe access methods

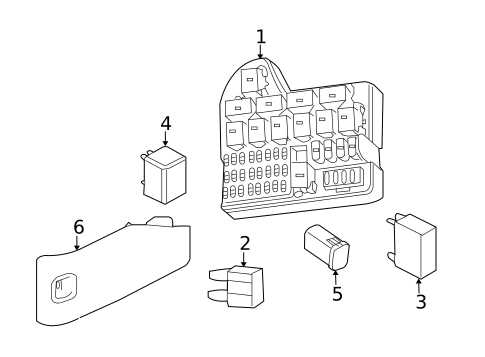

Check the passenger compartment first: the primary electrical panel sits behind a removable cover on the right side of the dashboard, visible when the front passenger door is open. Pull the edge of the trim panel gently using your fingers; no tools are required. Apply steady pressure to avoid snapping the plastic clips, which are prone to cracking with sudden force.

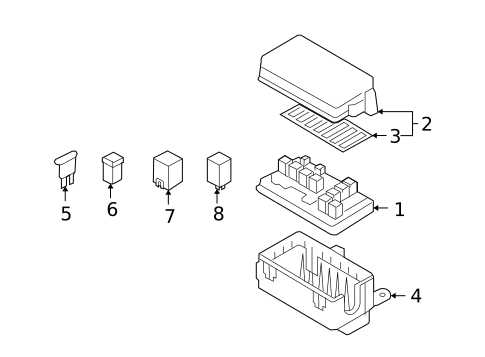

A second distribution unit is positioned under the hood, near the battery on the driver’s side. Release the hood latch from inside the cabin, secure the hood with the prop rod, then locate a rectangular plastic enclosure adjacent to the battery housing. Press the locking tabs on both sides before lifting the lid; forcing it open without releasing these tabs can damage the hinges.
Before interacting with any electrical components, switch off the ignition completely and remove the key. Disconnecting the negative battery terminal is advisable when working near high-current circuits under the hood, especially if replacing larger relays or inspecting wiring connections.
The interior panel cover typically includes a molded legend indicating circuit assignments. Tilt the cover slightly rather than pulling it straight out to avoid stressing the retaining clips. If resistance is felt, reposition your grip rather than increasing force.
Under-hood access requires attention to heat: components in this area can remain hot after engine operation. Wait several minutes after shutting down the engine before opening the enclosure. Use gloves if the vehicle was recently running to prevent burns from nearby metal parts.
When removing protective covers, place them on a flat surface away from dirt and moisture. Debris entering the electrical panel can cause poor contact or corrosion over time. Reinstall each cover by aligning tabs precisely before pressing down until a firm click is felt.
If visibility is limited, use a small flashlight instead of relying on ambient light. Avoid using metal tools near exposed terminals to reduce the risk of short circuits. Careful handling at each step prevents damage to both the mounting hardware and the electrical system.
