Check the cabin-mounted panel near the rear seat or driver side dash and verify each slot using the printed amperage labels before removing any insert. Using the correct rating prevents wiring damage and protects connected systems.
The interior unit controls low and medium load circuits such as power windows, radio, interior lamps, and climate controls. Ratings usually range between 10A and 30A, with each position clearly numbered for identification. A second power center under the hood handles higher current paths including cooling fan operation, ignition supply, and charging system links.
Test each insert with a multimeter by probing both contact points. If voltage appears on only one side, the internal strip is broken. Repeated failure indicates a short circuit, worn insulation, or a malfunctioning component drawing excess current.
Store spare inserts in common ratings such as 10A, 15A, and 20A inside the vehicle. Keeping a printed circuit reference nearby allows quick identification of problem areas during faults like non working accessories, lighting issues, or starting problems.
2005 Trailblazer Fuse Box Diagram Guide
Use the panel cover legend to match each slot with its circuit before removal, ensuring correct identification of systems like headlights, HVAC blower, or power outlets.
The interior distribution unit, located near the rear seat or dash area, contains protection for medium and low current circuits. Typical assignments include:
- 10A for interior lighting and control modules
- 15A for wipers and signal indicators
- 20A–30A for power windows and accessory sockets
Under the hood, the main power center supports higher load components and includes larger rated inserts and relays. These circuits handle continuous or heavy draw systems.
- Cooling fan motor supply
- Ignition and starter feed
- Charging system connections
Always replace a damaged insert with the same amperage rating. A higher value allows excess current that can overheat wiring, while a lower value may fail during normal operation.
Check continuity using a multimeter by probing both exposed terminals on top of the insert. A functioning unit shows equal voltage on both sides, while a failed one shows imbalance.
Fault Isolation Steps
- Identify the malfunctioning system such as radio or brake lights
- Locate the corresponding slot using the legend
- Inspect the metal strip for visible breaks
- Test voltage supply and ground path
Maintenance Tips
Keep spare inserts in common ratings inside the vehicle. Clean contacts if oxidation appears and secure wiring near mounting points to prevent vibration-related damage and repeated circuit failures.
Fuse Box Location in 2005 Trailblazer Under Dash and Engine Compartment
Access the interior power panel by opening the rear seat side cover or lower dash trim, depending on configuration, where the main cabin distribution unit is mounted behind a plastic cover with labeled slots.
This interior unit is positioned for quick reach and contains circuits for lighting, audio system, climate controls, and accessory outlets. Use a flashlight to read slot markings clearly, as labels can fade over time. Remove the cover carefully to avoid damaging retaining clips.

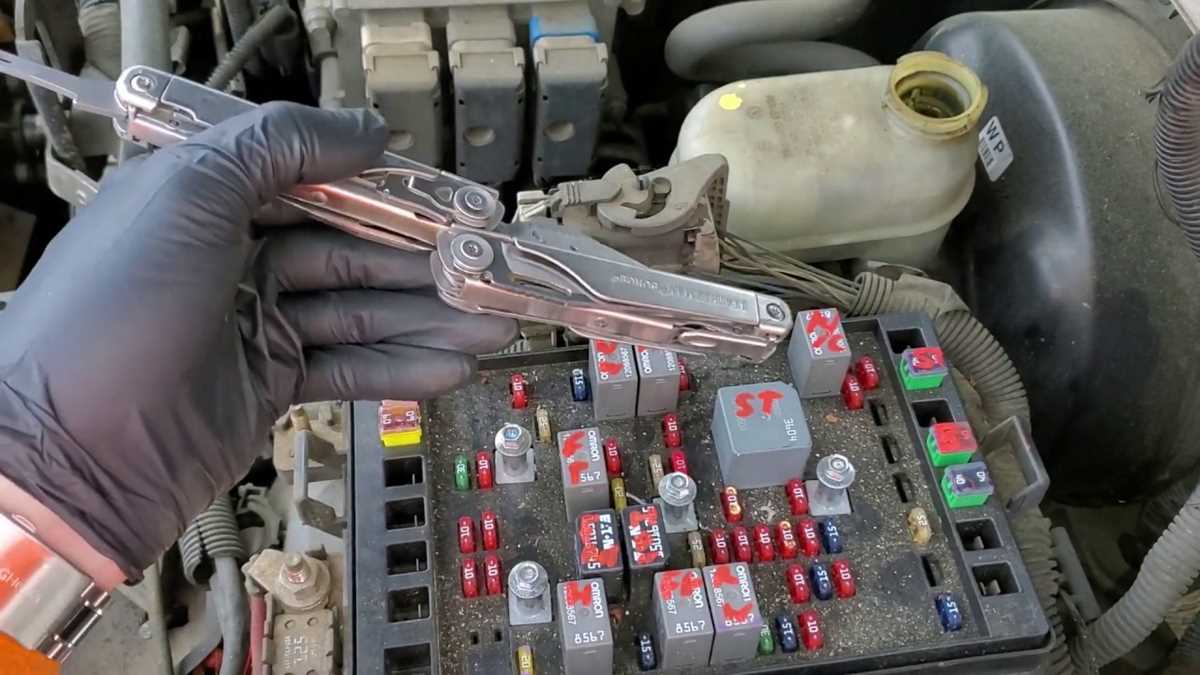

Locate the under-hood power center next to the battery on the driver side, enclosed in a sealed housing with snap clips. This unit manages high current lines such as cooling fan, ignition feed, and charging connections. Keep the cover secured after inspection to prevent moisture and debris from affecting контакты.
