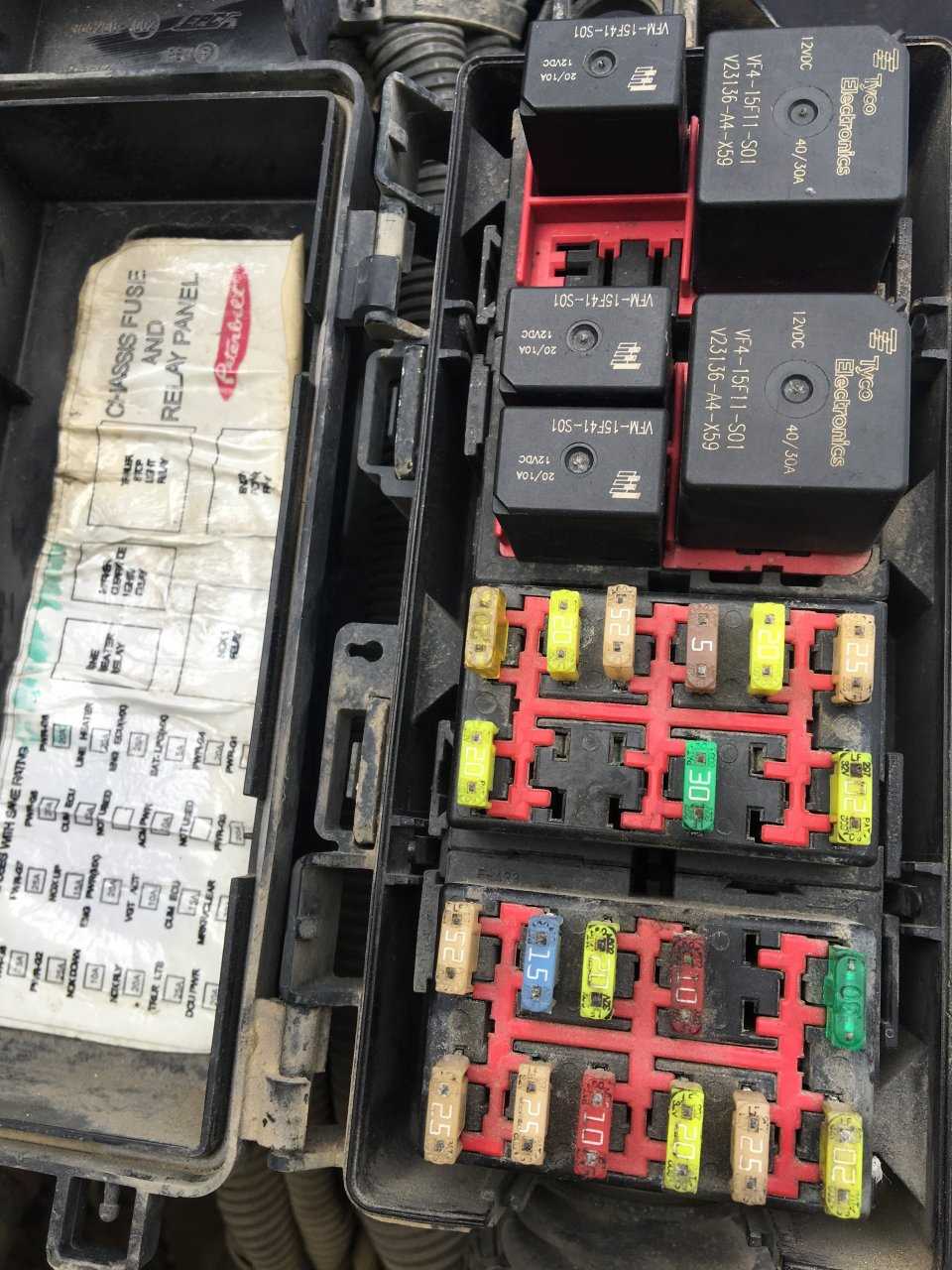

Locate the correct circuit map by matching VIN and cab configuration, then verify each relay and protection element using the manufacturer’s legend printed inside the cover. Trucks of this series often have multiple distribution boxes: one beneath the dashboard, another under the hood, and sometimes an auxiliary block behind the sleeper trim. Each unit serves distinct loads–lighting, HVAC, engine control–and mixing them leads to misdiagnosis.
Focus on amperage ratings and circuit labels stamped next to each slot. For example, lighting circuits typically use 15–20A links, while blower motors and power outlets may require 25–30A. Cross-check wire colors: brown for marker lights, green for right turn signals, yellow for left. These identifiers reduce guesswork when tracing faults such as intermittent shorts or dead accessories.
Use a test light or multimeter before replacing any protective element. A blown link often indicates downstream resistance issues or grounding faults rather than a simple overload. Inspect common wear points–hinge areas, firewall pass-throughs, and harness junctions near the steering column. Keeping a labeled sketch of each block’s layout speeds up roadside troubleshooting and prevents unnecessary downtime.

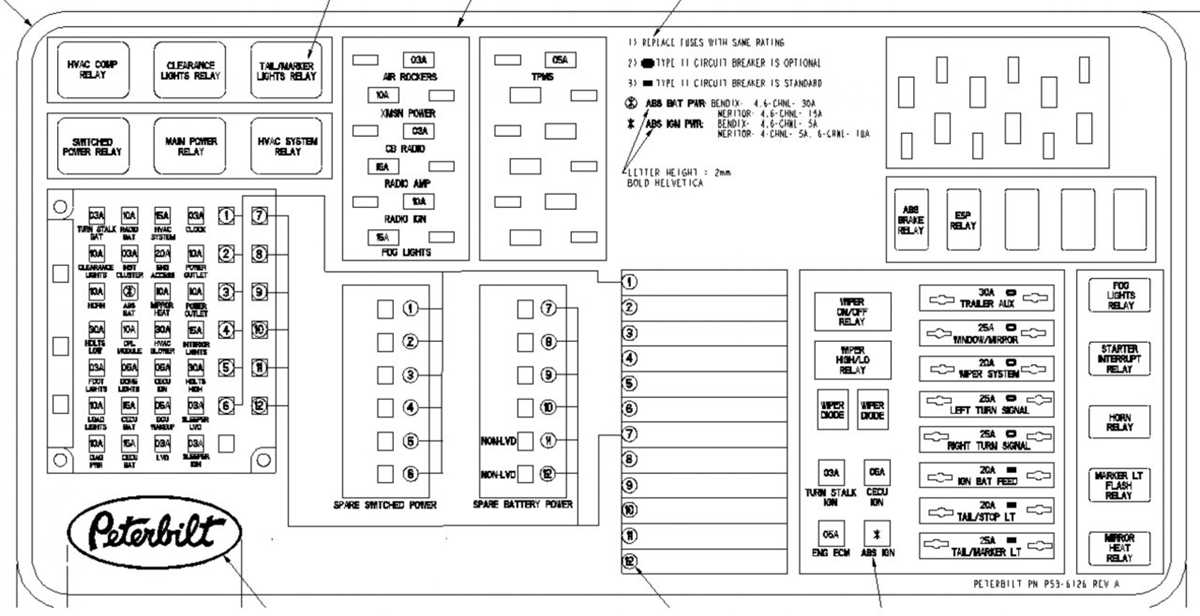

2005 Peterbilt Fuse Panel Diagram: Practical Guide for Identification and Troubleshooting
Locate the electrical distribution box under the dash on the driver’s side and match each circuit by amperage marking and wire color rather than relying on labels, which are often worn. Use a multimeter to verify power at both terminals of each blade; a reading on only one side indicates a blown element. For lighting failures, inspect slots rated 10–15A tied to marker and headlamp circuits, while HVAC and auxiliary ports usually connect to 20–30A positions. Cross-check wire colors: green/yellow commonly routes to lighting, red/white to ignition-fed accessories. Pull each suspect unit with insulated pliers and inspect for hairline breaks; replace only with identical amperage to avoid harness damage.
For intermittent faults, trace voltage drop across the distribution block by probing input bus bars and downstream terminals while toggling the related switch; fluctuations often point to loose spade contacts or oxidized clips. Clean contacts with electrical cleaner and lightly tighten terminals to restore grip. If multiple systems fail together–such as gauges and radio–inspect shared feed lines and grounding points near the firewall; a corroded ground lug can mimic multiple blown elements. Use the cab wiring schematic to map circuits to their slots, then isolate by removing one unit at a time and observing which system goes offline, narrowing the fault without dismantling the entire harness.
Locating the Electrical Block in a 2005 Peterbilt and Mapping Each Circuit by Function
Open the driver-side dash access cover and inspect the left kick area near the steering column to reach the primary electrical block; a secondary unit is often mounted behind the glove box or under the sleeper bunk depending on cab configuration. Use a flashlight and mirror to read the molded labels on the plastic housing–these markings match circuit IDs used in the service manual. Always disconnect the negative battery cable before touching any terminals, then verify power presence with a multimeter set to DC voltage rather than relying on visual inspection.
Main Circuit Groups and Their Positions
- Ignition feed: upper row, typically labeled IGN or ACC, supplies key-on systems
- Lighting circuits: mid-section, split between marker lights, headlights, and interior lamps
- HVAC system: right side cluster, tied to blower motor and control module
- Power outlets and auxiliary lines: lower section, often higher amperage slots
- Engine control and sensors: isolated group with dedicated protection to avoid interference
Trace each line by amperage rating and wire color rather than relying only on labels, as replacements may differ from factory layout. For example, a 15A slot with a red/blue wire commonly feeds dashboard electronics, while a 30A position with thicker gauge wiring routes to climate control motors. Cross-check continuity from the block to the endpoint using a probe to confirm function. If a circuit fails repeatedly, inspect downstream components for short-to-ground conditions instead of increasing the rating.
Functional Mapping Strategy
- Document each slot position with a photo before removal
- Remove one element at a time and observe which system loses power
- Label confirmed functions using adhesive tags for quick future access
- Create a personal chart grouping circuits by system rather than factory numbering
This approach produces a clear, field-tested map tailored to the truck’s actual wiring state, especially useful after modifications like added radios, inverters, or auxiliary lighting where factory references no longer match real-world configuration.
