Access the electrical control panel near the engine compartment and compare each slot with a verified circuit layout to avoid misidentification. Check amperage ratings printed on each element and cross-reference them with the vehicle’s service manual to prevent overload or incorrect replacement. The cabin-side panel, typically positioned near the driver’s lower dash, contains additional relays tied to lighting, HVAC, and accessory systems.
Use a continuity tester or multimeter to confirm whether a component has failed instead of relying on visual inspection alone. Many protective elements appear intact while internally broken. Pay attention to grouped circuits–ignition, fuel delivery, and cooling fans are often clustered–so tracing faults becomes faster and more accurate.
For precise orientation, align the panel by identifying corner markers or numbering sequences stamped into the plastic housing. Do not swap positions between identical-looking relays without labeling them first; some share shape but control entirely different systems. Keep a printed or saved circuit scheme nearby during diagnostics to reduce guesswork and avoid cascading electrical issues.
Sedan Electrical Panel Layout: Practical Identification and Usage Guide
Check the cabin power panel under the dashboard on the driver’s side first; it contains the most frequently accessed circuits such as lighting, radio, and interior accessories. The cover usually includes a printed scheme–match each slot number with its function before removing anything to avoid disconnecting unrelated systems.
Under the hood, locate the secondary distribution unit near the battery. This section manages high-load components like the cooling fan, ABS module, and ignition system. Use a plastic puller tool stored inside the lid to extract elements safely and prevent damage to terminals.
To identify a failed link quickly, inspect the metal strip inside each transparent casing. A broken or burnt strip indicates failure. Replace only with identical amperage ratings:
- 10A for small electronics and control modules
- 15A–20A for outlets and auxiliary systems
- 30A+ for motors and high-current devices
Installing a higher rating risks wiring damage.
Common issues include non-working power windows, radio shutdown, or dashboard warning lights. These often trace back to specific slots:
- Interior lighting and radio: central cabin panel
- Power windows: shared circuit in lower row
- Engine-related faults: engine bay unit
Cross-check with the lid schematic to pinpoint exact positions.
Corrosion can interfere with conductivity, especially in the engine compartment. Remove the component, inspect контакты, and clean lightly with electrical contact cleaner. Avoid using water or abrasive tools, as they can worsen connectivity.
When troubleshooting intermittent faults, test continuity with a multimeter rather than relying only on visual inspection. A component may appear intact while failing under load. Place probes on both terminals; a stable reading confirms proper flow.
Keep spare elements in the glove compartment along with a small puller. During long trips, quick replacement can restore critical functions like headlights or windshield wipers without tools. Always turn off the ignition before handling electrical components to prevent short circuits.
How to Locate Interior and Engine Bay Fuse Boxes in a 2004 Sebring
Check the panel on the driver’s side end of the dashboard first: open the door fully and look at the side trim facing the hinge area–this plastic cover snaps off with light pressure and reveals the cabin electrical panel.
Use a flat trim tool or your fingers to pry the cover gently from the notch at the bottom edge; pulling too hard from the middle may crack the panel or loosen its clips.
Inside, you will see a compact array of colored inserts with amperage markings; a small legend is usually printed on the inner side of the cover, listing circuits such as radio, interior lighting, and power outlets.

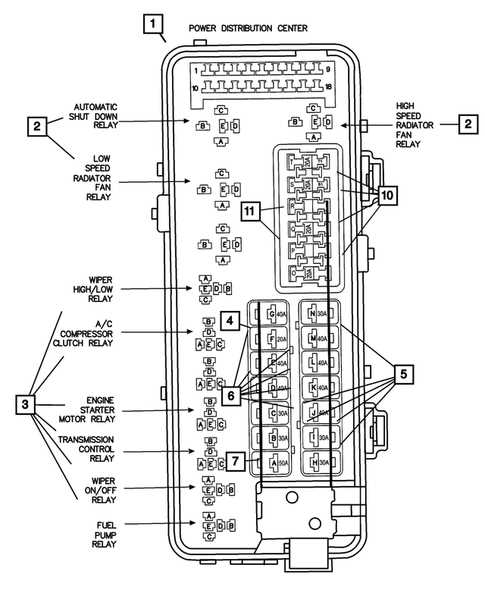

The under-hood power distribution center is positioned near the battery on the left side of the engine compartment; lift the hood, secure it with the prop rod, and locate a rectangular black casing with a tight-sealing lid.
Release the latches on both sides of this casing; press inward while lifting upward to avoid breaking the plastic tabs, which become brittle with age and heat exposure.
Under the lid, a molded guide identifies each relay and high-amperage insert; these control systems like cooling fans, ignition, and ABS, and are arranged in a grid with larger components toward the center.
If visibility is poor, use a flashlight and clean off dust or oil residue before reading labels; markings can fade, so photographing the layout before removing any component helps prevent confusion during reassembly.
After inspection or replacement, reseat each element firmly, align the cover correctly, and press until both latches click into place; incomplete sealing in the engine compartment can allow moisture inside and lead to corrosion.
