To locate and access the electrical components on the left side of your vehicle, you must first locate the main fuse panel. This panel is generally situated beneath the dashboard, close to the driver’s seat area. Make sure the ignition is off before proceeding with any checks or replacements to avoid any electrical damage or injury.
Once you’ve located the panel, identifying the specific fuses can be a challenge without a proper guide. Use the label on the panel or refer to the vehicle’s manual to understand the function of each fuse. This is crucial when you need to troubleshoot electrical problems like malfunctioning lights or non-operational accessories.
If you find a fuse that appears burnt out or damaged, replace it by gently pulling the faulty fuse out and inserting a new one of the same rating. Avoid using a fuse with a higher or lower rating, as this can lead to further issues or even cause damage to your electrical system.
Driver Side Fuse Panel Overview
The primary electrical panel for components on the left side of the cabin is located under the dashboard near the footwell. It is typically accessible by removing a small cover, which may require a screwdriver or gentle prying. Ensure the vehicle is turned off before attempting to open the panel to avoid any electrical hazards.
Within the panel, each fuse is labeled to indicate which system it controls, such as lighting, windshield wipers, or power windows. This labeling is crucial for quick identification of any problematic circuits. Take note of the labeling on the panel itself or consult the vehicle manual for detailed descriptions of each fuse’s role.
How to Identify Faulty Fuses
To check if a fuse has blown, visually inspect the metal strip inside each one. A broken or burnt strip indicates that the fuse needs replacing. Alternatively, use a multimeter to test continuity across the fuse terminals. If the reading shows no continuity, the fuse is faulty.
Fuse Rating and Replacement
When replacing a damaged fuse, make sure the new one matches the same amperage rating. Fuses with higher amperage can cause damage to the wiring, while fuses with lower amperage may not protect the system properly. The amperage rating is usually printed on the side of the fuse and can also be found in the manual.
- Headlights: Typically uses 15A fuses.
- Windshield Wipers: Commonly uses 20A fuses.
- Power Windows: Often requires a 30A fuse.
After replacing the damaged fuse, test the affected electrical components to ensure they are functioning properly. If the new fuse blows immediately after installation, there may be an underlying issue with the electrical system, requiring further inspection or professional assistance.
In some cases, corrosion or dirt buildup around the fuse terminals can cause poor contact. Clean the terminals with a cloth or a soft brush before installing a new fuse to ensure a secure connection. Regular maintenance of the fuse panel is recommended to keep the electrical system functioning reliably.
Identifying the Driver Side Fuse Panel Location

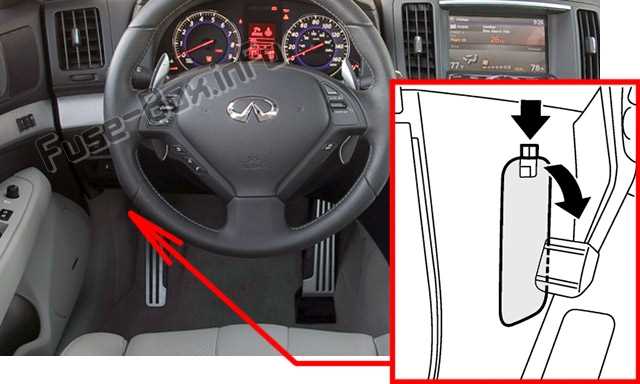

To locate the electrical panel on the left side of the vehicle, first remove the cover beneath the dashboard. It is positioned near the footwell area, just to the left of the steering column. You may need to gently pry off the plastic cover to access the panel. It is a compact, rectangular shape and will often be marked with symbols or labels indicating its contents.
The panel is typically secured with clips or screws, depending on the model. Once the cover is removed, the various components of the electrical system, such as lights, windows, and other accessories, are organized into a clear grid. Each component is protected by individual fuses, which are arranged to make inspection and replacement easier.
Checking the Cover for Labels

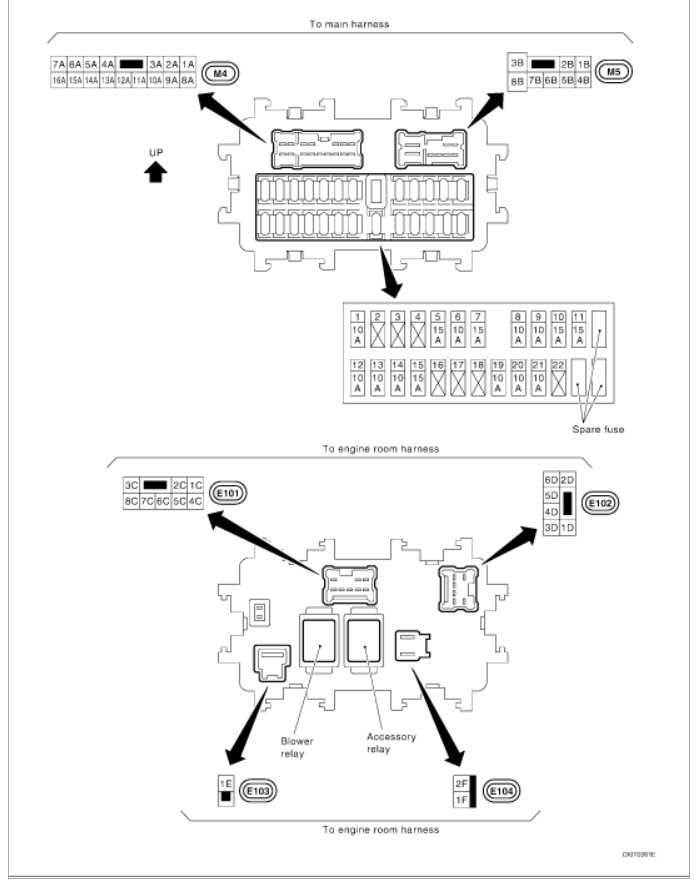

After removing the cover, inspect it for labeling that provides information about which fuse controls which component. This labeling often appears on the inside of the panel cover itself or on a diagram within the vehicle’s manual. Some models include a color-coded key, making it simpler to identify the correct fuse based on its amperage or function.
Alternative Access Points
If you’re unable to locate the panel under the dashboard, check the vehicle’s manual for alternative locations. In rare cases, some systems may have additional panels located on the driver’s side near the door or under the steering column. Ensure all other potential covers have been checked before proceeding to troubleshooting any electrical issues.
