Check the panel cover label and match each slot number before removing any protective insert, since this truck uses separate electrical centers for engine systems and interior circuits.
The engine compartment unit contains high-current elements rated 30A to 80A, supplying power to cooling fan, ABS module, and ignition-related components. Inside the cabin, the secondary panel includes smaller blade-type inserts rated 5A to 25A, linked to lighting, radio, power windows, and dashboard systems.
Use a multimeter set to continuity mode to confirm whether a link is intact. Hairline breaks inside the metal strip may not be visible, leading to incorrect diagnosis if only visual inspection is used.
Relays positioned рядом with these panels control switching for starter motor, fuel pump, and air conditioning system. Faulty switching components can cause intermittent starting issues or loss of power to accessories, often mistaken for wiring faults.

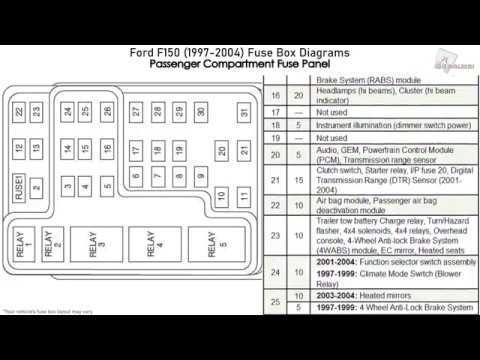

2004 Ford F150 FX4 fuse box diagram with full layout and relay details
Match each slot number on the panel cover with its assigned circuit before removing any protective insert, since this truck uses separate layouts for engine and interior systems.
The engine compartment electrical center contains high-current elements rated 30A to 80A, supplying power to cooling fan, ABS module, and ignition-related circuits. The interior panel uses blade-style inserts rated 5A to 25A, connected to lighting, radio, power windows, and dashboard controls.
Use the following checks to confirm proper operation:
- Test continuity across each insert with a multimeter
- Verify voltage on both terminals under load
- Inspect contacts for heat marks or oxidation
- Ensure correct amperage is installed in each slot
Relays located рядом with these panels control switching for starter motor, fuel pump, and climate system; a faulty unit may click without passing current, causing intermittent faults or complete circuit failure.
Exact fuse box locations in 2004 Ford F150 FX4 under hood and passenger cabin

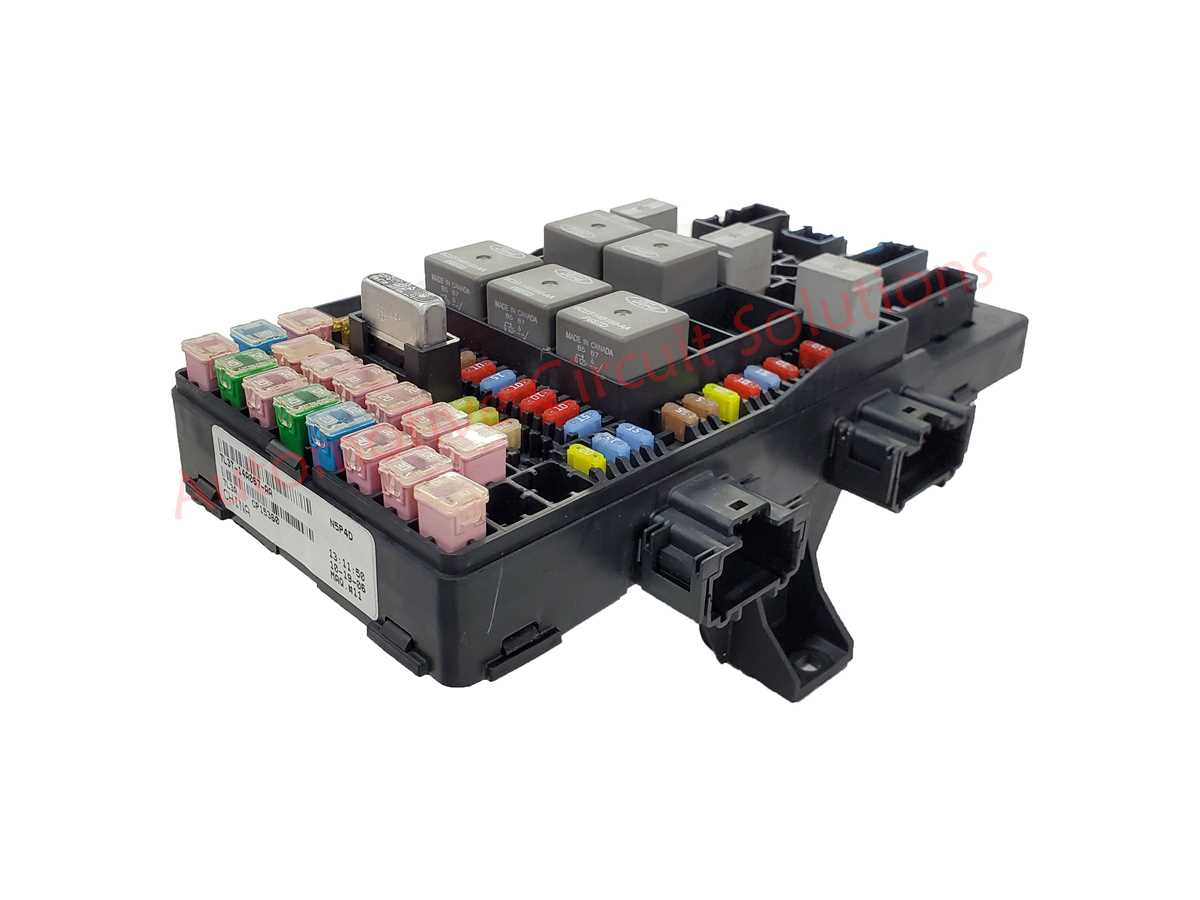

Open the hood and locate the main power distribution center on the driver side near the battery, enclosed in a black plastic housing with a removable cover secured by side clips. This unit handles high-current circuits such as cooling fan, ABS, and ignition supply, and is positioned close to the battery to reduce voltage drop.
Inside the cabin, check the passenger side kick panel area behind a trim cover near the footwell. Pull the panel outward carefully to access the interior electrical block, which contains lower-amperage inserts for lighting, audio, and control modules; use a flashlight to read slot markings clearly due to the recessed position.
