Locate the main control enclosure under the hood near the driver’s side for direct access. Disconnect the battery negative terminal before inspecting any relays or protective holders to avoid shorts or shocks.
Check each circuit slot for discoloration, melted plastic, or corrosion, which indicate overheating or poor connections. Use a multimeter or test light to verify continuity before replacing any faulty components.
Label connectors and terminals during maintenance to simplify future troubleshooting. Keep a reference chart with amperage ratings for all slots to prevent overloading and ensure proper system function.
Select replacement components that match original voltage and size specifications. Test each circuit sequentially after installation to confirm that lights, sensors, and accessory systems operate correctly.
Electrical Panel Layout for ATV Maintenance
Access the primary control enclosure located near the driver’s side under the hood. Disconnect the battery negative terminal before handling any relays or protective slots to avoid shorts. Identify each circuit by color-coded holders and amperage markings to simplify troubleshooting and replacement.
Inspect each connector and terminal for signs of heat damage or corrosion. Use a multimeter to check continuity before swapping components, and document each connection to ensure proper reassembly and safe operation of all lighting, sensors, and accessory circuits.

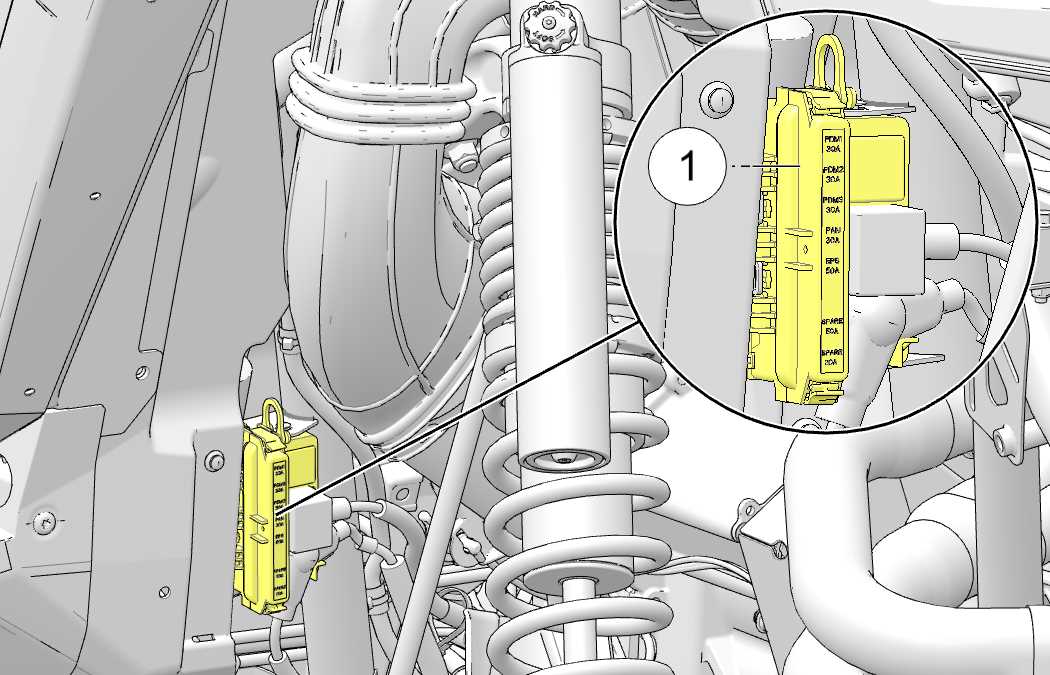

Locating the Main Electrical Module on the ATV
Access the primary power control unit by opening the hood on the driver’s side and locating a rectangular plastic enclosure. Disconnect the battery negative terminal before touching any relays or connectors to prevent electrical shorts.
Look for a cover secured with clips or screws that can be removed without excessive force. Inspect the latch mechanism carefully to avoid breaking tabs during removal.
Step-by-Step Identification
- Raise the hood fully and secure it in position.
- Approach the driver’s side fender and locate the enclosure near the wheel well.
- Identify the unit by embossed or printed circuit symbols on the cover.
- Release the cover slowly, keeping an eye on small internal clips.
Inside the enclosure, color-coded holders indicate the amperage and function of each circuit. Red holders are typically high-current circuits such as starter and cooling fans, while blue and yellow holders carry medium loads for lighting and accessories.
- Black holders usually handle low-current modules like sensors or dashboard electronics.
- Document the position and amperage of each slot before removing any components for maintenance.
- Check for signs of heat damage, corrosion, or discoloration for targeted troubleshooting.
After completing inspection or replacement, reattach the cover securely and reconnect the battery. Test critical systems including headlights, horn, and electronic controls to confirm proper operation before operating the ATV.
