Check the driver side interior power panel first when electrical components fail, as most lighting, dashboard, and accessory circuits are routed through this unit mounted on the side of the dashboard behind a removable cover. Use the printed label inside the cover to match each slot with its assigned circuit and amperage rating.
Inspect the engine compartment distribution center for high-load systems such as cooling fans, fuel pump, and ABS modules. This unit is typically positioned near the battery and contains larger protection links and relay switches controlling major components.
Match each slot rating exactly before replacement, commonly ranging from 10A to 40A depending on the circuit. Installing a higher-rated element can cause wiring damage, while a lower rating may lead to repeated interruptions during normal operation.
Use a multimeter to confirm continuity and voltage presence across each protective element instead of relying on visual inspection alone. Hairline breaks are not always visible, and proper testing helps locate faults quickly within the electrical system.

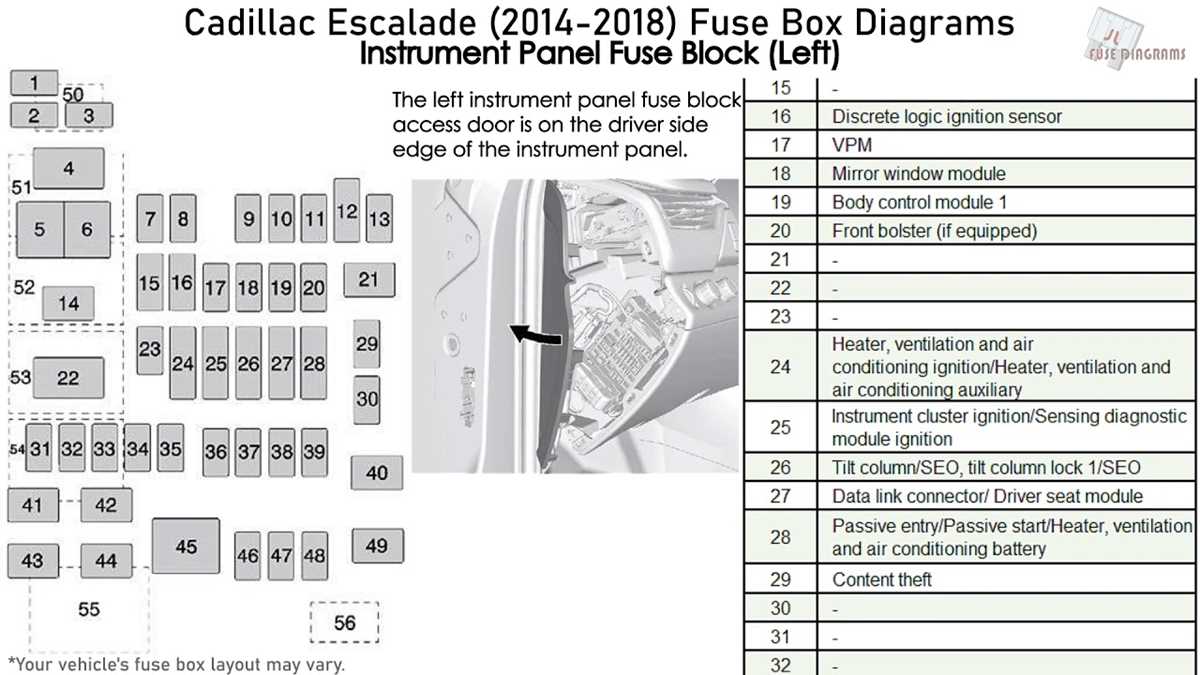

2003 Cadillac Escalade Fuse Box Diagram with Locations Relay Layout and Circuits

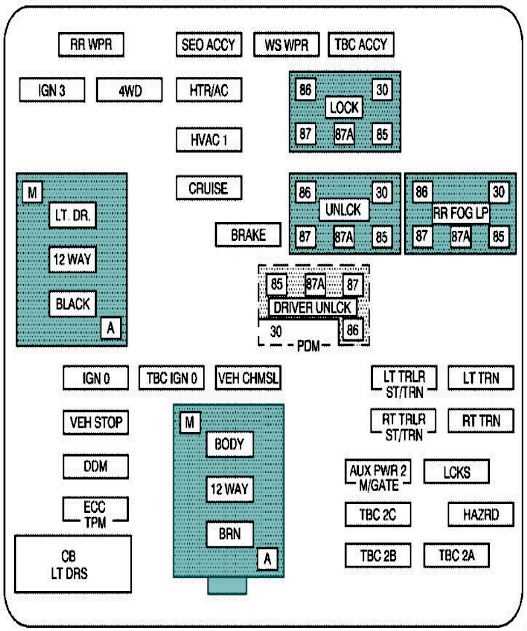

Use the interior panel chart to match each slot with its assigned circuit before replacing any blown element, as this unit controls dashboard electronics, interior lighting, power seats, and accessory outlets. Each position is labeled with amperage values such as 10A, 15A, 20A, and 30A, and incorrect replacement can lead to overheating or repeated failure.

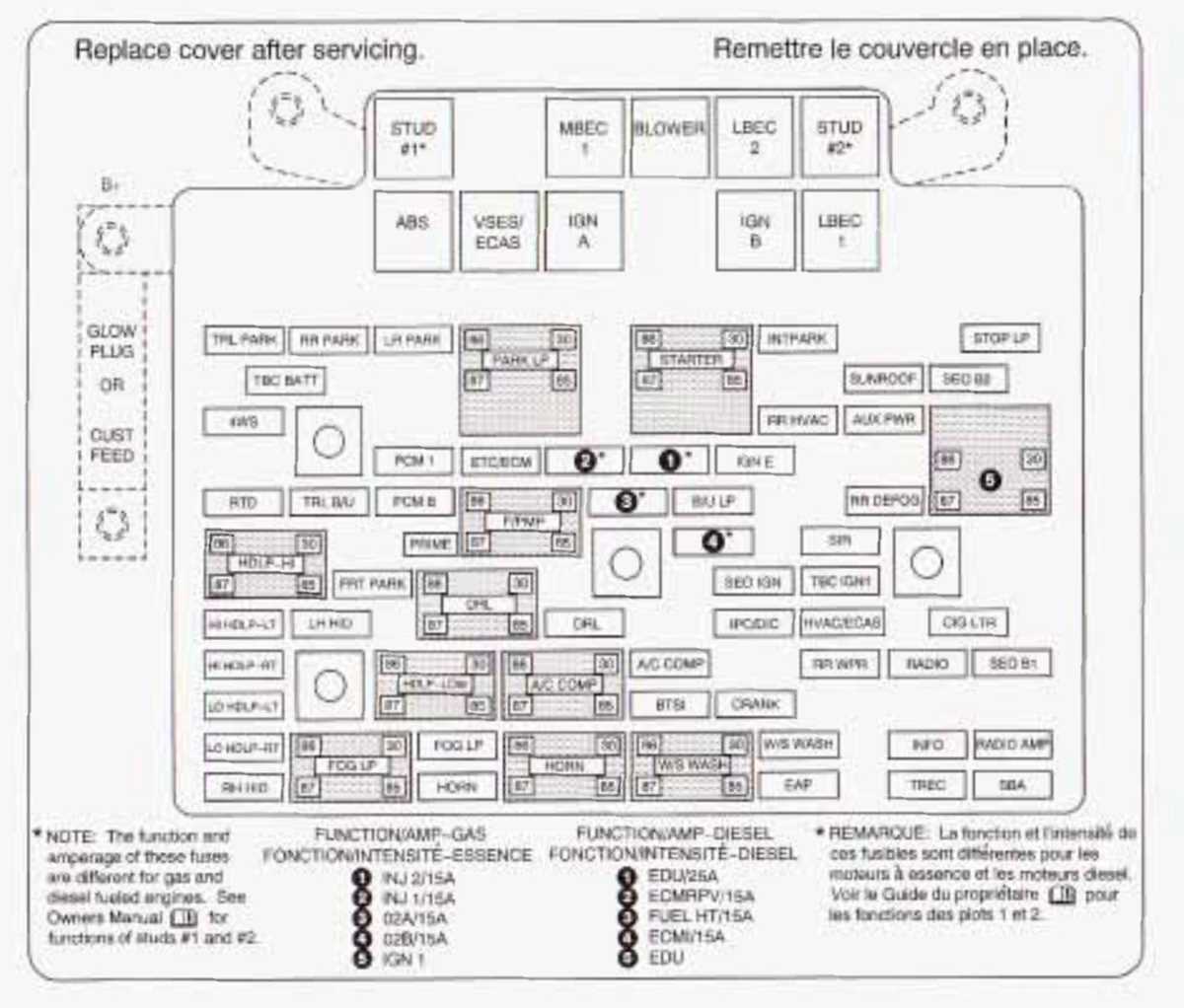

Check the engine compartment distribution center for systems requiring higher current, including cooling fans, ignition modules, and braking electronics. This unit contains both large cartridge-style links and relay switches responsible for activating major components under load.
Relays are positioned рядом with high-load circuits and act as switches controlled by low-current signals. Common relay assignments include fuel pump, starter control, and fan operation, each typically labeled on the cover for quick identification.
Trace circuit paths using the printed layout inside the cover, which shows how power flows from supply terminals through protective elements to individual systems. Grouped circuits may share a single power source, so failure in one area can affect multiple components such as lighting and instrument cluster functions.
Typical circuit grouping includes:
Interior electronics, lighting, and audio systems in the cabin panel, while engine-related systems, charging components, and cooling controls are routed through the under-hood unit.
Verify voltage on both sides of each slot using a multimeter while the circuit is active, confirming proper power delivery. This step helps distinguish between a blown element and a wiring fault further along the circuit path.
Reinstall covers securely after inspection to protect internal components from moisture, dust, and vibration, which can lead to corrosion and unstable electrical connections over time.
Where Fuse Boxes Are Located in 2003 Cadillac Escalade and How to Access Them
Open the driver side door and remove the side dash cover to reach the interior power panel, which is mounted on the left edge of the dashboard. The cover can be pulled off by hand using the molded grip without tools.

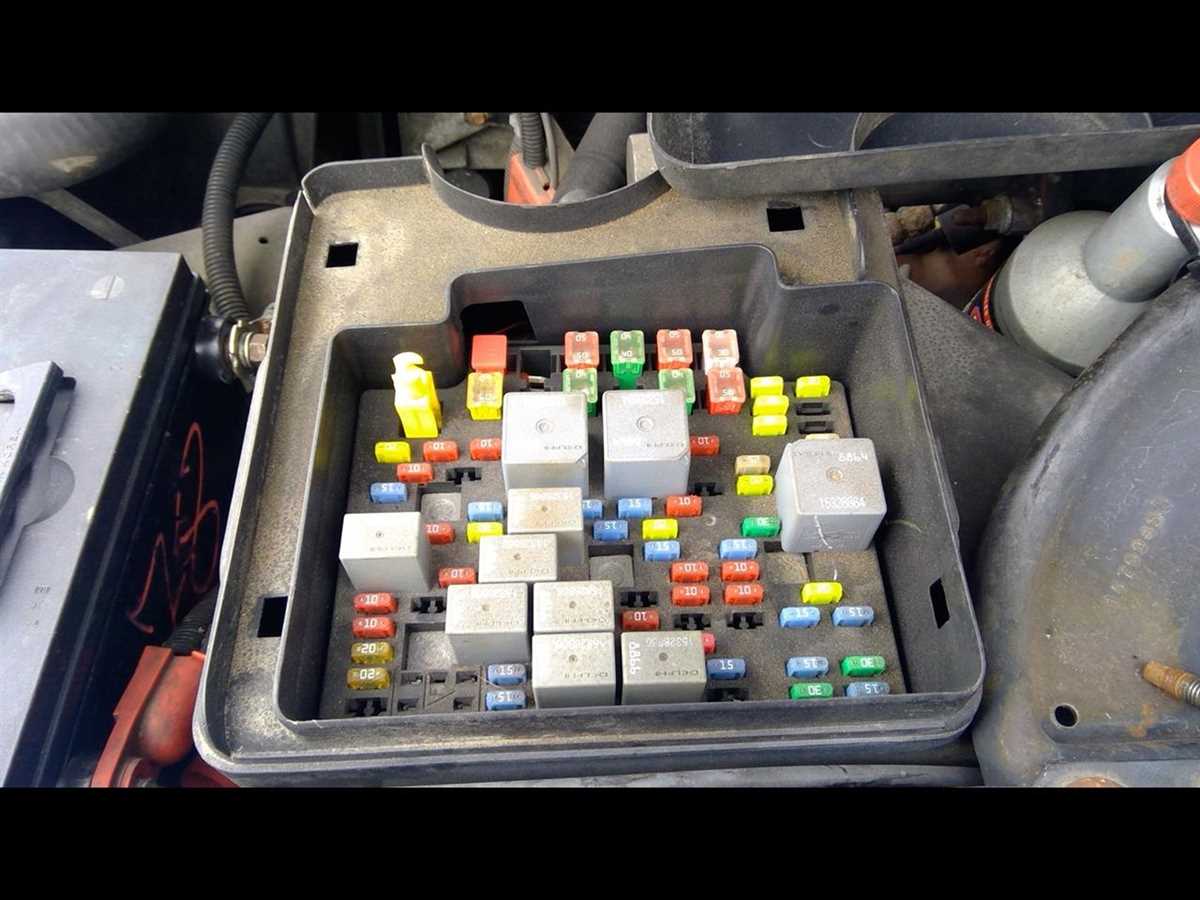

Locate the engine compartment distribution unit near the battery, typically on the driver side under the hood. This enclosure is protected by a snap-on lid with locking tabs that must be pressed inward before lifting.
Turn off the ignition and remove the key before accessing any electrical panel. Wait at least one minute to allow modules to power down and avoid voltage spikes during inspection.
Follow these steps to access the interior panel safely:
- Open the driver door fully
- Grip the edge of the side trim cover
- Pull outward evenly to release clips
- Set the cover aside to expose the panel
Use caution when opening the under-hood enclosure, as dirt and debris can accumulate around the seal. Clean the edges before lifting to prevent contamination inside the unit.
Disconnect the negative battery terminal when working near high-current circuits, especially in the engine bay where large cartridge links and relays are installed.
To access the engine compartment unit:
- Release both side latches on the lid
- Lift the cover straight upward
- Check the inside label for slot identification
- Keep the cover nearby to avoid misplacement
Secure all covers tightly after inspection, ensuring clips are fully engaged to protect internal components from moisture, vibration, and heat exposure.
