Check the vehicle manual panel map first to match each circuit slot with its assigned amperage before replacing any blown link, as mismatched ratings can damage wiring and onboard modules.
Inside the cabin, the interior distribution unit is typically mounted on the driver side, close to the dashboard edge. Remove the trim cover carefully and inspect each slot using a test light or multimeter. Look for discoloration or melted plastic, which often signals overheating caused by excessive load or poor contact.
Under the hood, the power distribution center houses high-current relays and protective links for systems like cooling fans, ignition, and fuel delivery. Always disconnect the battery before accessing this compartment. Use the lid label as a reference to identify relay positions and circuit protection elements, ensuring accurate troubleshooting.
When tracing electrical faults, focus on specific symptoms such as non-working headlights, radio failure, or power window issues. Each function corresponds to a dedicated slot, often rated between 10A and 30A. Replacing a damaged element with the same rating restores operation while maintaining circuit safety.
Keep spare inserts of common ratings like 10A, 15A, and 20A in the glove compartment. Regular inspection of both interior and engine compartment panels helps prevent unexpected failures and supports stable operation of all electrical systems.
2003 Avalanche Fuse Box Diagram Guide
Match each circuit slot with its rated amperage before replacement, using the cover label or service manual, as incorrect ratings can lead to wiring damage or repeated failure.

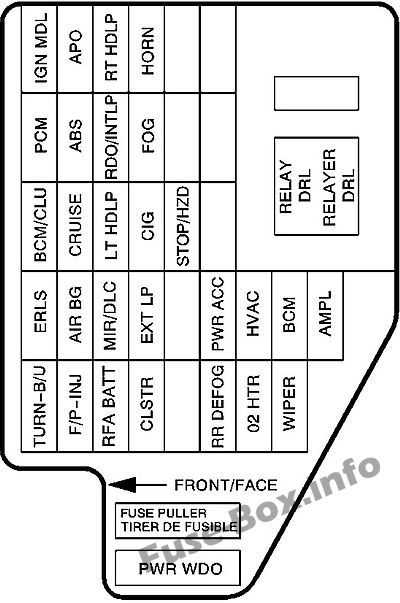

The interior power distribution panel is located on the driver side dashboard edge, accessible after removing the side trim. This unit controls cabin electronics such as radio, instrument cluster, interior lighting, and accessory outlets. Typical ratings range from 10A to 25A, with smaller slots assigned to low-load components.
Under the hood, the main electrical center contains high-current protection elements and relays for systems like cooling fans, ignition coils, and fuel pump. Large square relays and 30A–60A links are common here, supporting engine and drivetrain functions that require higher load capacity.
Identify faults by linking symptoms to specific circuits. For example, a non-working power window usually connects to a 25A slot in the cabin panel, while headlight issues often trace back to a relay and protection element in the engine compartment. Use a multimeter to confirm continuity instead of relying only on visual inspection.
Remove each protective element with a puller tool to avoid damaging contacts. Check for a broken internal strip or burn marks. If the metal strip is intact but the system still fails, inspect wiring or relays instead of replacing the component again.
Keep spare inserts rated at 10A, 15A, 20A, and 30A for quick replacement during roadside issues. Store them in a dry compartment to prevent corrosion, which can affect conductivity and lead to intermittent faults.
Regular inspection of both interior and engine-mounted panels reduces risk of sudden electrical failure and helps maintain stable operation of lighting, climate control, and engine-related systems.
Fuse Box Location in 2003 Avalanche Cabin and Engine Compartment
Access the interior panel from the driver side dashboard end by opening the door and removing the side cover; this reveals the main cabin distribution unit responsible for lighting, audio system, and accessory circuits.
Inside this area, slots are arranged in rows with labeled positions on the back of the cover. Most circuits here range between 10A and 25A, supporting low to medium load components such as power windows, climate controls, and dashboard electronics. Use a flashlight to read labels clearly, as they can be difficult to see in low light.

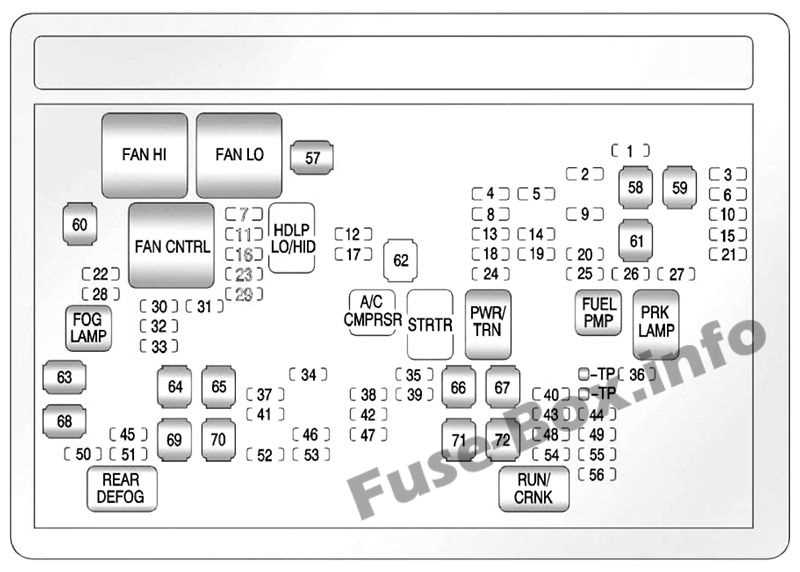

The engine compartment power center is mounted near the battery, typically on the driver side under the hood. This unit includes larger protection elements and relays handling ignition, cooling fans, ABS, and fuel delivery. Lift the plastic cover by releasing the clips to expose the internal layout.
Check both locations when diagnosing electrical faults, since some systems rely on circuits split between cabin and engine areas. Always disconnect the battery before working under the hood to prevent short circuits and protect sensitive control modules.
