Check the owner manual panel map first and match each circuit position with its amperage before touching any component. This prevents installing the wrong rating and protects wiring from overload. Use a test light or multimeter to confirm whether power reaches the slot before assuming a part has failed.
The Super Duty pickup from the early 2000s uses two main distribution areas: one under the dashboard on the driver side and another in the engine compartment near the battery. The interior section handles lighting, radio, and cabin electronics, while the under-hood unit supports high-load systems like starter relay, cooling fan, and trailer connections. Each slot is labeled with a number that corresponds to a specific circuit and amperage, typically ranging from 5A to 50A.
Burned elements can be identified by a broken metal strip or darkened plastic window. Replace only with the same rating; using a higher value can damage wiring harnesses. If a new insert fails immediately, inspect related components such as switches, relays, or wiring for short circuits instead of repeating replacement.
Keep spare inserts and a puller tool in the glove compartment. This allows quick roadside fixes for common issues like power window failure or inoperative brake lights. Clean contacts periodically to avoid corrosion that can interrupt current flow and cause intermittent faults.
2002 Ford F250 Fuse Box Diagram With Panel Locations and Fuse Assignments Guide
Locate both power distribution panels before troubleshooting any electrical issue: one sits under the dash on the driver side, and the second is mounted in the engine compartment near the battery.
The cabin-mounted unit handles low to mid-load circuits. Typical assignments include:
- 15A slot for radio and interior lighting
- 20A position for power outlets and cigarette lighter
- 10A circuit for instrument cluster and warning indicators
- 25A line for power windows and door locks
The engine compartment panel manages higher current systems and relays tied to starting and cooling functions.
- 30A–50A links for blower motor and ABS module
- 40A connection for trailer tow power supply
- 20A–30A circuits for fuel pump and ignition system
- Relay positions for starter, PCM power, and cooling fan
Match each numbered slot with the legend printed on the panel cover. If the cover is missing, refer to a service manual chart that lists cavity numbers alongside their assigned systems and amperage values.
Use a multimeter to verify voltage at both terminals of each insert. A working circuit shows battery voltage on both sides; a failed element shows power only on one side.
Replace damaged inserts with identical ratings only. Installing a higher-rated component can overheat wiring and lead to melted insulation or component failure.
For repeated failures in the same slot, inspect connected devices using this sequence:
- Disconnect the load component
- Install a new insert
- Reconnect the device and monitor for failure
Keep a printed layout chart in the glove compartment. This reduces guesswork during roadside diagnostics and allows quick identification of circuits tied to lighting, towing, and engine controls.
Where to Find Interior and Engine Bay Fuse Panels on 2002 F250

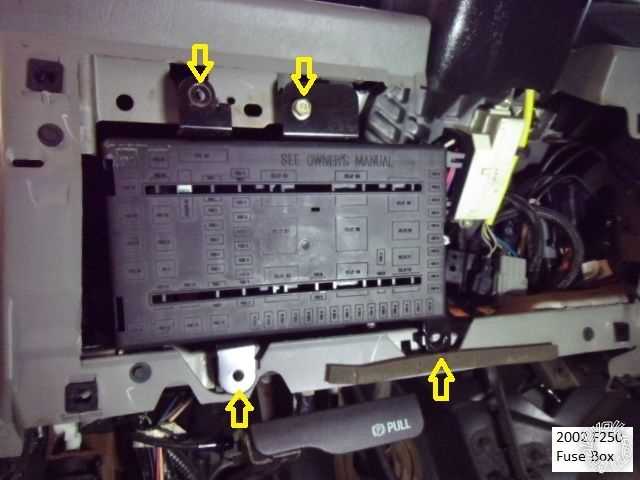

Open the driver-side door and inspect the lower dash area near the kick panel; the interior power distribution unit is mounted behind a removable plastic cover.
Pull the cover straight off to access the panel. The legend is usually printed on the backside of this cover, showing slot numbers and circuit roles such as lighting, radio, and accessory outlets.
Interior Panel Position Details
This cabin unit sits left of the steering column, slightly above the footwell. Use a flashlight to see the numbering clearly, since the panel is recessed. A small puller tool is often clipped inside the cover for removing blade-style inserts without damaging contacts.
For engine-related circuits, lift the hood and look toward the passenger-side fender near the battery. The high-current distribution center is housed in a black plastic enclosure with locking tabs.
Engine Compartment Panel Access
Release the side clips and raise the lid to expose relays and high-amperage links. This section controls systems like starter operation, cooling fan, fuel delivery, and trailer wiring. The lid underside includes a labeled map for quick identification of each position.
Ensure the ignition is off before opening either panel. Moisture or dirt inside the engine compartment unit can lead to poor contact, so reseat the lid firmly after inspection to maintain a tight seal.
