Check the front compartment power panel first–it contains the primary protection elements responsible for ignition, lighting circuits, and engine control. In this vehicle, the main distribution unit is positioned near the battery area under the hood, with additional modules located inside the cabin and in the rear section. Each protective element is assigned a specific amperage rating, typically ranging from 5A to 40A, depending on the subsystem it safeguards.
The cabin-mounted panel, usually hidden behind a trim cover on the driver’s side, handles interior electronics such as climate control, instrument cluster, and audio system. Pay attention to labeling conventions: instead of plain numbering, many slots are grouped by function, for example, lighting circuits clustered together and marked with consistent symbols. Misplacing even a single component with incorrect rating can disrupt CAN communication lines or disable auxiliary systems.
In the rear section, a smaller distribution unit supports fuel pump operation, rear lighting, and central locking mechanisms. These circuits often rely on relays paired with protective inserts, so inspecting both elements is necessary when diagnosing faults. Color coding helps identify ratings quickly: red typically indicates 10A, blue 15A, yellow 20A, and green 30A. Always cross-check with the vehicle’s specification sheet to avoid mismatches.
For troubleshooting, use a multimeter to verify continuity across suspected components rather than relying solely on visual inspection. Hairline breaks inside transparent housings are common and not always visible. Keep spare inserts of multiple ratings on hand, and document any replacements to maintain consistency across the electrical system.
2001 SLK 320 Fuse Box Diagram: Practical Guide
Check the interior electrical panel under the dashboard first: remove the cover and use the legend printed on its reverse side to match each slot with its circuit; if the legend is missing, note that positions F1–F7 typically control lighting, horn, and instrument cluster functions, while higher-numbered slots handle comfort systems such as power windows and central locking.
The engine compartment relay and protection panel sits near the battery; open the lid by releasing the side clips and inspect high-amperage links responsible for cooling fans, ABS, and ignition circuits. Use a multimeter rather than visual inspection alone–hairline breaks in metal strips are easy to miss. Replace damaged elements only with identical amperage ratings; installing a higher value risks wiring damage, especially in circuits feeding control modules.
Common layout hints for this roadster model include:
- Lower row: interior electronics (radio, interior lights, diagnostic port)
- Middle row: safety systems (airbags, traction control, brake electronics)
- Upper row: engine-related systems (fuel pump, ECU, cooling)
If a component fails intermittently, reseat the corresponding insert and clean contacts with electrical cleaner; oxidation is frequent in older vehicles. Keep a printed chart in the glove compartment with handwritten notes after each repair–factory markings are often too small to read in low light, and custom annotations speed up troubleshooting during roadside checks.

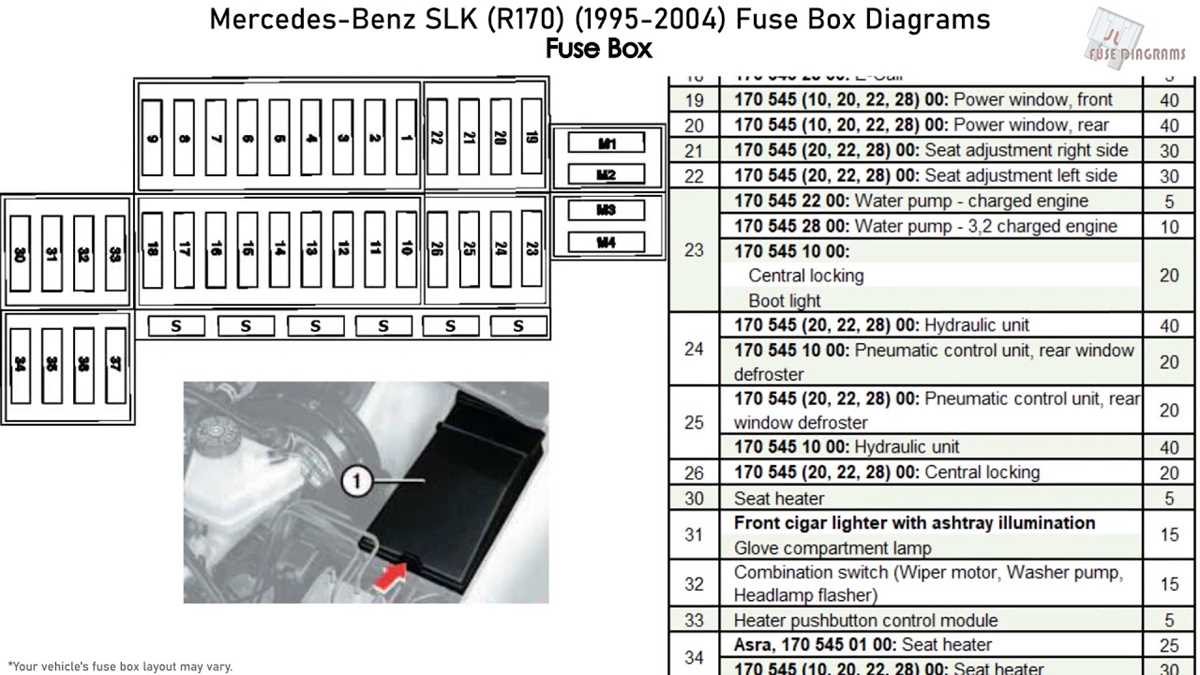

Exact Fuse Box Locations in the 2001 Mercedes-Benz SLK 320 and How to Access Them
Open the hood and go straight to the left rear corner of the engine bay near the windshield: the primary electrical panel sits under a rectangular plastic cover secured by two rotating clips. Turn the clips 90 degrees, lift the lid upward, and you’ll see the main relay and circuit protection layout. For clear visibility, remove the rubber sealing edge slightly and tilt the cover back rather than pulling it off completely to avoid misalignment during reinstallation.
Inside the cabin, access the secondary distribution unit by sliding the driver’s seat fully backward and looking at the side of the dashboard facing the door. Pry off the small trim panel using a flat plastic tool inserted into the notch at the bottom edge. Behind it sits a compact set of circuits dedicated to interior systems like lighting and climate controls. Keep the ignition off before touching anything, and use the diagram sticker on the reverse side of the trim panel for identification.
Rear Compartment Electrical Panel
The third location is in the trunk area on the right-hand side behind a carpeted lining. Pull back the trunk liner by releasing the plastic fasteners–these can be turned by hand or with a coin. Once the lining is folded aside, a vertical mounting plate becomes visible. This section typically handles rear lighting, central locking, and auxiliary systems. Work carefully in this confined space to avoid bending connectors, and secure the lining tightly afterward to prevent rattling.
Access Tips and Handling
Use needle-nose pliers stored in the onboard toolkit to remove and replace small protective elements without damaging surrounding components. Always match amperage ratings exactly; substituting higher values risks wiring damage. If corrosion is visible on contacts, clean gently with electrical contact cleaner before reinstalling parts. Close all covers firmly, ensuring seals sit flush to prevent moisture intrusion.
