Locate the correct panel and verify the slot number against the cover label before replacing any protective element, since interior and engine compartment units control different electrical systems.
The cabin-side distribution panel typically manages lighting, dashboard functions, and accessory circuits. Each position is numbered and linked to a specific function, such as radio memory, instrument cluster, or power locks. Matching the number with the printed chart avoids disconnecting the wrong system.

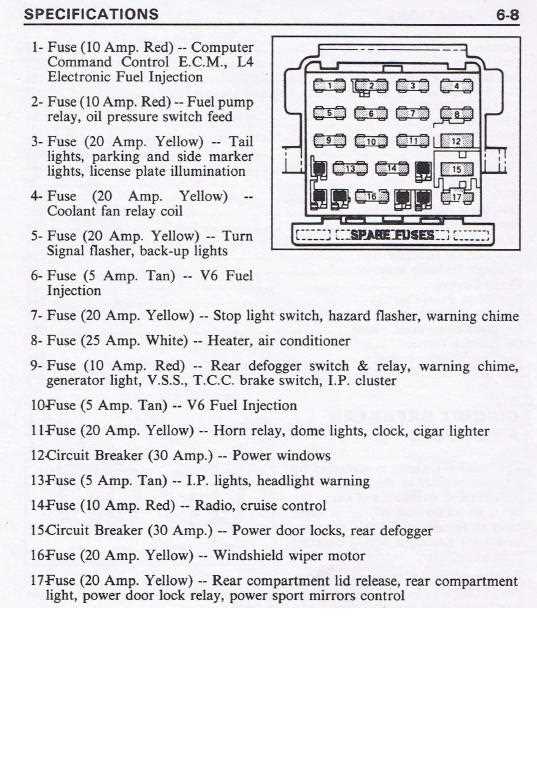

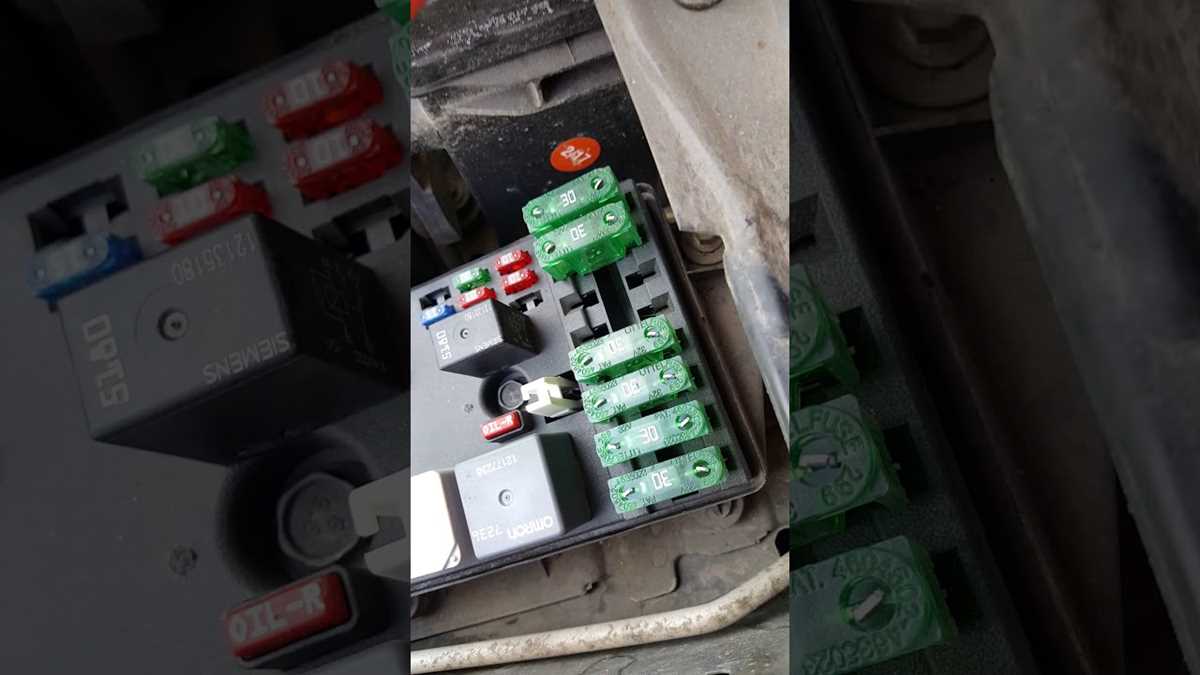

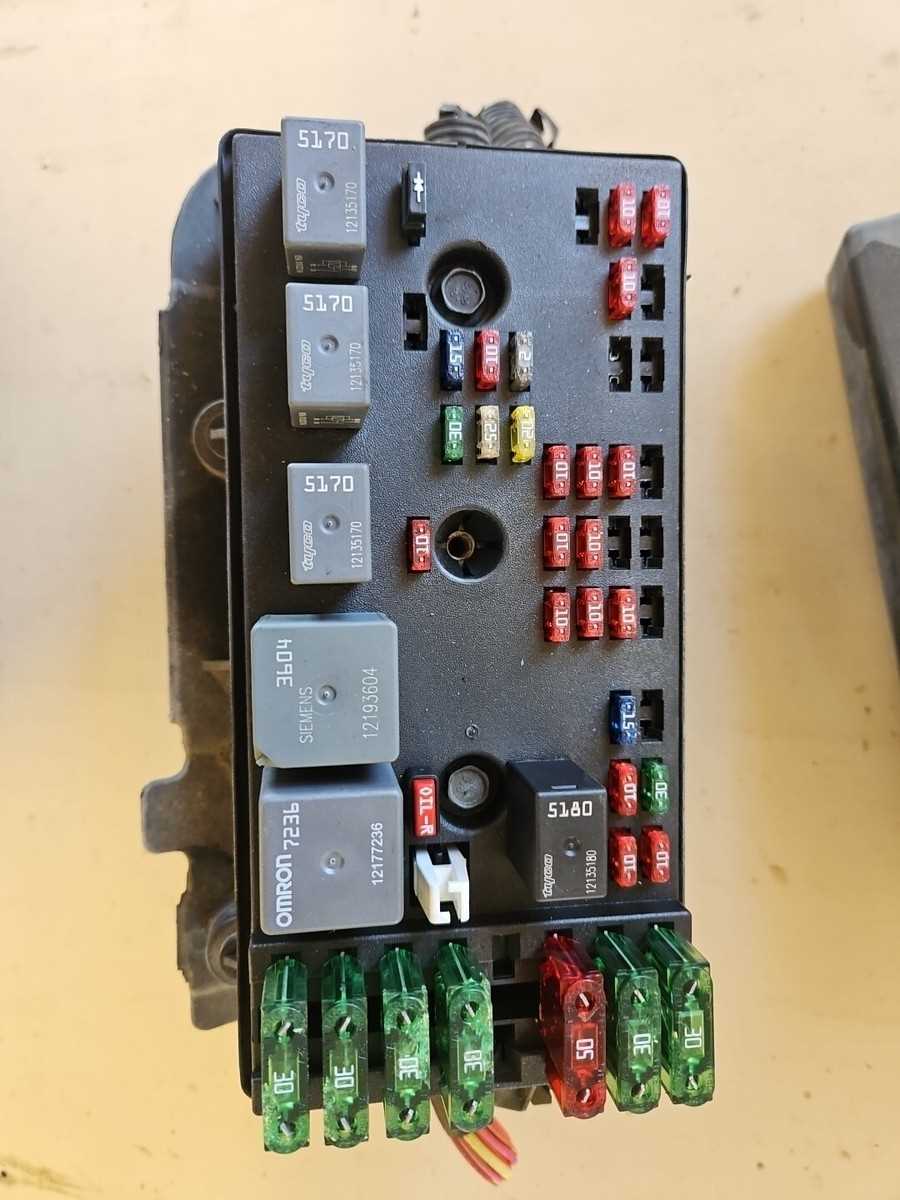

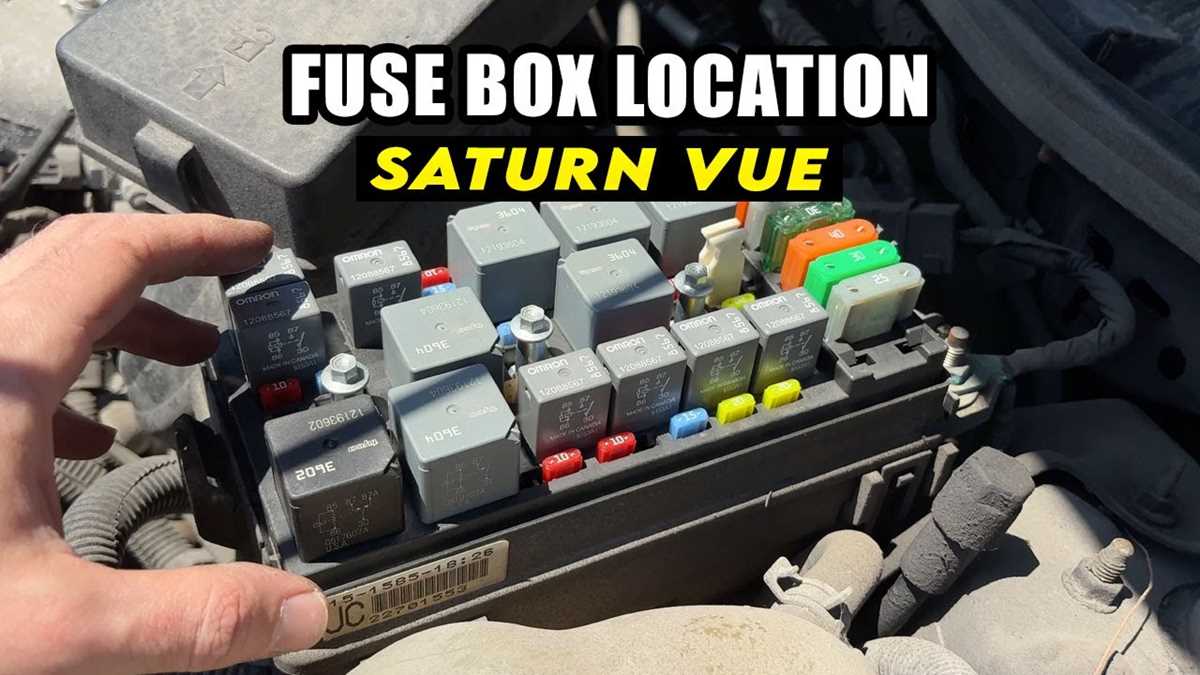

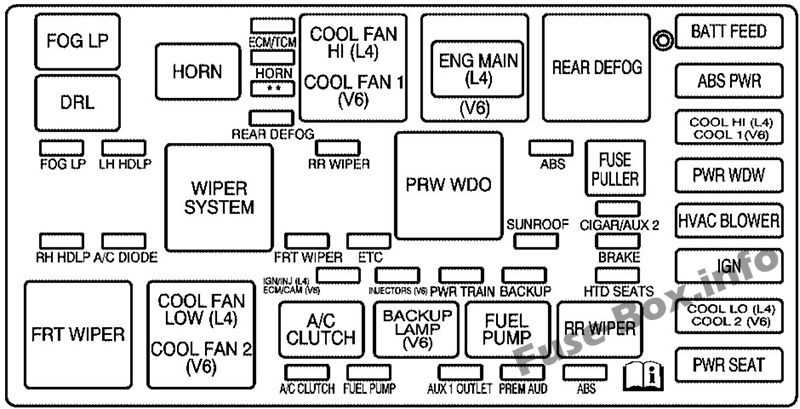

Under the hood, the power center contains higher amperage links and relays responsible for engine-related components. Cooling fans, ignition supply, and fuel delivery circuits are located here, with ratings often ranging from 30A to 60A. Using the correct rating protects wiring and maintains stable operation.
2001 Saturn SC1 Fuse Box Diagram with Panel Locations and Circuit Layout
Identify the correct panel by location and confirm slot numbers using the printed legend before handling any component, since interior and engine compartments manage separate electrical groups.
The interior distribution unit sits along the driver-side lower dash area and contains low to mid-range amperage circuits. Typical assignments include interior lamps, radio supply, gauge cluster, and accessory outlets. Each slot is numbered and aligned with a chart that simplifies locating a specific circuit.
The engine compartment power center houses high-load links and relay modules for systems such as cooling fans, ignition circuits, and fuel delivery. These positions use higher amperage ratings and require exact replacements, as mismatched values can lead to overheating or system malfunction.
How to match fuse numbers to specific circuits in a 2001 Saturn SC1
Read the numeric grid printed on the panel cover and align it with the physical slot layout before pulling any component, since each number maps directly to a protected circuit.
Each position inside the panel is marked with a small molded number. These numbers correspond to a legend listing functions such as lighting, ignition feed, or accessory power. Always match both the number and label to avoid disconnecting the wrong system.
Color coding helps confirm the correct amperage quickly:
- Red – 10A for control modules and sensors
- Blue – 15A for lighting and smaller loads
- Yellow – 20A for motors and accessory circuits
- Green – 30A for higher load components
Relays are larger square units placed near high-current slots and are labeled separately on the cover chart. Each relay controls switching for systems like cooling fans, fuel delivery, or headlamps.
To verify a relay assignment, check abbreviations printed inside the cover:
- IGN – ignition supply
- FAN – cooling system
- PUMP – fuel delivery
- ACC – accessory circuits
Cross-checking circuit function
Compare the printed legend with the vehicle manual if available, since abbreviations may vary slightly. This step helps confirm the exact system linked to each numbered slot.
Testing before replacement
Use a multimeter or test light on both terminals of the slot to confirm power flow. If voltage is present on only one side, the component is blown; if absent on both sides, inspect upstream wiring or relays.
