Locate the main power distribution panel under the driver’s side dashboard and identify each slot according to its labeled amperage. Use a 10-amp tester for circuits controlling interior lights and a 20-amp tester for those connected to the ignition system to verify continuity before replacing any blown element.
Label each circuit clearly using a permanent marker or adhesive tags to track replacements and prevent confusion during maintenance. Pay special attention to connectors that supply power to the HVAC system and audio modules, as misidentifying these can cause repeated electrical failures.
Use a structured approach when removing protective covers to avoid damaging clips or wires. Start with the top-left section and work clockwise, documenting amperage ratings and wire colors for each terminal. Keep a small tray for screws and fasteners to prevent loss during inspection or repair.
Test each conductor path individually with a multimeter before reinstalling components. Circuits controlling the fuel pump, lighting, and electronic modules should be confirmed for proper voltage under load conditions, ensuring stable operation across the vehicle’s electrical network.

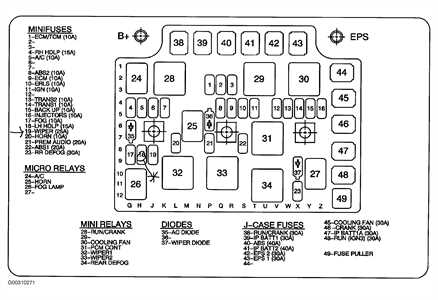

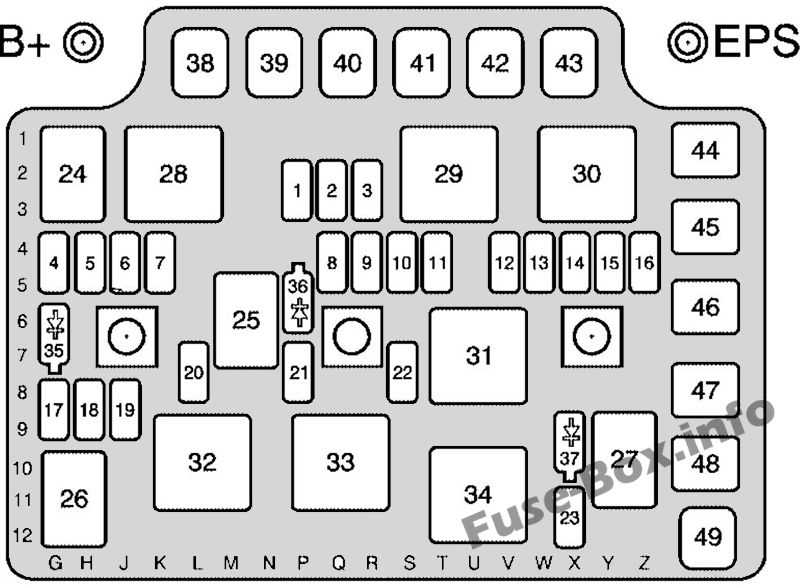

Location and Identification of Fuses in the 2000 Saturn SL2
Access the main electrical distribution panel beneath the driver’s side dashboard by removing the protective cover. Each slot is numbered and marked with its amperage rating for quick identification of circuits controlling critical systems such as ignition, lighting, and auxiliary power outlets.
Check the glove compartment panel for a secondary access point that houses additional circuits for climate control, audio modules, and instrument cluster connections. These are smaller in size but follow the same labeling convention for amperage and terminal function.
Use a color-coded reference chart to match the wire colors to their corresponding terminal positions. This reduces the risk of misidentifying a circuit, which can lead to repeated component failures or blown conductors.
Keep a small flashlight handy when inspecting slots at the back of the panel. Visibility is limited in these recessed areas, and incorrect placement of a replacement element can cause intermittent electrical issues or short circuits.
Document each slot you inspect using a small notebook or smartphone photo. Include amperage, wire color, and the circuit function to create a quick-reference guide for future repairs or testing procedures.
When handling live connectors, wear insulated gloves and avoid applying excessive pressure to the terminals. Most conductors are rated for 10–20 amps, and rough handling can damage the pins or break the circuit traces.
Perform a continuity test for each conductor path before reinstalling panels. Focus on critical circuits like engine control modules, brake lights, and fuel pump relays to ensure all connections are stable and power distribution is reliable across the vehicle.
Functions and Ratings of Each Fuse in the Fuse Box
Identify each circuit by its amperage rating before replacement. Low-amperage slots, typically 10–15 amps, control interior lights, turn signals, and dashboard indicators. Higher-rated slots, 20–30 amps, manage power to ignition, cooling fans, and fuel pump relays.
Label the terminal assignments for each conductor to avoid mixing circuits. Engine control modules and ABS systems rely on 15–20 amp circuits, while heated rear defrosters and auxiliary outlets are usually connected to 25–30 amp terminals.
Power Distribution to Accessories
Audio systems, power windows, and door locks draw from mid-range rated circuits. Check each slot’s amperage and confirm continuity with a multimeter before reinstalling components to prevent intermittent failures or blown conductors.
Critical Safety and Control Circuits
Brake lights, turn signals, and hazard lamps use lower-rated circuits to protect wiring harnesses from overload. Replace any damaged elements with exact amperage equivalents to maintain consistent voltage and avoid overheating.
Always double-check amperage versus manufacturer specifications when adding aftermarket components. Slots supplying power to cooling fans, fuel injectors, and ignition coils require stable ratings to prevent voltage drops and ensure reliable engine operation under load.
Steps for Replacing or Testing Fuses Safely
Disconnect the battery before handling any power terminals to prevent short circuits. Use insulated tools and wear protective gloves when removing or installing components.
Inspection and Testing Procedure
- Locate the specific slot using the labeled panel or reference chart.
- Visually inspect the element for a broken filament or discoloration indicating overheating.
- Use a multimeter set to continuity mode to confirm an open or closed circuit.
- Record amperage ratings and wire color codes to ensure correct reinstallation.
Replacement Steps
- Remove the defective element by gently pulling straight out to avoid bending terminals.
- Insert a new component of the same amperage rating into the correct slot.
- Reconnect the battery and test all circuits powered by the replaced component for proper operation.
- Reattach protective covers and verify all clips are secured to prevent vibration damage.
Regularly inspect critical circuits such as ignition, fuel pumps, and lighting to prevent unexpected failures. Maintaining a clear record of replacements helps track component health and avoids repeated electrical issues.
