Locate the relay and circuit protection layout under the dashboard on the driver’s side and inside the engine compartment to quickly identify blown elements and restore functionality without guesswork. The cabin-mounted panel typically handles lighting, audio system, and interior controls, while the under-hood unit manages ignition, cooling fans, and charging circuits. Match amperage ratings precisely–using a higher value risks wiring damage, while a lower one may cause repeated failures.
Inside the vehicle, access is gained by removing a small cover near the lower dash; each slot is labeled with abbreviated functions such as HVAC, radio, or courtesy lamps. Use a test light or multimeter to confirm continuity before replacement, since visual inspection alone can miss hairline breaks. In the engine bay, the distribution block is sealed with a snap-on lid; check for corrosion on terminals, especially in humid climates, as oxidation increases resistance and leads to intermittent faults.
For troubleshooting, correlate symptoms with specific circuits: loss of dashboard illumination often points to the interior panel, while non-operational cooling fans or starting issues trace back to the power distribution unit near the battery. Keep a printed layout reference in the glove compartment and note any previous modifications, such as aftermarket alarms or audio upgrades, which may alter original wiring paths and complicate diagnostics.
2000 Buick Century Fuse Box Diagram: Practical Identification and Troubleshooting Guide
Locate the primary electrical panel under the dashboard on the driver’s side and verify each circuit using the label on the cover rather than guessing; mismatched amperage inserts often lead to repeated failures. For lighting faults, check slots tied to exterior lamps and instrument illumination first, typically marked with low-amp ratings (10–15A). If power windows or locks stop responding, inspect mid-range rated positions (20–30A) and confirm continuity with a multimeter instead of relying on visual inspection alone.
When identifying a specific slot, match the symbol set printed inside the cover with the component behavior: HVAC issues correspond to blower motor protection, while ignition-related problems link to starter and control circuits. Remove each insert with a puller tool to avoid damaging contacts, then inspect for hairline breaks that are easy to miss. Corrosion on terminals can mimic a blown element, so clean contacts using electrical cleaner before installing a replacement. Always use identical amperage ratings; higher values may temporarily restore function but risk wiring damage and overheating.
Targeted Fault Isolation
If a circuit repeatedly fails, disconnect all devices on that line and reinstall a new insert, then reconnect components one by one until the fault reappears. This isolates short circuits caused by worn insulation or defective modules. For intermittent issues, gently wiggle harnesses near the panel while monitoring voltage drops. A stable reading near 12V indicates proper flow, while fluctuations point to loose connections or internal panel wear.
Panel Layout Interpretation
The layout typically groups systems by function: lighting, drivetrain control, interior electronics. High-current protections are positioned separately to reduce heat concentration. Understanding this arrangement reduces diagnostic time, allowing faster pinpointing of faults without dismantling large sections of the interior.
Exact Location of Interior and Under-Hood Fuse Boxes in the 2000 Buick Century with Access Steps

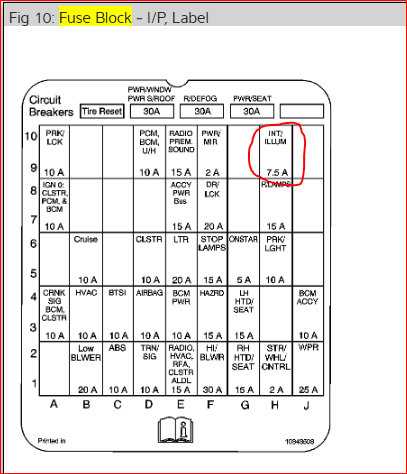

Open the driver-side door and inspect the left edge of the dashboard: the interior electrical panel is hidden behind a small rectangular cover facing the door frame. Use your fingers or a flat plastic trim tool to pry the panel outward; it snaps off without screws. The cover often includes a molded legend showing circuit assignments, which helps identify relays and blade components quickly.
For clearer access inside the cabin, adjust the steering wheel upward and slide the seat back. This creates enough space to kneel and work comfortably near the side dash. A flashlight is recommended because the panel sits slightly recessed, making labels difficult to read in low light conditions.
Steps to Reach the Cabin Panel
- Turn off ignition and remove the key completely
- Open driver door fully to expose side dashboard edge
- Locate seam of removable trim panel
- Pull cover gently from notch or edge
- Check label inside cover for circuit identification
The engine compartment electrical center is positioned on the passenger side, close to the battery. Look for a black plastic housing with a secure lid. It sits near the fender well and is clearly distinguishable by its rectangular shape and clipped top. Press the locking tabs inward and lift upward to remove the lid.
Inside the engine bay unit, larger relays and high-amperage links are arranged in rows. Unlike the interior panel, this one is exposed to heat and vibration, so ensure the cover is reseated firmly after inspection. Moisture or loose seating may lead to intermittent electrical faults.
Access Procedure for Engine Bay Unit
- Switch off engine and allow components to cool
- Open hood and secure it with the prop rod
- Locate plastic housing near battery
- Press side clips simultaneously
- Lift lid vertically without tilting
When removing or inspecting components in either location, use a puller tool or needle-nose pliers for better grip. Avoid excessive force; terminals can loosen or break. Always match amperage ratings exactly when replacing any element to prevent circuit damage.
After completing work, reinstall both covers securely: interior trim should snap flush with the dashboard, while the engine compartment lid must click into all locking points. A loose cover may allow dust or water intrusion, affecting electrical reliability over time.
