The pickup from the late nineties uses two main power centers: one near the battery for high-load circuits and another inside the cabin for lighting, gauges, audio, and accessory lines. Check the cover legend first; if it is missing or unreadable, match each position by amp rating, cavity number, and wire destination rather than by physical size alone. A 10A cavity usually protects smaller control circuits, while 30A and 40A positions are commonly tied to blower motor, ABS, rear window power, or main charging-related branches.
Pull the negative battery cable before touching any high-current slot, especially in the engine-bay unit where larger cartridge links sit close to metal brackets and primary harness feeds. For interior electrical faults, inspect the driver-side panel with a test light on both contact tabs; power on one side only points to a blown insert, while no power on either side usually means the fault is upstream at the relay center, ignition feed, or a damaged ground.
If the horn, hazard lamps, stop lamps, or heater fan stop at the same time, do not swap random relays. Read the cavity markings, confirm the correct amp value, and trace the affected branch by function group. This saves time and prevents melted wiring caused by installing a higher-rated insert than the circuit was designed to carry. For repeated failure, suspect a short to ground in trailer wiring, aftermarket radio splices, fog lamp add-ons, or worn insulation near the firewall pass-through.

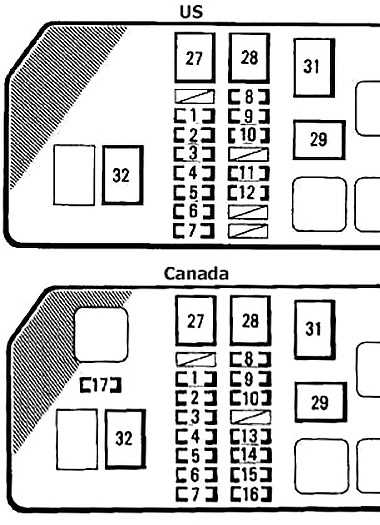

Cabin and engine-bay panel map: exact slot positions, amp values, and fault-check points
Check the driver-side interior panel first: the slot marked GAUGE is usually 10A and is the first place to inspect if the cluster, warning lamps, turn indicators, or reverse lamps stop working together. For a no-crank complaint with normal headlamps, inspect AM1 at 40A in the under-hood power center and IGN at 7.5A inside the cabin. For dead horn and missing dome lamp at the same time, test DOME at 15A before chasing wiring.
The interior panel is typically mounted behind the lower dash trim on the driver side. The engine-bay power center sits near the battery and contains the high-current links for charging, cooling, lighting, and ignition feed. Use a multimeter, not only visual inspection: a strip can look intact and still show voltage on one side only. With key ON, both test points on each blade should read battery voltage; with key OFF, only always-live circuits such as STOP, HAZ, or DOME should carry power.

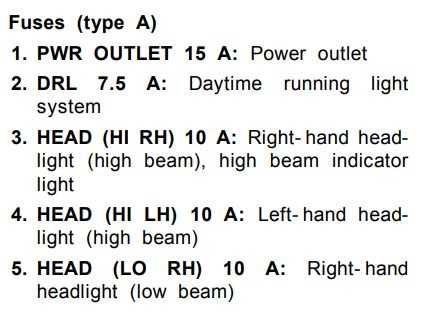

- Driver-side interior panel, common cavities:
- GAUGE – 10A – cluster, charge lamp, turn signal indicator logic
- CIG – 15A – power outlet, lighter socket
- RADIO – 15A – head unit memory/feed
- DOME – 15A – interior lamp, clock memory, key reminder
- ECU-IG – 15A – control module ignition feed
- TURN – 10A – direction indicators
- WIPER – 20A – front wiper motor and washer logic
- HEATER – 10A or 15A depending on trim – HVAC control side
- STOP – 15A – brake lamps and stop-light switch feed
In the engine compartment, the heavy circuits matter most during total power loss, charging failure, or repeated lamp burnout. A truck that runs but will not recharge often points to ALT around 100A. Cooling fan, blower, and rear glass circuits may use separate high-current links depending on cab and market configuration. If low beams fail while high beams still work, inspect the dedicated headlamp feeds instead of replacing bulbs first.

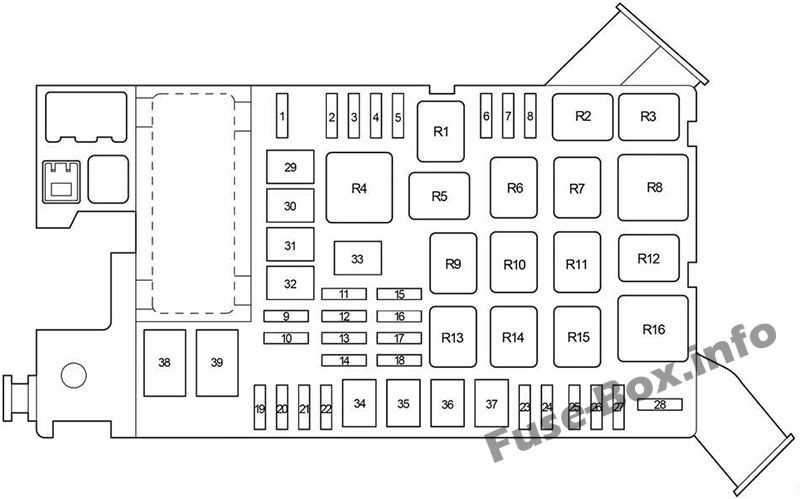

- Under-hood power center, common positions:
- ALT – 100A – charging path from alternator to battery
- AM1 – 40A – ignition switch main supply
- AM2 – 30A – secondary ignition/start feed on some versions
- HEAD – 40A – exterior front lighting main feed
- EFI – 15A – injection and engine control power
- HORN – 10A – horn relay/control side
- A/C – 10A – compressor clutch control and HVAC request path
- TAIL – 15A – parking lamps, plate lamps, marker lamps
- ST – 7.5A or 10A – starter control circuit on selected layouts
Use fault pairing to cut diagnosis time. No dash indicators, no charging lamp, and no wipers usually means GAUGE or AM1. No brake lamps but hazard flashers still work usually means STOP, not the flasher unit. Radio memory loss after every key cycle points to DOME or RADIO, depending on audio wiring version. A crank-no-start with no injector pulse but normal starter action often traces to EFI or ECU-IG. Repeated failure of the same link after replacement usually means a short to ground downstream: rubbed insulation near the steering column, trailer harness splices, aftermarket stereo leads, and lamp sockets with corrosion are common sources.
- Fast troubleshooting points:
- Probe both tiny metal pads on top of each blade with a test light
- Measure voltage drop across the link under load; more than a few tenths suggests heat damage
- Inspect female terminals for looseness if a new insert runs hot
- Check for battery voltage at AM1 before blaming the ignition switch
- On lighting faults, inspect ground eyelets near radiator support and rear frame rail
- On cabin electrical loss, inspect the driver kick-panel harness for chafing
Do not increase amperage to “make it hold.” A 10A cavity taking a 15A insert may keep the circuit alive long enough to melt insulation or damage the switch contacts. Match the printed rating exactly, then isolate the load by unplugging branches one at a time: lamp assemblies, blower motor, cigarette socket, radio, trailer converter, and wiper motor. When the overload disappears, the last disconnected branch is the suspect leg.
For restoration work or panel cover loss, label each cavity during testing: constant battery feed, key-on feed, lighting feed, and motor feed. That method works better than relying on faded plastic markings. The most productive sequence is battery voltage check, main links in the engine bay, cabin panel continuity, power-in/power-out on the affected cavity, then downstream connector checks at the failed component. This order prevents wasted time and usually exposes the bad section within a few minutes.
