Locate the primary power distribution board under the dashboard on the driver’s side to quickly identify the allocation of circuits. Labeling on the cover provides direct references for headlights, ignition, and interior electronics, reducing trial-and-error when troubleshooting.
For auxiliary modules, check the secondary panel near the engine compartment. Each slot corresponds to a distinct system such as the cooling fan, horn, or fuel pump, and visual inspection can reveal blown links immediately.
Maintain a small tester or continuity tool to verify current paths without removing multiple connectors. Consistent mapping of the connectors prevents accidental shorts and simplifies replacing defective elements without consulting a manual repeatedly.
Use the printed schematic on the inside of the fuse cover to match amperage ratings with the proper circuit. Overrating can damage wiring, while underrating leads to repeated interruptions in electrical supply.
For night or low-light inspections, attach a portable light near the panels. Clarity of circuit layout improves efficiency when replacing elements or diagnosing intermittent faults in dashboard components or under-hood modules.

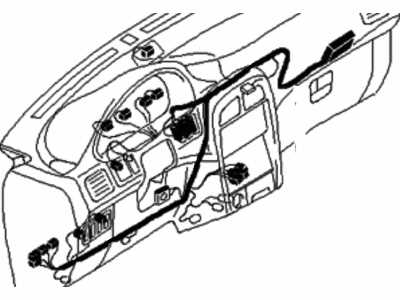

1996 Kia Sportage Fuse Diagram
Locate the power distribution panel beneath the dashboard on the driver’s side to access the electrical protection map. Each slot corresponds to a specific circuit such as headlights, ignition, or the cabin blower, with amperage ratings printed on the cover for quick reference. Check for burnt contacts by inspecting the metallic strip inside each holder and replace any damaged links with the exact rating to prevent overloads.
Under the hood, a secondary protective board controls major components like the fuel pump, cooling fans, and ABS module. The arrangement is compact, but each circuit is labeled clearly, typically with a number corresponding to the printed chart on the inside cover. When troubleshooting a malfunctioning accessory, trace the connector visually to its slot, confirming continuity with a multimeter to pinpoint the faulty link.
For long-term reliability, maintain a small toolkit including spare connectors of various amperages and a clip remover to safely extract links without bending terminals. Clean the panel contacts periodically with electrical cleaner to avoid corrosion, especially in humid climates. Detailed reference guides are often included in the owner’s manual, showing the exact placement of each slot for faster identification during repairs or upgrades.
Locating the Fuse Box Inside Your 1996 Kia Sportage

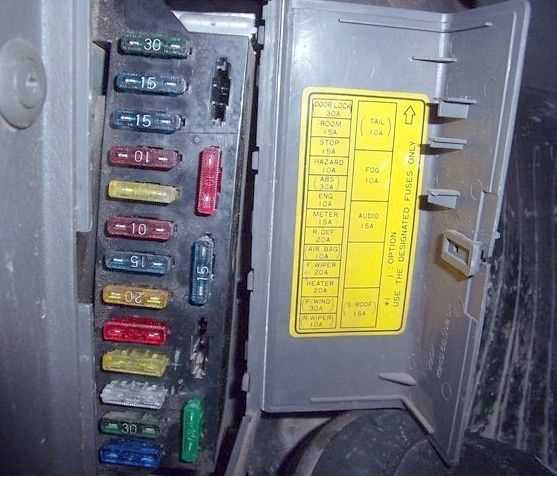

Check under the dashboard on the driver’s side near the left kick panel. Slide the panel downward and outward to reveal a rectangular access cover. Behind this cover, you will find a compact panel holding all circuit protectors for interior and auxiliary systems.

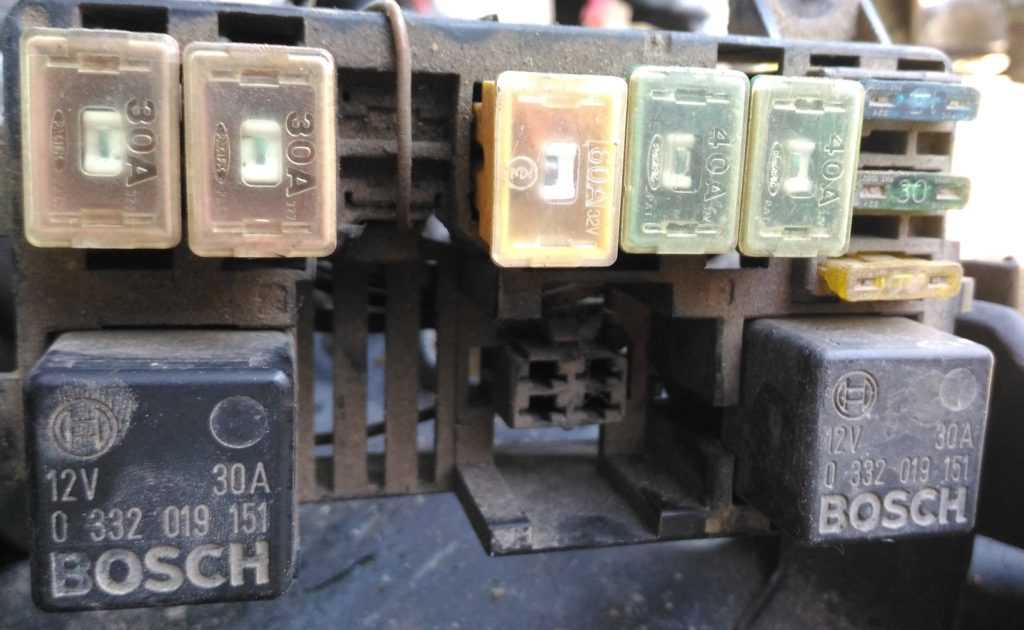

Another access point exists beneath the hood on the passenger side near the battery. Lift the black plastic lid marked with electrical symbols. Inside, rows of miniaturized switches are organized in two tiers. Each slot is labeled with numbers and abbreviations corresponding to specific vehicle components, such as lights, wipers, or the ignition system.
For clarity, follow these steps:
- Turn off the ignition and disconnect the negative terminal to avoid shorts.
- Remove the interior cover by pulling gently toward yourself.
- Lift the under-hood lid by unclipping the fasteners along the perimeter.
- Use the printed layout on the inside of the cover to identify each circuit holder.
- Replace or inspect as needed, making sure each connector seats firmly.
