Check the driver side lower dashboard first, as the main electrical block is mounted behind a plastic cover near the steering column. Use a multimeter to confirm voltage at each slot before removing any protective link, and match the amperage value stamped on top.
This truck uses a central power distribution unit inside the cabin and an additional block in the engine compartment for high load circuits. A printed circuit layout is usually attached to the cover, showing slot numbers and connected systems such as headlights, wipers, and ignition.
Amperage ratings typically range from 5A for small electronics to 30A for motors and accessories. If a circuit stops working, inspect both the link and surrounding contacts for heat damage or looseness, as older wiring can degrade over time.
Access panels are secured with clips or screws and can be removed without special tools. Keep spare links in common ratings along with a basic tester to restore power during roadside checks.

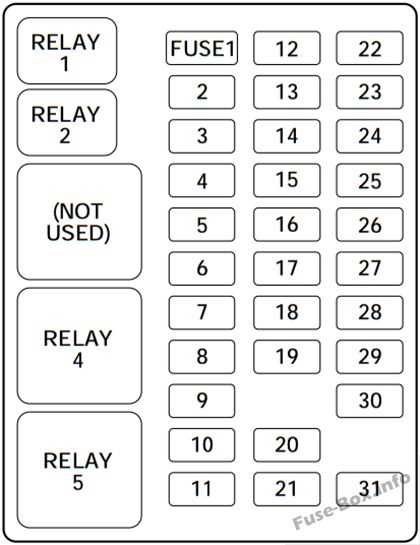

1994 Ford F150 Fuse Diagram and Circuit Identification
Match each slot in the cabin and engine bay power distribution units with its assigned circuit using the layout printed on the covers, then verify voltage with a multimeter before removing any protective link.
The cabin block handles lighting, radio, and dashboard controls, while the engine compartment unit manages high load systems such as ignition, cooling fans, and charging circuits. Typical ratings range from 5A for small electronics up to 30A or more for motors.
Identify each circuit by slot position, amperage marking, and wire color. Red wires usually indicate constant power, while other colors correspond to switched or accessory lines. If markings are faded, trace wiring harness routes to confirm connections.
Voltage testing and fault isolation
Check both input and output sides of each slot using a test light. If power is present on one side only, replace the protective link with the same rating and inspect terminals for looseness or corrosion.
Common circuit groups
Group circuits by function to speed up troubleshooting: lighting systems, accessory lines, ignition-related components, and motor-driven units. This approach helps isolate faults without checking every slot individually.
Exact location of fuse box under dashboard and engine bay layout
Look under the driver side dashboard near the steering column, as the main cabin power distribution block is mounted against the lower dash frame just above the brake pedal area.
Move the seat back and use a flashlight to identify the rectangular unit with multiple slots and wiring harnesses connected from behind. It is partially hidden by trim but accessible without removing major components.
Remove the protective cover by releasing clips or unscrewing fasteners. Keep the ignition off before accessing any electrical connections.

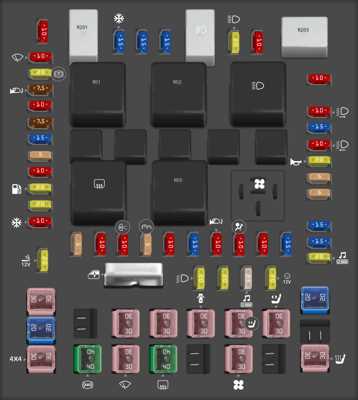

In the engine compartment, locate the secondary power distribution center near the battery on the driver side. It is enclosed in a black plastic housing designed to protect high load circuits from moisture and debris.
Open the engine bay unit by pressing side tabs and lifting the lid. Inside, you will find larger capacity links and relays assigned to systems such as cooling fans, charging, and ignition.
Follow these steps for safe access:
- Turn off ignition and remove key
- Disconnect battery if inspecting multiple circuits
- Use proper lighting to read slot markings
- Avoid pulling links without checking voltage first
- Reinstall covers securely after inspection
Both locations are positioned for quick maintenance, allowing direct access to electrical protection components without removing major assemblies.
